BluePrint BP35512CT1 GM 355 Base Engine, Alum Heads, Flat Tappet Cam
350 Chevy Small Block V8, 355 cu. in. Engine Displacement, Long Block Crate Engine Type
- This item ships directly from the manufacturer. It may take an additional 30 business days for BluePrint Engines to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!
GM 355 Base Engine - Aluminum Heads - Flat Tappet Cam
- HP & Torque: 375 HP / 400 FT LBS
- Compression Ratio: 10.0:1
- Aluminum Heads
- Hypereutectic Pistons
- Flat Tappet Cam
- Cast Steel Crank
- Part #: BP35512CT1
- 4-bolt main, 1-piece rear main seal
- Passenger side dipstick
- Align honed main bearing bore
- Cylinders honed on computer controlled machine to within .0002 straightness and roundness
- Cylinders are sonic tested for thickness
- BluePrint premium cast steel crankshaft
- Hypereutectic pistons
- Chevy heavy beam rods with 150,000 PSI bolts
- Hastings moly rings
- Melling high volume oil pump
- Hydraulic flat tappet cam
- Heavy duty double roller timing set
- BluePrint Performance Aluminum
- Hardened retainers and springs
- 2.02 swirl polished intake valves
- 1.60 swirl polished exhaust valves
- BP Aluminum Head Part# H8002K
- Cam Type: Flat Tappet
- .480 Intake .486 Exhaust
- 229 Intake / 230 Exhaust duration
- @ .050
- 34 Degrees total at 3500 rpm
- New valve covers
- Oil pan
- Timing cover
- Brass freeze plugs
- Dyno test results shipped with engine
- 30 month / 50,000 mile

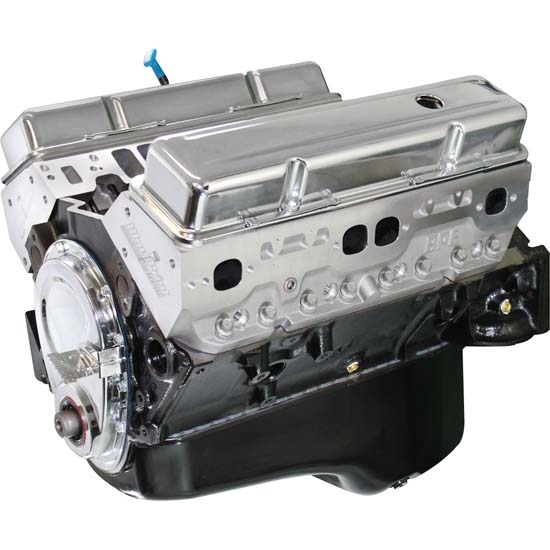

Picture shown with optional tall, perimeter bolt valve covers.This engine requires a non weighted harmonic balancer, and a late 350 (for 1 piece rear seal) weighted flexplate/flywheel.If you are using an automatic transmission, BluePrint Engines recommends a 2000-2400 rpm stall converter.
Warranty Information (PDF)
NotesZinc Additive Required For Flat Tappet Application, Recommended Oil For Your BluePrint Crate Engine: 10W30, Non-Synthetic. Not For EGR
