#227BP3313CTF

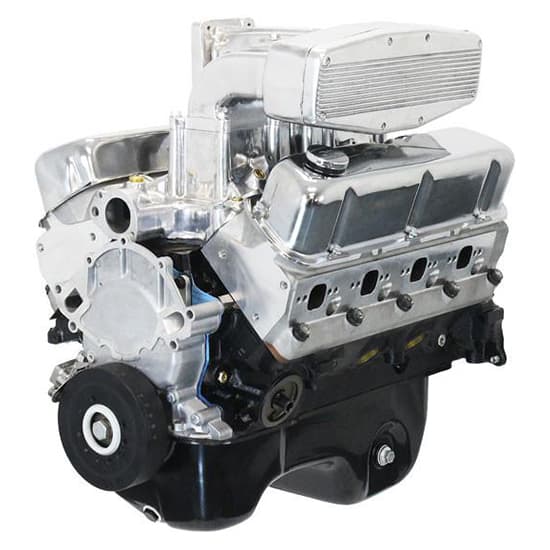

BluePrint BP3313CTF Ford 331 Stroker, Dressed Engine, Alum Heads
Discontinued
This item is currently not available
Shop all BluePrint Ford Crate Engines
Key Specs
| Crate Engine Type | Long Block |
| Engine Displacement | 331 cu. in. |
| Horsepower | 375 horsepower |
| Compression Ratio | 9.7:1 |
| Torque | 405 ft./lbs. |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBluePrint Engines BP3313CTF Details
BluePrint Engines BP3313CTF Details
True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!
Ford 331 Stroker - Dressed Engine - Aluminum Heads - Roller Cam
Overview
- HP & Torque: 375 HP / 405 FT LBS
- Compression Ratio: 9.5:1
- Aluminum Heads
- Forged Pistons
- Roller Cam
- Cast Steel Crank
- Part #: BP3313CTF
Block
- Hand picked 2 bolt seasoned 1986-1995 302 block
- Square and parallel decked
- Align honed main bearing bore
- Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Rotating Assembly
- New cast steel crankshaft
- New forged I-beam rods
- Forged pistons
- Hastings Moly rings
- Rotating assembly balanced to within 2 grams
- Melling high volume oil pump
- Hydraulic roller camshaft
- Cloyes double roller timing chain
- Camshaft is degreed to ensure maximum horsepower
Cylinder Heads
- BluePrint Performance Aluminum
- Hardened retainers and springs
- 2.02 swirl polished intake valves
- 1.60 swirl polished exhaust valves
- BP Aluminum Head Part# HP9008
Cam Specs
- Cam Type: Roller
- .543 Intake .554 Exhaust
- 218 Intake / 226 Exhaust duration
- @ .050 - 112 degree lobe separation
Ignition Timing
- 34 Degrees Total at 3500
Also Includes
- Fuel injected intake manifold for 1986 - 1993 Mustang
- Timing cover and valve covers
- Dual sump oil pan
- Brass Freeze Plugs
- Dyno tested “ and shipped with results
Warranty
- 30 month / 50,000 mile
Notes
BluePrint Engines recommends a 2000- 2400 rpm stall converter.
Warranty Information
Click for details
Warranty Information
Click for details
Warranty Information (PDF)
BluePrint Engines BP3313CTF Specifications
BluePrint Engines BP3313CTF Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | BP3313CTF |
| Brand | BluePrint Engines |
| Crate Engine Type | Long Block |
| Engine Displacement | 331 cu. in. |
| Horsepower | 375 horsepower |
| Compression Ratio | 9.7:1 |
| Torque | 405 ft./lbs. |
| Camshaft Type | Hydraulic Roller Tappet |
| Cylinder Head Material | Aluminum |
| Piston Material | Forged Aluminum |
| Crankshaft Material | Cast Steel |
| Camshaft Duration (.050 in) | 218° intake / 226° exhaust |
| Camshaft Lift (in) | .543 intake / .554 exhaust |
| Bore x Stroke (in) | 4.000" bored .040 over x 3.400" |
| Intake Manifold Included | Yes |
| Distributor Included | No |
| Valve Covers Included | Yes |
| Cylinder Heads Included | Yes |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | No |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| GENERAL | |
| Warranty | 30 month / 50,000 miles |
| Assembled | Yes |
| Camshaft Included | Yes |
| Block | Hand picked, seasoned, square and parallel decked, 2 bolt main |
| Notes | ="Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic 1986 - 1993 Mustang Replacement, Must have Mass Air. 94-95 MUSTANG REQUIRES INTAKE ELBOW ADAPTER. If using with a manual transmission, an Equalizer Bar Bracket must be purchased - no |
