Product Summary

  • Has a 13" diameter and is 7" wide
  • Ideal for Pony Stock, Mini Stock, and Legend Cars
  • Its lightweight design means that it only weighs 13 lbs.
  • Features a 4 on 4-1/2 Inch Bolt Pattern and is available in a 2" or 3" backspace
  • Made from durable steel with a powder coated finish for added protection and enhanced looks
See more details

Key Specs

MFG. Part #
Wheel Diameter13 Inch
Width7"
Wheel Bolt Pattern (in.)4x4.5 in.
Wheel Bolt Pattern (mm)4x114.3 mm
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Details

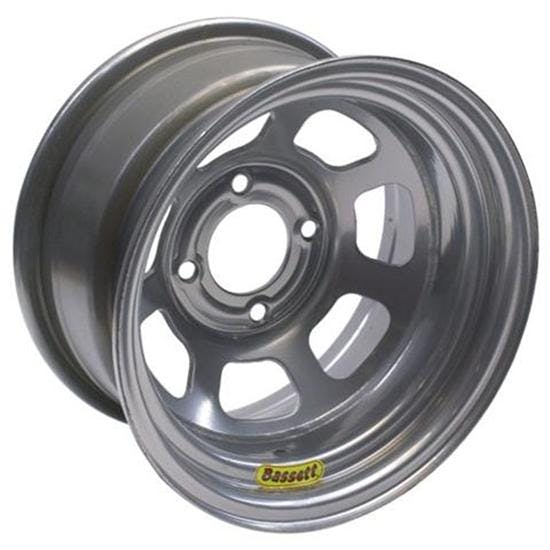

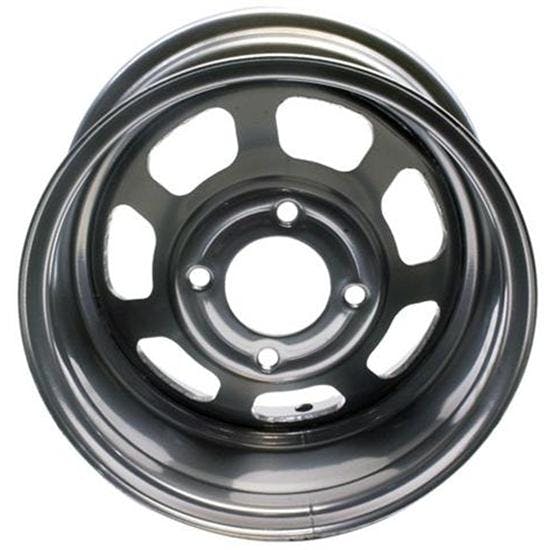

Pony/Mini Stock Bassett steel 13 inch racing wheels are the wheel of choice for Pony/Mini Stock and Legend cars. 4 on 4-1/2" bolt pattern. 2" and 3" backspacing. These 4 lug wheels are offered in silver.

  • 13 Inch Wheel
  • 4 on 4-1/2 Inch Bolt Pattern
  • 2" and 3 " Backspace
  • For Pony Stock, Mini Stock, and Legend Cars
  • Silver

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article. Racing Wheel Principles.

For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Specifications

KEY SPECS
MFG. Part #
BrandBassett
Wheel Diameter13 Inch
Width7"
Wheel Bolt Pattern (in.)4x4.5 in.
Wheel Bolt Pattern (mm)4x114.3 mm
Wheel Backspace
Wheel Material TypeSteel
Wheel Offset
Wheel Backspace Range
FinishPowder Coated
ColorSilver
Beadlock IncludedNo
Material TypeSteel
Bolt Pattern4 on 4.5"
Diameter13"
GENERAL
Sold in QuantityEach
DOT-ApprovedNo
Wheel Center FinishPowder Coated
Wheel Rim FinishPowder Coated
Weight13 lbs.
Valve Stem IncludedNo
Lug Nut Seat Style45 Degree Conical
Center Cap IncludedNo
Lug Nuts IncludedNo
BeadlockNo

Questions & Answers

2 Questions • 2 Answers

What is the diameter of the center hole?

by Eddir

• 9 years ago

1 answer

what is the physical dimensions on a 13x7 rim ??? width is what i need outside to outside measurment of the rim itself bead to bead

by Mike

• 15 years ago

1 answer

2 of 2 questions shown
