#27858AC1IRB
$108.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle

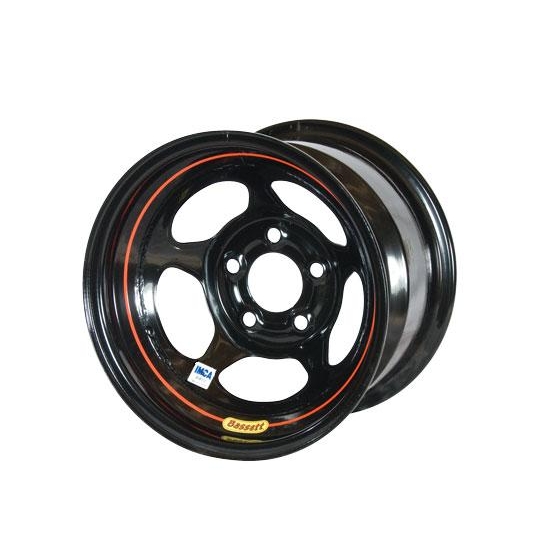

| MFG. Part # | 58AC1IRB |
| Wheel Diameter | 15 Inch |
| Width | 8" |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFor offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.
For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.
| KEY SPECS | |
|---|---|
| MFG. Part # | 58AC1IRB |
| Brand | Bassett |
| Wheel Diameter | 15 Inch |
| Width | 8" |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Wheel Backspace | 1" |
| Wheel Material Type | Steel |
| Wheel Offset | -89 mm |
| Wheel Backspace Range | 1.000" - 1.999" |
| Finish | Powder Coated |
| Color | Black |
| Beadlock Included | No |
| Material Type | Steel |
| Bolt Pattern | 5 on 4.75" |
| Diameter | 15" |
| GENERAL | |
| Sold in Quantity | Each |
| DOT-Approved | No |
| Weight | 19 lbs. |
| Valve Stem Included | No |
| Lug Nut Seat Style | 45 Degree Conical |
| Center Cap Included | No |
| Lug Nuts Included | No |
| Beadlock | No |
