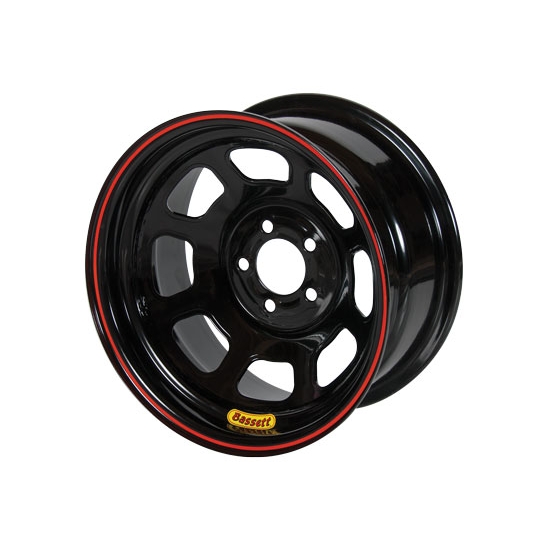

Bassett 52SF5B 15X12 D-Hole Lite 5x4.5 5 Inch BS Beaded Wheel

#27852SF5B

Bassett 52SF5B 15X12 D-Hole Lite 5x4.5 5 Inch BS Beaded Wheel

15x12"
5x4.5"
5" Backspace

Backspace / Color:

5 Inch / Black / Beaded

2 Inch / Black / Beaded 3 Inch / Black / Beaded 4.5 Inch / Black 4.5 Inch / Chrome 4 Inch / Chrome 5.5 Inch / Black5 Inch / Chrome 5 Inch / Black / Beadlock

$159.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 15 Inch Wheel Diameter, 12" Width, Black

15x12"
5x4.5"
5" Backspace

See more details

Key Specs

MFG. Part #	52SF5B1
Wheel Diameter	15 Inch
Width	12"
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Bassett 52SF5B1 Details

The classic Bassett Racing Wheel D-Hole center design is combined with the 15" diameter lightweight spun form rim shells and available in a variety of widths from 7" to 14" wide. Bassett produces the strongest, lightest and truest steel wheel shells on the market using its three in-house CNC metal spinning lathes. Lightweight and low runout (under .030") thanks to spun-form wheel shells produced in-houseReinforced torque ring and forged coining on center increases durability. The 5/8" valve stem hole is located behind the center to avoid clippingLarger D-holes are designed to facilitate handling and lower pit stop times.

Bassett 52SF5B1 Specifications

KEY SPECS
MFG. Part #	52SF5B1
Brand	Bassett
Wheel Diameter	15 Inch
Width	12"
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Wheel Backspace	5"
Wheel Material Type	Steel
Wheel Backspace Range	5.000" - 5.499"
Finish	Powder Coated
Color	Black
Beadlock Included	No
Material Type	Steel
Bolt Pattern	5 on 4.5"
Diameter	15"

GENERAL
Sold in Quantity	Each
Lug Nut Seat Style	45 Degree Conical
Beadlock	No
