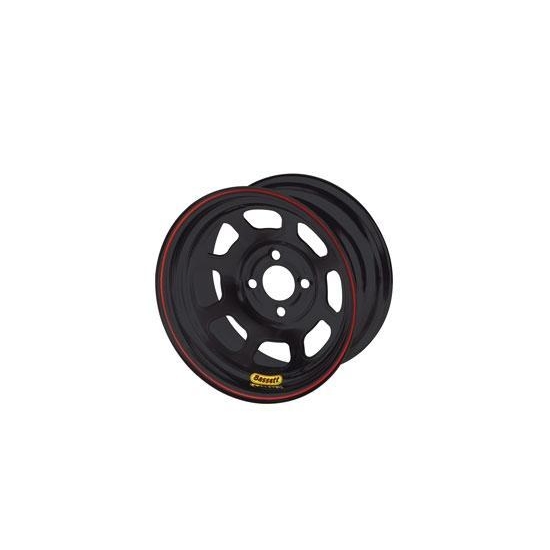

Bassett 47S43 14X7 D-Hole 4 on 4 3 Inch Backspace Black Wheel

#27847S43

Bassett 47S43 14X7 D-Hole 4 on 4 3 Inch Backspace Black Wheel

Name: Bassett 47S43 14X7 D-Hole 4 on 4 3 Inch Backspace Black Wheel
Brand: Bassett
SKU: 27847S43
Price: 103.99 USD
Availability: InStock

Write a Review

1 Question

Backspace / Color:

3 Inch / Black

1 Inch / Black 2 Inch / Black 2 Inch / Silver3 Inch / Chrome 3 Inch / Silver 4 Inch / Black 4 Inch / Silver

$103.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

14 Inch Wheel Diameter, 7" Width, 3" Wheel Backspace

See more details

Key Specs

MFG. Part #	47S434X7
Wheel Diameter	14 Inch
Width	7"
Wheel Bolt Pattern (in.)	4x4 in.
Wheel Bolt Pattern (mm)	4x101.6 mm

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

For offroad use only. The following must be considered when using Bassett wheels for on highway/street use when the wheel/tire assembly is being balanced. Bassett wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Bassett 47S434X7 Details

Bassett expanded our D-Hole Lightweight line of wheels for FWD and mini-stock cars that use a 4 bolt or 5 bolt pattern hub hat/rotor and run a 14" tire. We combine our NASCAR-proven 8 D-Hole center with a lightweight, CNC spun-form rim shell to create the highest quaility, fastest 14 x 7 and 14 x 8 FWD and mini-stock steel race wheel available. Lightweight and low runout (under .030") thanks to spun-form wheel shells produced in-house. Reinforced torque ring and forged coining on center increases durability. The 5/8" valve stem hole is located behind the center to avoid clippings.

PLEASE NOTE: Bassett Racing Wheels are lug-centric, which means the wheel is constructed and trued off of the bolt circle. The center hub bore hole can not be used to balance Bassett Racing Wheels. We recommend using an experienced tire mounter with a bolt pattern adapter plate that allows for balancing off of the bolt circle. Bassett Racing Wheels also require 45 degree chamfer lug nuts.

Bassett 47S434X7 Specifications

KEY SPECS
MFG. Part #	47S434X7
Brand	Bassett
Wheel Diameter	14 Inch
Width	7"
Wheel Bolt Pattern (in.)	4x4 in.
Wheel Bolt Pattern (mm)	4x101.6 mm
Wheel Backspace	3"
Wheel Material Type	Steel
Wheel Offset	-25 mm
Wheel Backspace Range	3.000" - 3.499"
Finish	Powder Coated
Color	Black
Beadlock Included	No
Material Type	Steel
Bolt Pattern	4 on 4"
Diameter	14"

GENERAL
Sold in Quantity	Each
Beadlock	No
