Basic 1923 T-Bucket Frame Kit w/ Deluxe Body, Channeled Floor

#7153021

Basic 1923 T-Bucket Frame Kit w/ Deluxe Body, Channeled Floor

Name: Basic 1923 T-Bucket Frame Kit w/ Deluxe Body, Channeled Floor
Brand: Speedway Motors
SKU: 7153021
Rating: 5 (1 reviews)

1 Review

1 Question

Body Type:

2) Deluxe Body

1) Standard Body

Floor Type:

3) Channeled Floor

1) No Floor 2) Unchanneled Floor

Spindles:

Select a spindles

Suspension:

Select a suspension

Starting from

$4,528.99

/kit

Made to Order

$4,620.98

Save $91.99

Quantity

Need Help? Call to Order

Add to a list

MFG. Part #	Select Body Type, Floor Type, Spindles and Suspension
Brand	Speedway Motors

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

If ordering the body kit without a floor (715-3001), please note that the door will not be hung. If you order a body kit with a floor (715-3011 or 7153021), the door will be fitted & hung on its hinges before shipping.

Frame Assembly

1-1/2 X 3" Rectangular steel tube frame with 102" wheelbase
3" O.D. round tube front crossmember
Spring-behind front suspension with 4" drop tube axle and hairpin radius rods
Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
Coil spring rear suspension with panhard bar
Cross Steering with Vega steering box
Frame assembly includes: front spring, axle, spindles, rear coil springs, rear shocks, and panhard bar; front and rear radius rods; Vega steering box with pitman arm; master cylinder, bracket and pedal
Available with plain or chrome suspension components

Deluxe Body

Rugged fiberglass body
Hinged right hand door
Flat, smooth firewall
Molded-in flat dash
Body lip around top edge to attach upholstery
One-piece 20" T pickup bed
Channeled floor

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Details

It doesnt get any simpler than this! Our most basic T-bucket frame is engineered for a simple and economical coil spring rear suspension with traditional-style radius rods. The front suspension is our time-tested transverse-leaf, spring-behind-axle setup with hairpin-style radius rods. Designed for the do-it-yourselfer, this frame has no front shock mounts - you can fabricate your own or choose from those offered by Speedway!

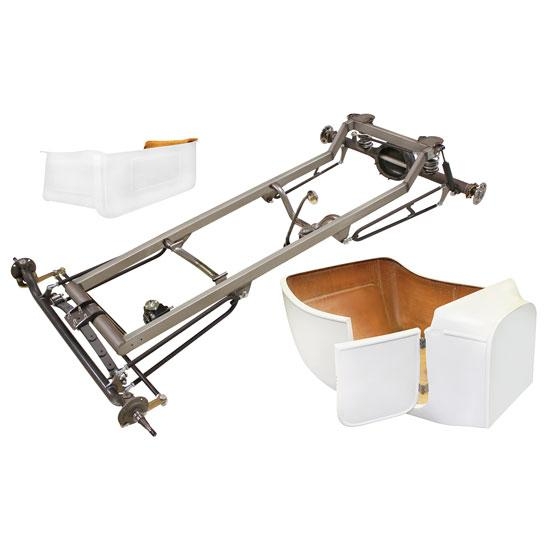

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

Rear Axle Housing Option:

Part# 715700 - Speedway Ford 9 Inch Rear Axle Housing Kit for T-Bucket Chassis, 31-Spline, 56 Inch Width.

Includes an all-new housing, tubes and new-style big Ford ends, lifetime warranty, 31-spline axles with dual bolt pattern (5 on 4.5" and 5 on 4.75") and new axle bearings.
Necessary suspension brackets will be welded to the housing, according to which chassis you order.
Option is only available with the purchase of a T-Bucket frame.
Center section NOT included.

Engine / Transmission Crossmember options available:

Part# 715500 - Small Block Chevy and TH350 Auto Trans Mount Option For T Frame Kit

This T frame kit option includes tubular engine and transmission crossmembers welded into a '23 or '27 T-Bucket frame. Will accept S/B Chevy engine and TH-350 or TH-400 transmissions.

Part# 715600 - Small Block Ford and C4 Auto Trans Mount Option for T Frame Kit

This T-frame option will include tubular engine and transmission crossmembers welded into your '23 or '27 T-Bucket chassis. Will accept S/B Ford engine and C-4 transmission only.
Due to clearance issue with the Vega steering box, you will need to either remote mount the oil filter or make use of the 90 degree oil filter adaptor # 910-6880.

Note: When ordering either of these options with a T-Bucket frame kit, the frame will be shipped with these crossmembers welded to it. As such, this engine/transmission crossmember option must be ordered with a T frame kit. This is not available separate of a T frame kit.

This item requires a 3-4 week build time.

Cancellation Policy Notice

Please note that any order canceled after submission but prior to shipment will incur a $200 cancellation and restocking fee.

Item Details

Frame Assembly

1-1/2 X 3" Rectangular steel tube frame with 102" wheelbase
3" O.D. round tube front crossmember
Spring-behind front suspension with 4" drop tube axle
Urethane-bushed front four bars and panhard bar
Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
Combination headlight and front shock mounts
Innovative triangulated four-bar rear suspension with urethane bushings and coilover shocks
Cross steering with Vega steering box
Frame assembly include: front spring, axle, spindles, and panhard bar; rear coilover shocks and panhard bar; front and rear four bars with urethane bushings; Vega steering box; master cylinder, bracket and pedal
Available with plain or chrome suspension components

Deluxe Body Part# 7152556

Rugged fiberglass body
Hinged right hand door
Flat, smooth firewall
Molded-in flat dash
Body lip around top edge to attach upholstery
One-piece 20" T pickup bed
Available with no floor

Body Dimensions

Total Length: 52"
Firewall Width: 26.5"
Body Width: 45"
Body Height: 24"

Front End Assembly Note: Plain (Raw) front end kits ship assembled on the frame. Chrome and Stainless Steel front end kits ship unassembled to protect the finish during shipping and require final assembly.

Charts

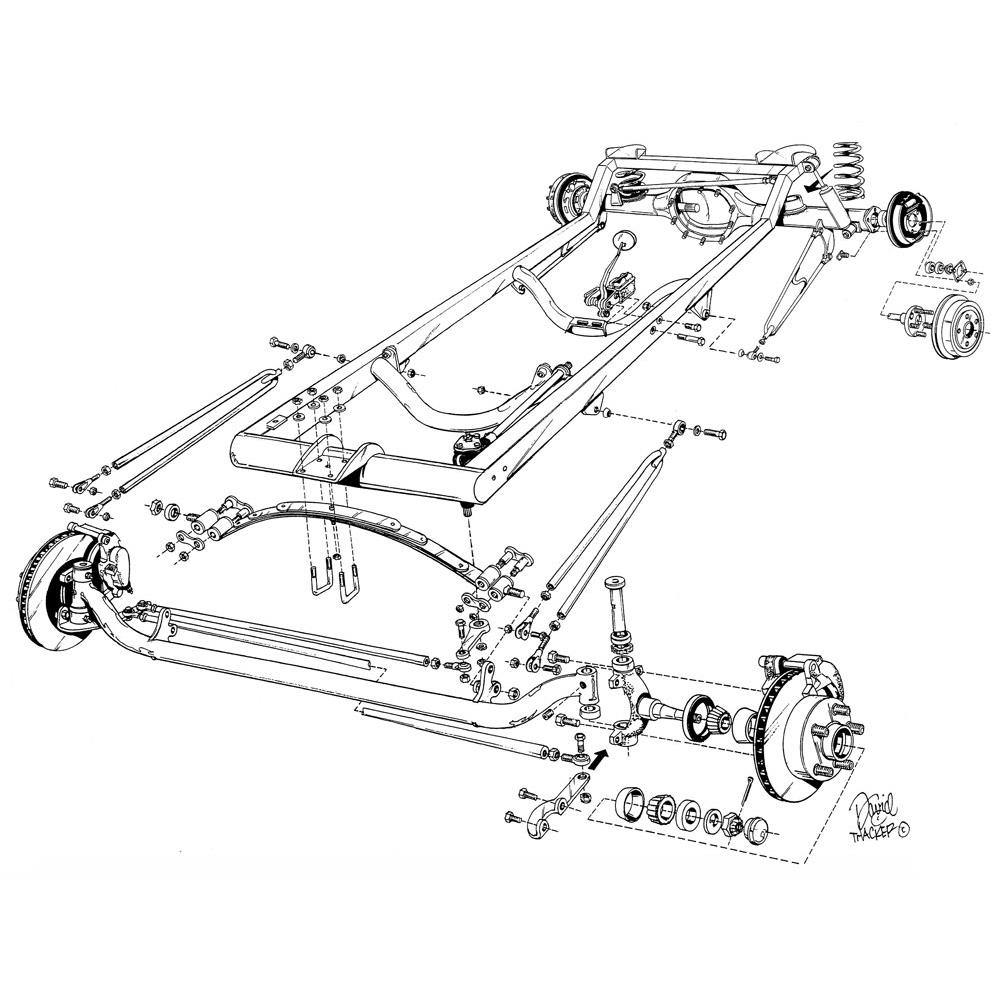

Chassis Exploded View (JPG)
