Part # 91034158

Aluminum Tie Rod Sleeve, 5/8 Inch

by

|

  • Made using 7/8" OD x .160" wall thickness 6061-T6 aluminum tubing to maximize strength while remaining as light as possible
  • 5/8"-18 internal threads with RH thread in one end and LH in the other allows for length adjustment by spinning the tube
  • Useful for tie rods, drag links, rear suspension links, etc.

Length:

Select a length

Starting from

$10.99

each

In Stock

$15.99

Save $5.00


Quantity

Select a vehicle to verify Fitment

Product Summary

  • Made using 7/8" OD x .160" wall thickness 6061-T6 aluminum tubing to maximize strength while remaining as light as possible
  • 5/8"-18 internal threads with RH thread in one end and LH in the other allows for length adjustment by spinning the tube
  • Useful for tie rods, drag links, rear suspension links, etc.
  • Anodized gold with wrench flats machined on one end to make length adjustments quick and easy
  • Available in 5" to 24" lengths

Key Specs

MFG. Part #
BrandSpeedway Motors
Tube O.D.0.875"

Need To Know

Free Shipping on Orders Over $149

Quick and Easy Returns

Details

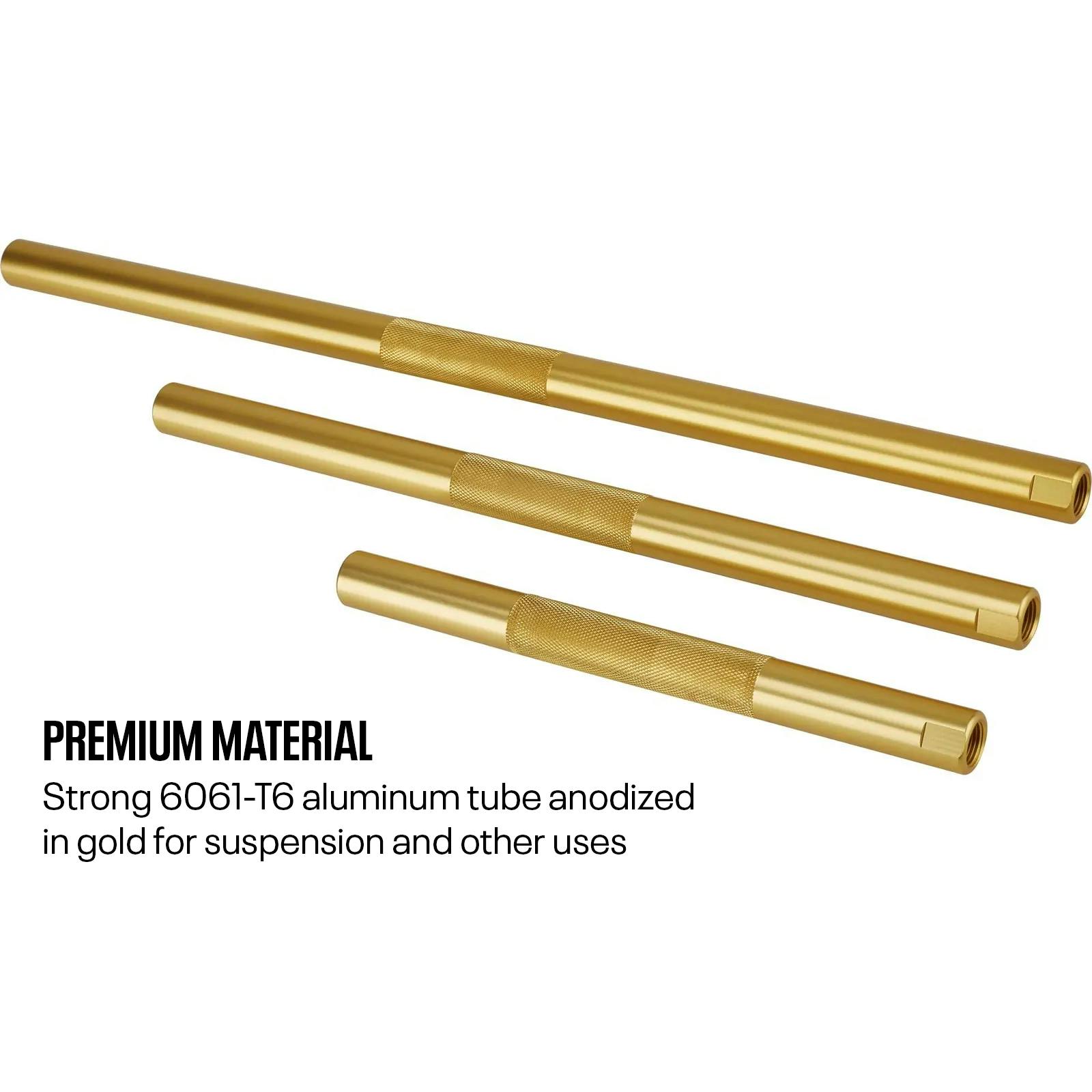

  • Strong 6061-T6 aluminum tube anodized in gold for suspension and other uses
  • Use for four-link, as a radius rod, Panhard bar, chassis bracing, and more
  • Ends threaded 5/8-18 LH and RH threads for rod ends or bushings of your choice
  • Available in 20 lengths from 5-inches to 24-inches long in 1-inch increments
  • Outside diameter of tube is .875-inch (7/8-inch)
  • Single rotation will adjust the overall length in or out by approximately 1/8-inch
  • Knurled finish for easy adjustment with wrench flats on one end as well
  • Order by actual length measurement required for application

Threaded Tubing for Quick Suspension and Steering Adjustments

Weight is the enemy of a race car. Any time you can save weight without reducing integrity or creating an unsafe situation you will benefit. Utilizing aluminum tubing for such things as control arms, Panhard bars, steering linkage, and more are all great ways to not only save weight but allow your suspension and steering to react faster to changes in the track surface, which ultimately keeps your race car’s tires in contact with the racing surface for precise throttle, braking, and steering control that can put you in the winner’s circle.

One easy way to save weight is to replace heavy wall steel suspension and steering tubes with thin wall aluminum versions. As aluminum is lighter than steel with similar strength characteristics it is the perfect upgrade to these suspension and steering pieces when sized properly for the application. Weight savings are further realized with the thinner wall dimensions of the aluminum tube versus a comparable steel tube of the same outside diameter. Thin wall aluminum tubes, on average, are 30 percent lighter than their steel counterparts while meeting the same strength requirements.

Multiple Lengths to Fit Any Race Car Application

We offer these super strong aluminum threaded tubes for your project in a beautiful gold anodized finish. They are constructed from 6061-T6 aluminum with .160-inch wall thickness and available in 20 different lengths from 5-inches to 24-inches, in 1-inch increments. These gold finish aluminum tubes are threaded to accept 5/8-18 rod ends, bushings, or clevises with left-hand and right-hand threads. This allows the adjusting sleeve to be mounted between two points of adjustment, such as your spindle and steering rack, among other fitment applications. Rotating the threaded tube moves the threaded ends of your choice inward or outward for adjustment. For the 5/8-18 thread ends these aluminum sleeves utilize this equates to roughly 1/8-inch of adjustment for each full rotation of the hollow threaded tube. This allows for precise adjustment of your steering arms, four-link, and other chassis adjustments.

Great for Chassis and Suspension Builds

Wherever you wish to save weight by using an aluminum adjustable threaded tube in your race car, be it for a steering linkage, chassis support, or elsewhere, it is easy to figure out exactly what you need. Simply measure the center-to-center distance of your two adjustment or mounting points, subtract 3 inches for your rod ends, bushings, or clevises you choose and then order the closest length to that measurement. So, if your final measurement after subtracting the 3 inches for your ends is 18-inches, that is what you will order from the drop-down menu.

Specifications

KEY SPECS
MFG. Part #
BrandSpeedway Motors
Tube O.D.0.875"
GENERAL
Thread Pitch5/8"-18 RH/LH
Thread Pitch (2)
Overall Length
Material TypeAluminum
FinishAnodized Gold
Material Thickness.160"
Sold in QuantityEach
Knurl Length3.00"
