For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Details

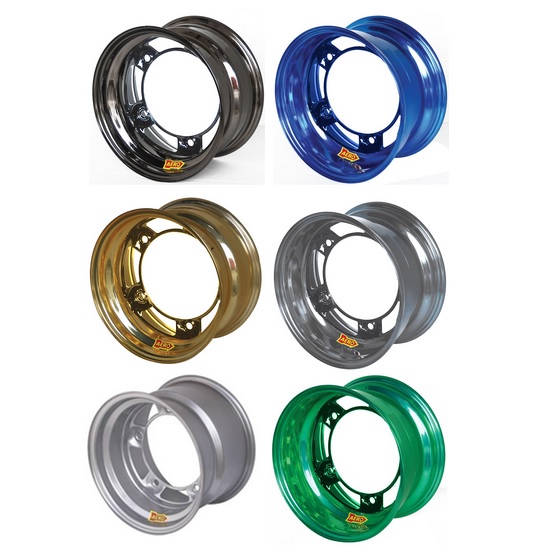

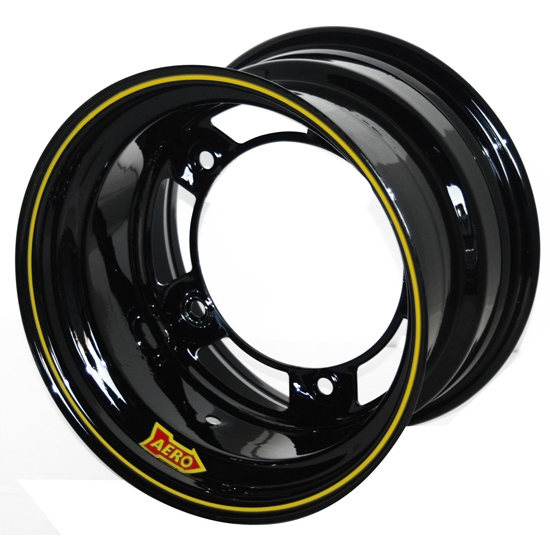

Aero Race Wheels 51 Series steel wheels are designed for asphalt oval track use only. The spun-formed 51 Series wheels have a deeper drop center for easier tire mounting and dismounting, along with the greatest brake caliper clearance and brake cooling capabilities available. They feature a 7-hole D-window center disc made of HSLA material for strength and durability.

Recommended for asphalt use only
Redesigned for extra strength
Strongest 15x10 wheel on the market
High bank and high load applications
Race proven across the country for 3 years
Proven by SFI's 35.2 bead bending test
Designed for NASCAR wheels
Designed for vehicles up to 3500 lbs.
Must use 1" O.D. lug nuts with 45 degree taper
All 51 Series DO NOT have safety bead humps
Available in multiple colors and backspacing

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.

Guides & Documents

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

Specifications

KEY SPECS
MFG. Part #	Select Color and Back Space to see
Brand	Aero
Wheel Diameter	15 Inch
Width	10"
Wheel Bolt Pattern (in.)	Wide 5
Wheel Bolt Pattern (mm)	Wide 5
Wheel Backspace	Select Color and Back Space to see
Wheel Material Type	Steel
Wheel Offset	Select Color and Back Space to see
Wheel Backspace Range	Select Color and Back Space to see
Finish	Select Color and Back Space to see
Color	Select Color and Back Space to see
Beadlock Included	No
Material Type	Steel
Bolt Pattern	Wide 5

GENERAL
Sold in Quantity	Each
DOT-Approved	No
Position	Select Color and Back Space to see
Weight	18 lbs.
Valve Stem Included	No
Lug Nut Seat Style	45 Degree Conical
Center Cap Included	No
Lug Nuts Included	No
Beadlock	No
