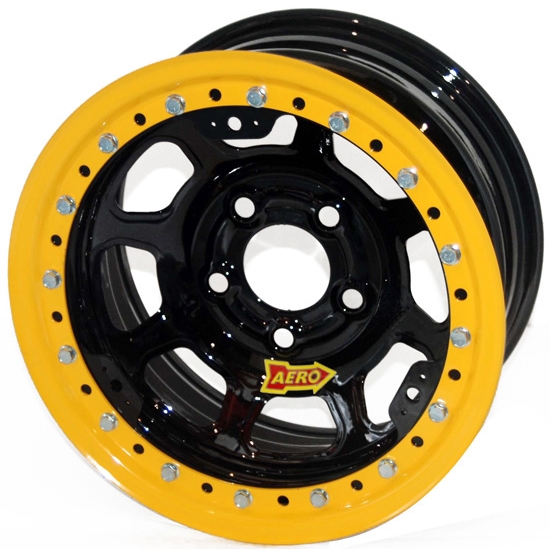

Aero 53-104720 53 Series 15x10 Wheel, BLock, 5 on 4-3/4 BP, 2 Inch BS

-10%

#25853104720

Aero 53-104720 53 Series 15x10 Wheel, BLock, 5 on 4-3/4 BP, 2 Inch BS

Name: Aero 53-104720 53 Series 15x10 Wheel, BLock, 5 on 4-3/4 BP, 2 Inch BS
Brand: Aero
SKU: 25853104720
Price: 214.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

Made for vehicles up to 4000 lbs.
Specially designed for dirt oval track use only
It is held together using 16 zinc plated flange bolts

Backspace:

2 Inch

1 Inch3 Inch 4 Inch 5 Inch

$214.99

/each

In Stock

$239.66

Save $24.67

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

15 Inch Wheel Diameter, 10" Width, 2" Wheel Backspace

Made for vehicles up to 4000 lbs.
Specially designed for dirt oval track use only
It is held together using 16 zinc plated flange bolts
Comes with inner and outer beadlock rings that are CNC laser cut
Features a roll-formed 53 Series wheels feature a 7-hole D-window center disc made of HSLA material for strength and durability

See more details

Key Specs

MFG. Part #	53-104720
Wheel Diameter	15 Inch
Width	10"
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

Installation Tips

For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Aero 53-104720 Details

Aero Race Wheels 53 Series steel wheels are designed for dirt oval track use only. The roll-formed 53 Series wheels feature a 7-hole D-window center disc made of HSLA material for strength and durability. They also come with inner and outer beadlock rings that are CNC laser cut, using 16 zinc plated flange bolts. All beadlocks include mudcover installation kits with mudcover tabs incorporated into the inner ring to eliminate the need for welding.

Recommended for dirt track use only
Designed for vehicles up to 4000 lbs.
Must use 1" O.D. lug nuts with 45 degree taper
Standard beadlock ring color is matched to the wheel color

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.

Guides & Documents

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

Aero 53-104720 Specifications

KEY SPECS
MFG. Part #	53-104720
Brand	Aero
Wheel Diameter	15 Inch
Width	10"
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Wheel Backspace	2"
Wheel Material Type	Steel
Wheel Offset	-89 mm
Wheel Backspace Range	2.000" - 2.499"
Finish	Powder Coated
Color	Black
Beadlock Included	Yes
Material Type	Steel
Bolt Pattern	5 on 4.75"
Diameter	15"

GENERAL
Sold in Quantity	Each
Notes	Beadlock ring color matched to wheel color.
Beadlock Functional	Yes
DOT-Approved	No
Weight	27 lbs.
Valve Stem Included	No
Lug Nut Seat Style	45 Degree Conical
Center Cap Included	No
Lug Nuts Included	No
Beadlock	Yes
