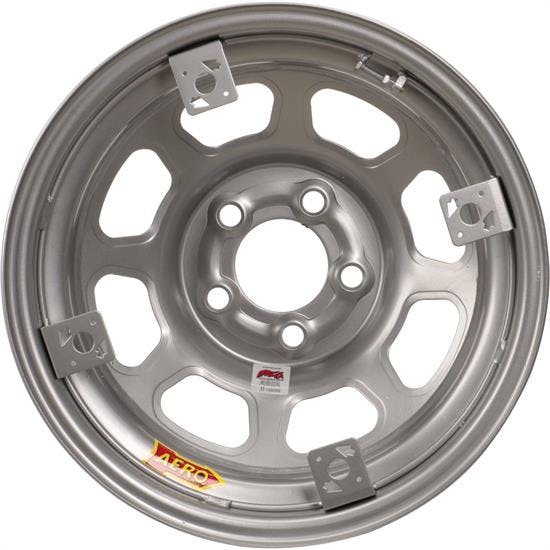

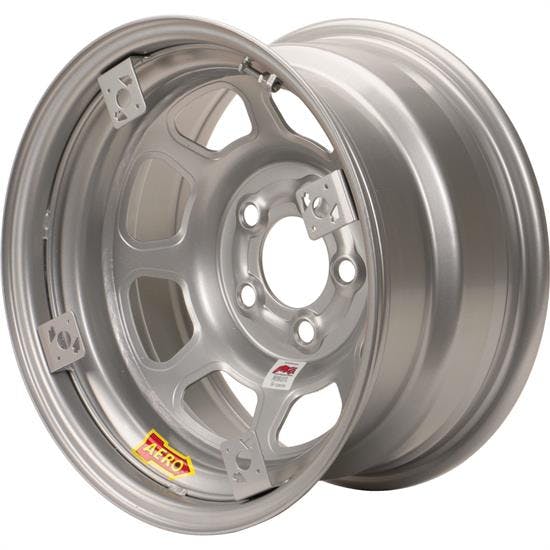

Aero 52 Series 4-Tab 15" Race Wheel, IMCA, 5x5" BP

#2585242

Aero 52 Series 4-Tab 15" Race Wheel, IMCA, 5x5" BP

Ask a Question

Wheel has a 15" diameter and is 8" wide
All center discs are formed out of HSLA steel for strength and durability
Designed to have a more accurate bead seal and a lower runout

Backspace:

Select a backspace

Color:

Select a color

Starting from

$140.99

In Stock

$177.99

Save $37.00

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Wheel has a 15" diameter and is 8" wide
All center discs are formed out of HSLA steel for strength and durability
Designed to have a more accurate bead seal and a lower runout
Includes a knife-edged bead hump and includes the IMCA sanctioning sticker
Features mud cover tabs already welded onto the wheel

See more details

Key Specs

Wheel Diameter	15 Inch
Width	8"
Wheel Bolt Pattern (in.)	5x5 in.
Wheel Bolt Pattern (mm)	5x127 mm
Wheel Backspace	Select Backspace and Color

See more specs

Need To Know

Free Shipping on Orders Over $149

Need help?

Quick and Easy Returns

Installation Details

Wheel Lug Nut Size Guide + Torque Spec Chart

Installation Tips

For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Have a Question?

Talk with one of our experts!

Call Us - 1.855.313.9176

Details

This steel 15 inch wheel is our most popular 15x8 on the market today. All center discs are formed out of HSLA steel for strength and durability. This wheel now has more accurate bead seats and a lower run-out. It includes a knife-edged bead hump and includes the IMCA sanctioning sticker. They DO NOT feature a beadlock and come with four mud cover tabs already welded onto the wheel for easy mud cover installation - no need to have tabs welded on after purchase!

Most popular 15x8 inch wheel on the market today
All center discs are formed out of HSLA steel for strength and durability
Features mud cover tabs already welded onto the wheel
Fits Aero Gen II mud covers
Now has more accurate bead seats and a lower run-out
It includes a knife-edged bead hump
IMCA approved
19 lbs.
5 on 5 inch bolt pattern
1, 2, 3, or 4" backspace

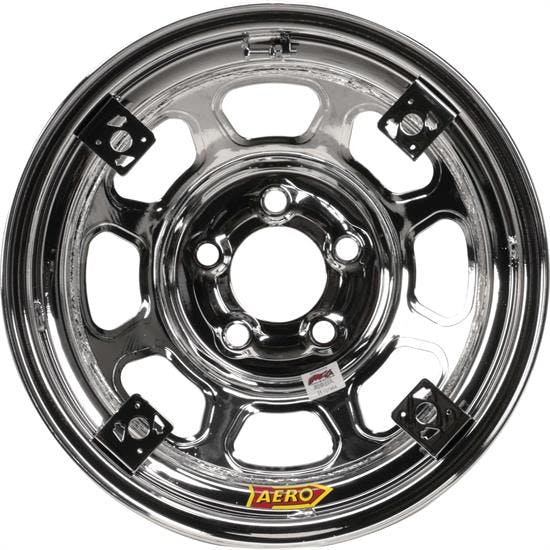

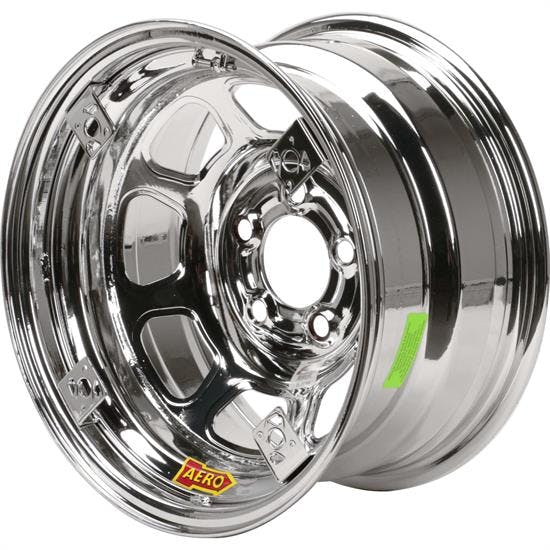

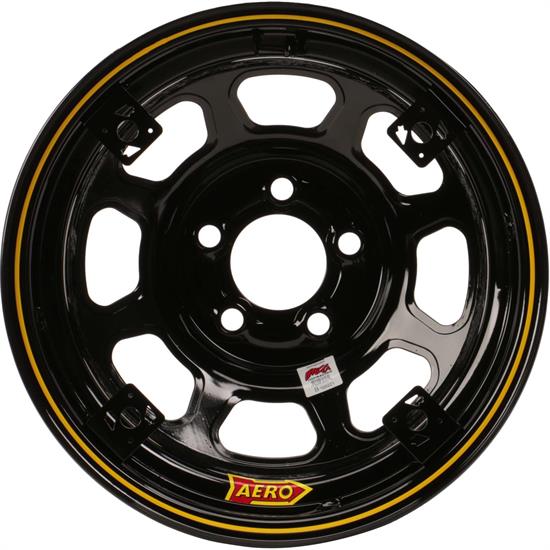

Available in Silver, Black, or Chrome

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article. Racing Wheel Principles.

Guides & Documents

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

Specifications

KEY SPECS
MFG. Part #	Select Backspace and Color to see
Brand	Aero
Wheel Diameter	15 Inch
Width	8"
Wheel Bolt Pattern (in.)	5x5 in.
Wheel Bolt Pattern (mm)	5x127 mm
Wheel Backspace	Select Backspace and Color to see
Wheel Offset	Select Backspace and Color to see
Wheel Backspace Range	Select Backspace and Color to see
Finish	Select Backspace and Color to see
Color	Select Backspace and Color to see
Beadlock Included	No
Material Type	Steel

GENERAL
Wheel Material Type	Steel
DOT-Approved	No
Diameter	15"
Weight	19 lbs.
Sold in Quantity	Each
Valve Stem Included	No
Lug Nut Seat Style	45 Degree Conical
Center Cap Included	No
Beadlock	No
Bolt Pattern	5 on 5"
Lug Nuts Included	No
