Key Specs
| MFG. Part # | 50-104540 |
| Wheel Diameter | 15 Inch |
| Width | 10" |
| Wheel Bolt Pattern (in.) | 5x4.5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAero 50-104540 Details
Aero 50-104540 Details

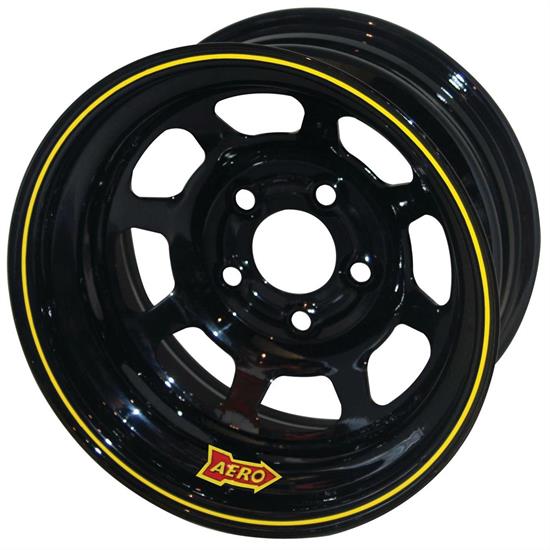

Aero Race Wheels 50 Series steel wheels are designed for asphalt or dirt oval track use. The roll-formed 50 Series wheels have low run-out with knife-edged bead humps and maximum bead seats. They feature a 7-hole D-window center disc made of HSLA material.
- Can be used for both dirt and asphalt
- Designed for vehicles up to 4000 lbs.
- Must use 1" O.D. lug nuts with 45 degree taper
- All 50 Series have safety bead humps
Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.
Aero 50-104540 Specifications
Aero 50-104540 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 50-104540 |
| Brand | Aero |
| Wheel Diameter | 15 Inch |
| Width | 10" |
| Wheel Bolt Pattern (in.) | 5x4.5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm |
| Wheel Backspace | 4" |
| Wheel Material Type | Steel |
| Wheel Offset | -38 mm |
| Wheel Backspace Range | 4.000" - 4.499" |
| Finish | Powder Coated |
| Color | Black |
| Beadlock Included | No |
| Material Type | Steel |
| Bolt Pattern | 5 on 4.5" |
| Diameter | 15" |
| GENERAL | |
| Sold in Quantity | Each |
| DOT-Approved | No |
| Position | Front and Rear |
| Weight | 25 lbs. |
| Valve Stem Included | No |
| Lug Nut Seat Style | 45 Degree Conical |
| Center Cap Included | No |
| Lug Nuts Included | No |
| Beadlock | No |
