Product Summary

13 Inch Wheel Diameter, Steel, 7" Width, Powder Coated

    Key Specs

    Wheel Diameter13 Inch
    Material TypeSteel
    Width7"
    Wheel Bolt Pattern (in.)4x4.5 in.
    Wheel Bolt Pattern (mm)4x114.3 mm

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

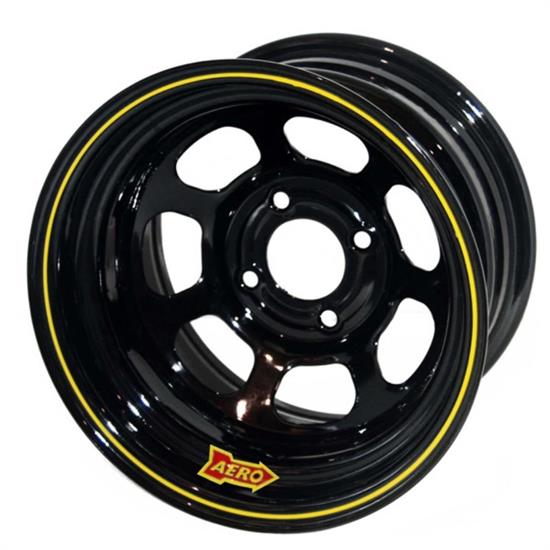

    Aero 36-174535 Details

    Aero Race Wheels 36 Series steel wheels are designed for oval track use. The CNC spun-formed 36 Series wheels have extremely low run-outs with rolled-in safety beads. They feature a 7-hole D-window center disc made of HSLA material with a new torque ring design.

    • Recommended for oval track use
    • Designed for vehicles up to 2500 lbs.
    • Features rolled-in safety beads
    • Must use 1" O.D. lug nuts with 45 degree taper
    • Weighs only 13 lbs.

    For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

    For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

    Aero 36-174535 Specifications

    KEY SPECS
    MFG. Part #36-174535
    BrandAero
    Wheel Diameter13 Inch
    Material TypeSteel
    Width7"
    Wheel Bolt Pattern (in.)4x4.5 in.
    Wheel Bolt Pattern (mm)4x114.3 mm
    Wheel Backspace3.5"
    Wheel Offset-13 mm
    Wheel Backspace Range3.500" - 3.999"
    FinishPowder Coated
    ColorBlack
    Beadlock IncludedNo
    GENERAL
    Beadlock FunctionalNo
    DOT-ApprovedNo
    Weight19 lbs.
    Sold in QuantityEach
    Valve Stem IncludedNo
    Lug Nut Seat Style45 Degree Conical
    Center Cap IncludedNo
    Lug Nuts IncludedNo
