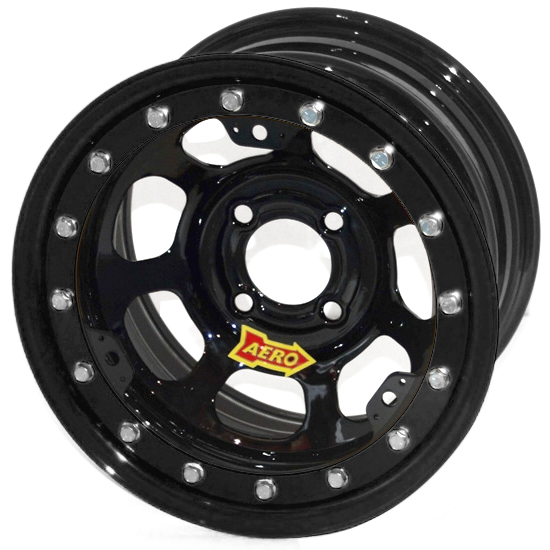

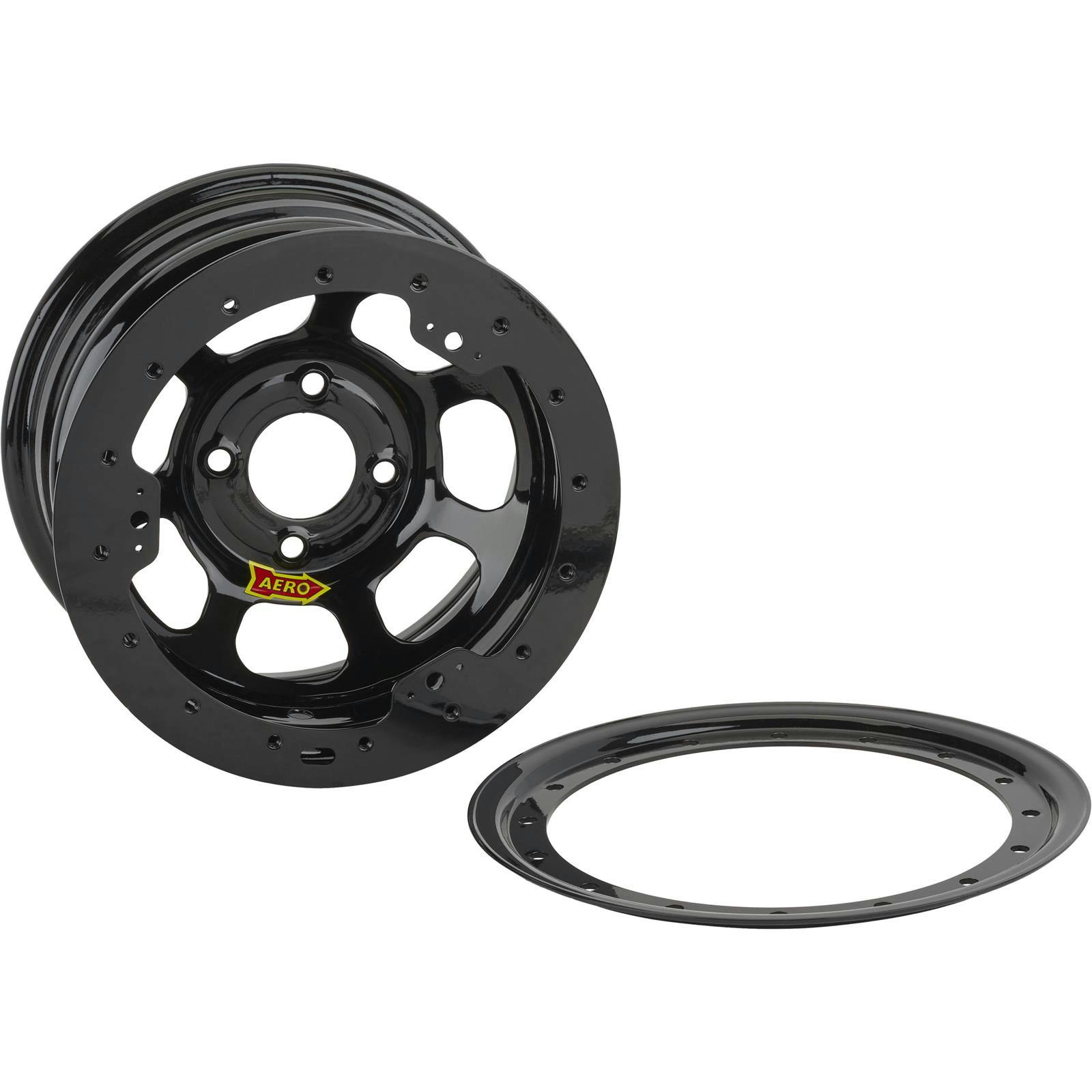

Aero 33-174530 33 Series 13x7 Wheel, Lite, 4x4.5 BP, 3 Inch BS
- Designed for vehicles up to 2500 lbs.
- 13" diameter x 7" wide
- 4x4.5" bolt pattern
$188.99
/each
On Backorder
$196.53
Save $7.54
This part is Backordered. We currently do not have an estimate when this item will ship.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
13 Inch Wheel Diameter, 7" Width, 3" Wheel Backspace
- Designed for vehicles up to 2500 lbs.
- 13" diameter x 7" wide
- 4x4.5" bolt pattern
- Weigh 20 lbs. each
- Wheels are CNC roll-formed
Key Specs
| Wheel Diameter | 13 Inch |
| Width | 7" |
| Wheel Bolt Pattern (in.) | 4x4.5 in. |
| Wheel Bolt Pattern (mm) | 4x114.3 mm |
| Wheel Backspace | 3" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAero 33-174530 Details
Aero 33-174530 Details
Aero Race Wheels 33 Series steel wheels are designed for dirt oval track use only. The CNC roll-formed 33 Series wheels have very low run-out beadlocks, using 16 zinc plated flange bolts. They feature a 7-hole D-window center disc made of HSLA material and include a mudcover installation kit. Mudcover tabs are incorporated into the inner ring to eliminate the need for welding.
- Recommended for dirt use only
- Designed for vehicles up to 2500 lbs.
- Must use 1" O.D. lug nuts with 45 degree taper
- Standard beadlock ring color is matched to the wheel color
Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.
Aero 33-174530 Specifications
Aero 33-174530 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 33-174530 |
| Brand | Aero |
| Wheel Diameter | 13 Inch |
| Width | 7" |
| Wheel Bolt Pattern (in.) | 4x4.5 in. |
| Wheel Bolt Pattern (mm) | 4x114.3 mm |
| Wheel Backspace | 3" |
| Wheel Material Type | Steel |
| Wheel Offset | -25 mm |
| Wheel Backspace Range | 3.000" - 3.499" |
| Finish | Powder Coated |
| Color | Black |
| Beadlock Included | Yes |
| Material Type | Steel |
| Bolt Pattern | 4 on 4.5" |
| Diameter | 13" |
| GENERAL | |
| Beadlock Functional | Yes |
| DOT-Approved | No |
| Weight | 20 lbs. |
| Sold in Quantity | Each |
| Notes | Beadlock ring color matched to wheel color. |
| Valve Stem Included | No |
| Lug Nut Seat Style | 45 Degree Conical |
| Center Cap Included | No |
| Lug Nuts Included | No |
| Beadlock | Yes |
Ratings & Reviews
4.7
3 Reviews
Customers appreciate the product for its practicality, with many noting its perfect fit for dwarf cars. The Arrow wheels have received commendations for their firm hold on tires even at low air pressures, indicating high material quality. The bead lock is user-friendly and expedites tire changes, highlighting the product's usability. Constructed well, the wheels meet customer expectation, demonstrating with certainty the product's superior performance compared to competitors.
Ratings & Reviews
4.7
3 Reviews
Customers appreciate the product for its practicality, with many noting its perfect fit for dwarf cars. The Arrow wheels have received commendations for their firm hold on tires even at low air pressures, indicating high material quality. The bead lock is user-friendly and expedites tire changes, highlighting the product's usability. Constructed well, the wheels meet customer expectation, demonstrating with certainty the product's superior performance compared to competitors.
4.7
3 reviews
5
2
4
1
3
0
2
0
1
0
Filter by Ratings
Yes I would bye this product again
4.0
3 years ago
William Phinney
Battle Mountain, NV.
Verified
I have this on my dwarf car. I love the Arrow wheels because they hold the tires at the low air pressures
Would Recommend
Great price, perfect fit for my Dwarf car
5.0
6 years ago
Tim
Cazadero, California
Verified
Very easy to use this bead lock, makes tire changes quicker.
Would Recommend
Wheels just as ordered
5.0
6 years ago
Mod lite racer
Texas
Verified
Wheel are well built.
Would Recommend
Showing 3 of 3 reviews
