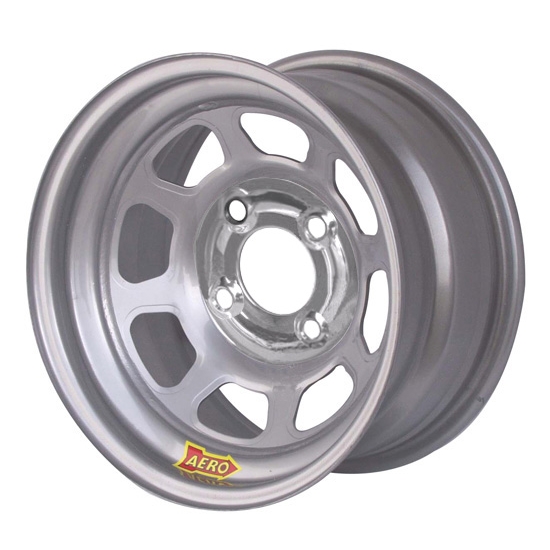

Aero 31-074030 31 Series 13x7 Inch Wheel, Spun, 4 on 4 BP, 3 Inch BS

#25831074030

Aero 31-074030 31 Series 13x7 Inch Wheel, Spun, 4 on 4 BP, 3 Inch BS

Name: Aero 31-074030 31 Series 13x7 Inch Wheel, Spun, 4 on 4 BP, 3 Inch BS
Brand: Aero
SKU: 25831074030
Price: 103.99 USD
Availability: InStock

Write a Review

Ask a Question

Backspace:

3 Inch

2 Inch 3.5 Inch

$103.99

/each

Factory Shipped

$108.42

Save $4.43

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

13 Inch Wheel Diameter, 7" Width, 3" Wheel Backspace

See more details

Key Specs

Wheel Diameter	13 Inch
Width	7"
Wheel Bolt Pattern (in.)	4x4 in.
Wheel Bolt Pattern (mm)	4x101.6 mm
Wheel Backspace	3"

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Aero 31-074030 Details

Aero Race Wheels 31 Series steel wheels are designed for asphalt oval track use only. The CNC spun-formed 31 Series wheels have extremely low run-outs. They feature a 7-hole D-window center disc made of HSLA material with a new torque ring design.

Recommended use for asphalt only
Designed for vehicles up to 2500 lbs.
Must use 1" O.D. lug nuts with 45 degree taper
31 Series DO NOT have safety bead humps

Note: The 4-on-4" bolt pattern will work on 4 on 100 mm if NOT using 5/8" studs.

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.

Aero 31-074030 Specifications

KEY SPECS
MFG. Part #	31-074030
Brand	Aero
Wheel Diameter	13 Inch
Width	7"
Wheel Bolt Pattern (in.)	4x4 in.
Wheel Bolt Pattern (mm)	4x101.6 mm
Wheel Backspace	3"
Wheel Material Type	Steel
Wheel Offset	-25 mm
Wheel Backspace Range	3.000" - 3.499"
Finish	Powder Coated
Color	Silver
Beadlock Included	No
Material Type	Steel
Bolt Pattern	4 on 4"
Diameter	13"

GENERAL
DOT-Approved	No
Position	Front and Rear
Weight	13 lbs.
Sold in Quantity	Each
Valve Stem Included	No
Lug Nut Seat Style	45 Degree Conical
Center Cap Included	No
Lug Nuts Included	No
Beadlock	No
