Product Summary

13 Inch Wheel Diameter, 8" Width, 2" Wheel Backspace

    Key Specs

    Wheel Diameter13 Inch
    Width8"
    Wheel Bolt Pattern (in.)4x4.5 in.
    Wheel Bolt Pattern (mm)4x114.3 mm
    Wheel Backspace2"

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Aero 30-284520 Details

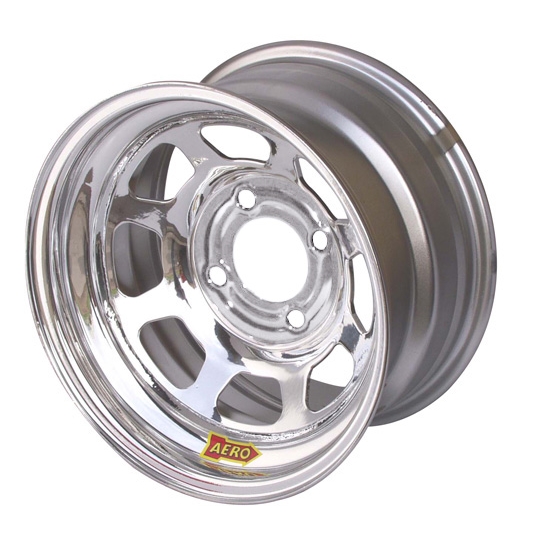

    Aero Race Wheels 30 Series steel wheels are designed for asphalt or dirt oval track use. The roll-formed 30 Series wheels have low run-out with knife-edged bead humps. They feature a 7-hole D-window center disc made of HSLA material with a new torque ring design.

    • Can be used for both dirt and asphalt
    • Designed for vehicles up to 2500 lbs.
    • Must use 1" O.D. lug nuts with 45 degree taper
    • All 30 Series have safety bead humps
    Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.

    Aero 30-284520 Specifications

    KEY SPECS
    MFG. Part #30-284520
    BrandAero
    Wheel Diameter13 Inch
    Width8"
    Wheel Bolt Pattern (in.)4x4.5 in.
    Wheel Bolt Pattern (mm)4x114.3 mm
    Wheel Backspace2"
    Wheel Offset-64 mm
    Wheel Backspace Range2.000" - 2.499"
    FinishChrome
    ColorChrome
    Beadlock IncludedNo
    Material TypeSteel
    GENERAL
    Speedway Motors Catalog Part #258-30284520
    Wheel Material TypeSteel
    DOT-ApprovedNo
    PositionFront and Rear
    Diameter13"
    Weight17 lbs.
    Sold in QuantityEach
    Valve Stem IncludedNo
    Lug Nut Seat Style45 Degree Conical
    Center Cap IncludedNo
    BeadlockNo
    Bolt Pattern4 on 4.5"
    Lug Nuts IncludedNo
