#25830274030

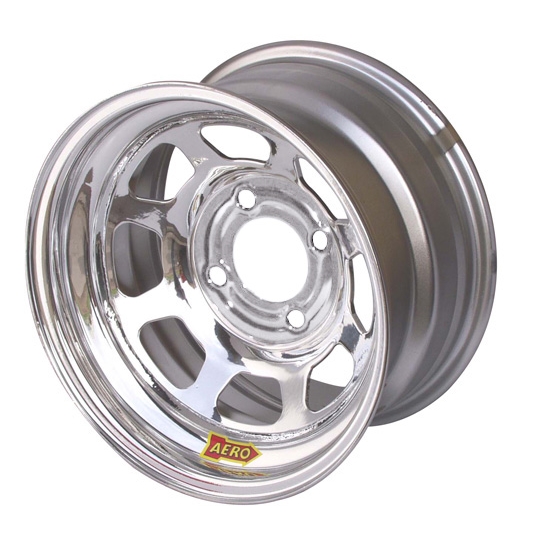

Aero 30-274030 30 Series 13x7 Inch Wheel, 4 on 4 BP, 3 Inch Backspace
$129.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 23rd.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
13 Inch Wheel Diameter, 7" Width, 3" Wheel Backspace
See more details
Key Specs
| Wheel Diameter | 13 Inch |
| Width | 7" |
| Wheel Bolt Pattern (in.) | 4x4 in. |
| Wheel Bolt Pattern (mm) | 4x101.6 mm |
| Wheel Backspace | 3" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAero 30-274030 Details
Aero 30-274030 Details
Aero Race Wheels 30 Series steel wheels are designed for asphalt or dirt oval track use. The roll-formed 30 Series wheels have low run-out with knife-edged bead humps. They feature a 7-hole D-window center disc made of HSLA material with a new torque ring design.
- Can be used for both dirt and asphalt
- Designed for vehicles up to 2500 lbs.
- Must use 1" O.D. lug nuts with 45 degree taper
- All 30 Series have safety bead humps
Note: The 4-on-4" bolt pattern will work on 4 on 100 mm if not using 5/8" studs.
Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article, Racing Wheel Principles.Aero 30-274030 Specifications
Aero 30-274030 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 30-274030 |
| Brand | Aero |
| Wheel Diameter | 13 Inch |
| Width | 7" |
| Wheel Bolt Pattern (in.) | 4x4 in. |
| Wheel Bolt Pattern (mm) | 4x101.6 mm |
| Wheel Backspace | 3" |
| Wheel Offset | -25 mm |
| Wheel Backspace Range | 3.000" - 3.499" |
| Finish | Chrome |
| Color | Chrome |
| Beadlock Included | No |
| Material Type | Steel |
| GENERAL | |
| Speedway Motors Catalog Part # | 258-30274030 |
| Wheel Material Type | Steel |
| DOT-Approved | No |
| Position | Front and Rear |
| Diameter | 13" |
| Weight | 16 lbs. |
| Sold in Quantity | Each |
| Valve Stem Included | No |
| Lug Nut Seat Style | 45 Degree Conical |
| Center Cap Included | No |
| Beadlock | No |
| Bolt Pattern | 4 on 4" |
| Lug Nuts Included | No |
