#91034386

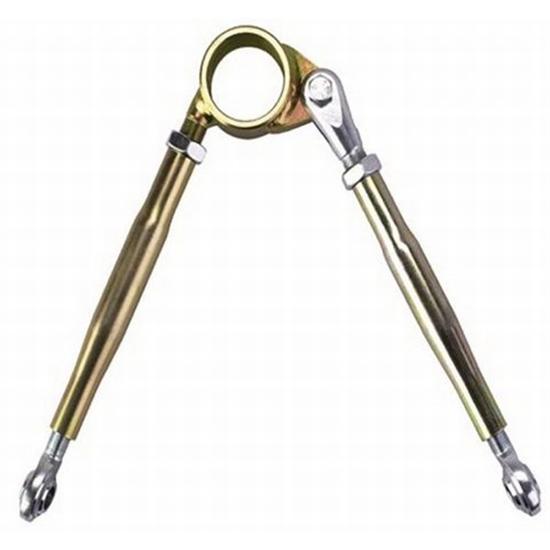

Adjustable A-Arm without Cross Shaft, Offset Type, 7-3/4 Inch
$99.99
each
In Stock
$104.92
Save $4.93
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Tubular Control Arm Style, Steel, Zinc Plated
Comes as a Kit
View Kit Components
See more details
Key Specs
| MFG. Part # | 91034386 |
| Brand | Speedway Motors |
| Control Arm Style | Tubular |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91034386 Details
Speedway Motors 91034386 Details
This adjustable offet type A-arm allows for easy adjustment of caster/camber and uses threaded ball joint. For both right hand and left hand sides.
Guides & Documents
Speedway Motors 91034386 Specifications
Speedway Motors 91034386 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91034386 |
| Brand | Speedway Motors |
| Control Arm Style | Tubular |
| GENERAL | |
| Speedway Motors Catalog Part # | 910-34386 |
| Mount Center to Ball Joint Center | 7.75" |
| Mounting Bolt Center to Center | 6.00" |
| Material Type | Steel |
| Cross Pin Material | Steel |
| Overall Thickness | 1" |
| Inside Diameter | 1.83" |
| Outside Diameter | 2.37" |
| Ball Joint Type | Screw-in |
| Thread Pitch | 500 |
| Thread Length | 1.82" |
| Finish | Zinc Plated |
| Sold in Quantity | Kit |
