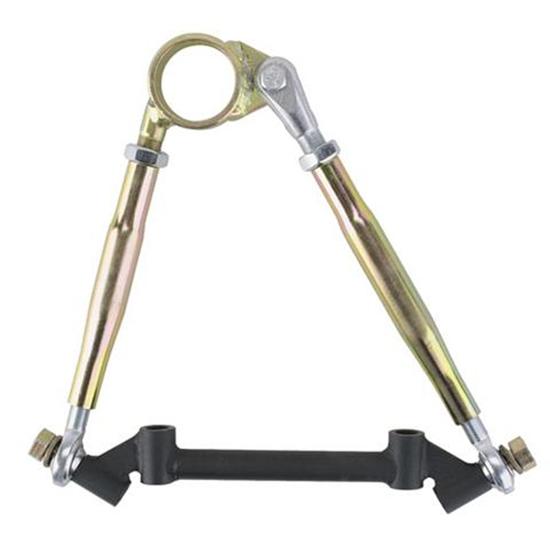

Adjustable A-Arm with Cross Shaft, Strut Type, 9-1/2 Inch
Adjustable A-Arm with Cross Shaft, Strut Type, 9-1/2 Inch

Adjustable A-Arm with Cross Shaft, Strut Type, 9-1/2 Inch

Tubular Control Arm Style, 9.50" Mount Center to Ball Joint Center, Steel, Zinc Plated

0 Reviews | 1 Answered Question
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Adjustable A-Arm with Cross Shaft, Strut Type, 9-1/2 Inch
Adjustable A-Arm with Cross Shaft, Strut Type, 9-1/2 Inch
Adjustable A-Arm with Cross Shaft, Strut Type, 9-1/2 Inch
X
Adjustable A-Arm with Cross Shaft, Strut Type, 9-1/2 Inch
Zoomed In Image
Part # 91034374
$97.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Control Arm Style:
Tubular
Mount Center to Ball Joint Center:
9.50"
Mounting Bolt Center to Center:
6"
Material Type:
Steel
Cross Pin Material:
Steel
Inside Diameter:
1.83"
Ball Joint Type:
Screw-in
Thread Pitch:
5/8-18 Right Hand
Thread Length:
1.82"
Finish:
Zinc Plated
MFG. Part #:
91034374
Sold in Quantity:
Kit

Info

This adjustable strut type A-arm with cross shaft allows easy adjustment of caster/camber, has an IMCA approved steel cross shaft and uses a threaded ball joint. For both right hand and left hand sides.

These arms mount on a 6" center.

Item Details

Strut Type

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Upper Ball Joint Collar Ring, Speedway/Jet/DW9
    Qty x 1
  • Speedway Main Cross Shaft for Adjustable Control Arm
    Qty x 1
  • Speedway Swedged Tube For Adjustable A-Arm, 6 Inch Long
    Qty x 1
  • Speedway Swedged Tube For Adjustable A-Arm, 7 Inch Long
    Qty x 1
  • Steel Clevis, 5/8-18 RH Thread, 3/8 Inch Slot, Zinc Plated
    Qty x 1
  • Standard Steel Heim Joint Rod Ends, 1/2-20 LH Male
    Qty x 2
  • Steel Jam Nut, 5/8-18 RH
    Qty x 2
