Adjustable A-Arm with Cross Shaft, Strut Type, 8-1/2 Inch
Adjustable A-Arm with Cross Shaft, Strut Type, 8-1/2 Inch
In Stock
Can Ship FREE
Adjustable A-Arm with Cross Shaft, Strut Type, 8-1/2 Inch
Part # 91034372
$89.99
kit
Add to Cart
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
Control Arm Style:
Tubular
Mount Center to Ball Joint Center:
8.50"
Material Type:
Steel
Sold in Quantity:
Kit
MFG. Part #:
91034372
Overall Thickness:
1.00"
Inside Diameter:
1.83"
Outside Diameter:
2.37"
Thread Pitch:
5/8-18 Right Hand
Thread Length:
1.82"
Finish:
Zinc Plated
Info

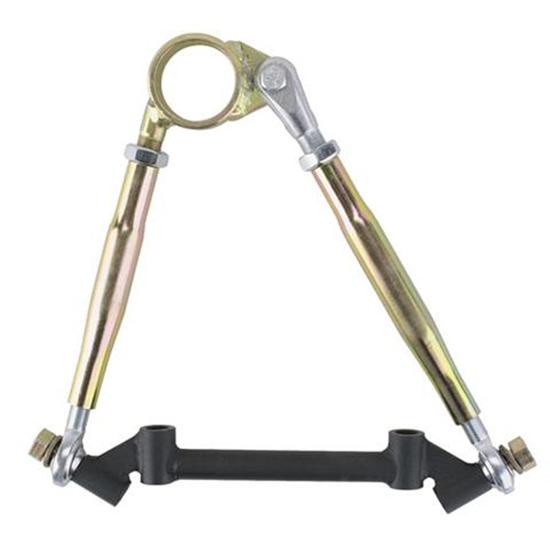

This adjustable strut type A-arm with cross shaft allows easy adjustment of caster/camber, has an IMCA approved steel cross shaft and uses a threaded ball joint. For both right hand and left hand sides.
These arms mount on a 6" center.
Item Details
Strut Type
Some parts are not legal for use in California or other states with similar laws/regulations
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
Upper Ball Joint Collar Ring, Speedway/Jet/DW9Part # 91034361Qty x 1
-
Speedway Main Cross Shaft for Adjustable Control ArmPart # 91034362Qty x 1
-
Speedway Swedged Tube For Adjustable A-Arm, 5 Inch LongPart # 91034363-5Qty x 1
-
Speedway Swedged Tube For Adjustable A-Arm, 6 Inch LongPart # 91034363-6Qty x 1
-
Steel Clevis, 5/8-18 RH Thread, 3/8 Inch Slot, Zinc PlatedPart # 91002006Qty x 1
-
Standard Steel Heim Joint Rod Ends, 1/2-20 LH MalePart # 1750305Qty x 2
-
Steel Jam Nut, 5/8-18 RHPart # 1750246Qty x 2
