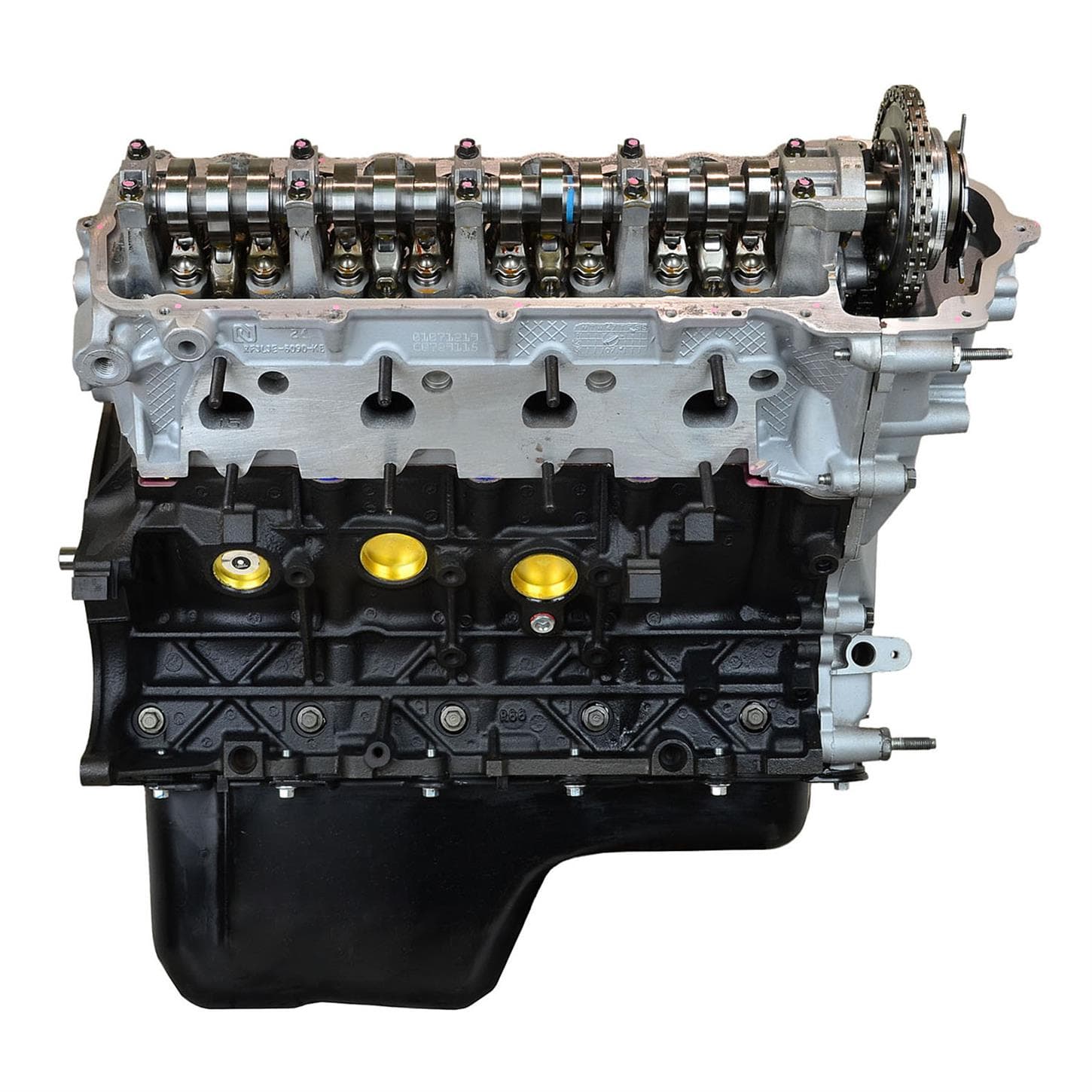

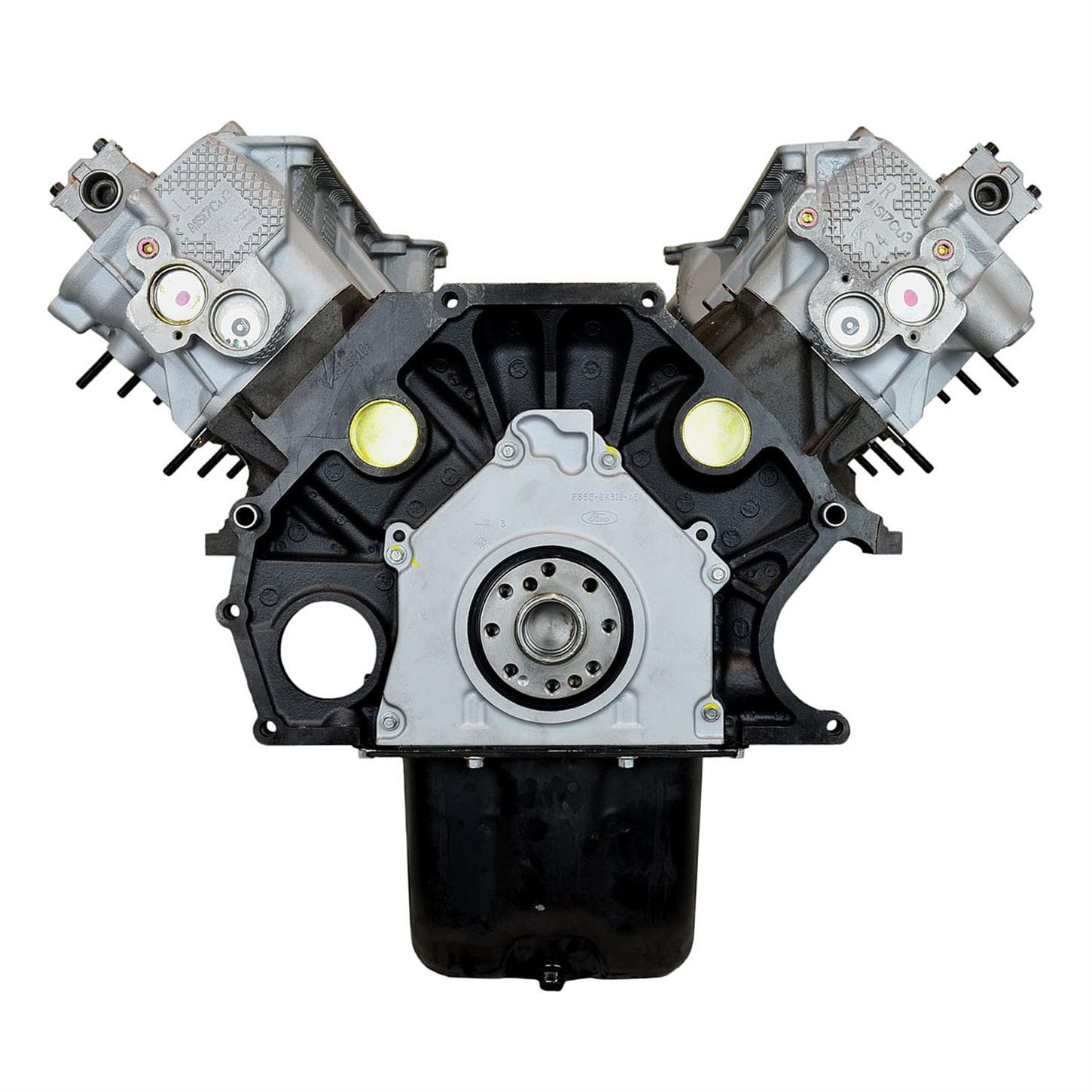

ATK HPDFDN HP Remanufac. Ford Modular V8 5.4L VVT Lock Out Engine
- 5.4L
- Remanufactured
- Timing cover and oil pan installed
$4,599.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Long Block Crate Engine Type, 9.0:1 Compression Ratio
- 5.4L
- Remanufactured
- Timing cover and oil pan installed
- Includes handheld tuner
Key Specs
| Crate Engine Type | Long Block |
| Engine Displacement | 5.4 liters |
| Compression Ratio | 9.0:1 |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyATK Engines HPDFDN Details
ATK Engines HPDFDN Details
ATK’s HPDFDN is a high-performance remanufactured Ford Modular 5.4L SOHC crate engine built with a consistent, repeatable reman process—core components like the heads, block, crankshaft, and camshaft are machined, wear items are replaced, and the finished engine is tested for compression, oil pressure, and a sealed water jacket. It’s designed as a ready-to-install long-block style solution for vehicles that use the Ford Modular 5.4L family.
This package comes set up with a VVT/phaser lockout kit already installed (follow the included instructions), plus the timing cover and oil pan installed to simplify your swap/repair. It’s configured for 12mm thread spark plugs (brown boot) and uses timing cover castings #3L3E-GA/GD and 7L3E-AB/CA. The engine is assembled, internally balanced, cast-iron block with aluminum cylinder heads, and an advertised 9.0:1 compression ratio.
Keep in mind what’s not included: no intake manifold, throttle body/carb, valve covers, water pump, balancer, flexplate/flywheel, ignition pieces, or electronics. Notes indicate a cam/phaser DOD lockout installed and a handheld tuner is included so it can be shut off in the vehicle.
- 5.4L
- Remanufactured
- Timing cover and oil pan installed
- Includes handheld tuner
Specs
- Crate Engine Family: Ford Modular
- Actual Engine Displacement: 5.4L/330
- Crate Engine Cylinder Head Material: Aluminum
- Engine Block Material: Cast iron
- Advertised Compression Ratio: 9.0:1
- Assembled: Yes
- Engine Balance: Internal
- Cam Style: SOHC
- Rear Main Seal Style: 1-piece
- Intake Manifold Included: No
- Cylinder Heads Included: Yes
- Carburetor Included: No
- Throttle Body Included: No
- Distributor Included: No
- Oil Pan Included: Yes
- Valve Covers Included: No
- Timing Cover Included: Yes
- Water Pump Included: No
- Harmonic Balancer Included: No
- Flexplate Included: No
- Flywheel Included: No
- Air Cleaner Included: No
- Spark Plugs Included: No
- Spark Plug Wires Included: No
- Computer Included: No
- Wiring Harness Included: No
- Stall Speed Rating RPM Range: Stock
- Supercharger Included: No
- Remanufactured: Yes
- Quantity: Sold individually
Warranty Information
Click for details
Warranty Information
Click for details
Warranty claims must be filed with the manufacturer in accordance to their policies.
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
ATK Engines HPDFDN Specifications
ATK Engines HPDFDN Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | HPDFDN |
| Brand | ATK Engines |
| Crate Engine Type | Long Block |
| Engine Displacement | 5.4 liters |
| Compression Ratio | 9.0:1 |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Carburetor Included | No |
| Intake Manifold Included | No |
| Distributor Included | No |
| Valve Covers Included | No |
| Engine Balance | Internal |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | No |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| GTIN Code | 00653517725036 |
| Notes | Cam/Phaser DOD lockout installed. Includes handheld tuner so this can be shut off in the vehicle. |
| Sold in Quantity | Each |
