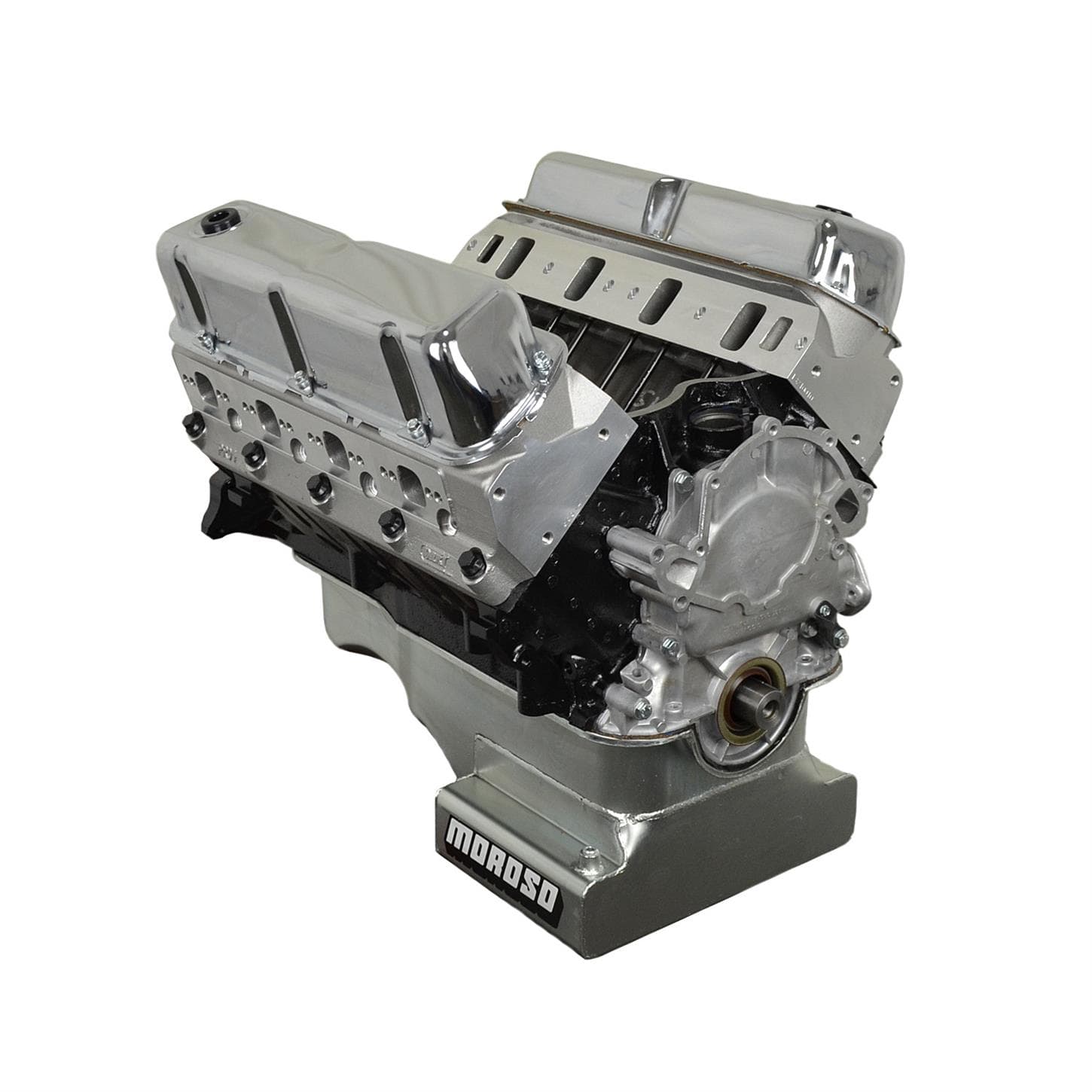

ATK HP81 Ford 408 Stroker Base Engine 480HP

$275 Shipping

#35020216

ATK HP81 Ford 408 Stroker Base Engine 480HP

Block: Seasoned 6.0L Iron Gen IV
Bore/Stroke: 4.030” x 4.000”
Displacement (cu.in): 408

Level Of Dress:

#1 Base Engine

$8,483.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Long Block Crate Engine Type, Valve Covers Included

Block: Seasoned 6.0L Iron Gen IV
Bore/Stroke: 4.030” x 4.000”
Displacement (cu.in): 408
Crankshaft: Manley 4340 forged 58 tooth reluctor wheel
Rods: Manley 4340 forged H beam 6.125” ARP 8740 bolts

See more details

Key Specs

Crate Engine Type	Long Block
Engine Displacement	6.7 liters
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Carburetor Included	No

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

ATK Engines HP81 Details

Engine Specifications:

HP: 480

TQ: 500

Block: Seasoned OE roller block 1993-1997

Bore/Stroke: 4.040 x 4.000

Displacement: 408

Crankshaft: Scat 4340 forged internal balance

Rods: Scat 4340 forged H beam with ARP 8740 bolts

Pistons: Forged 10.1 compression

Rings: Moly

Camshaft: Hyd. Roller

Cam Specs: 235/238 @50 .573in/.582ex 112LSA

Timing Chain: Double roller

Cylinder Heads: Dart aluminum 58cc/195cc 2.02/1.60

Rocker Arms: Aluminum 1.6 roller rockers

Oil Pan: Moroso front sump 7qt street/strip pan

Oil Pump: Melling high volume

Recommended Components:

Balancer: Internal balance

Flexplate/Flywheel: Internal balance

Intake Manifold: Edelbrock performer RPM air gap dual plane #7581

Distributor: Pro billet (with upgraded melonite or steel gear)

Water Pump: Per application

Carburetor: Quick Fuel 780CFM vacuum secondary’s electric choke #HR-780

Fuel Pump: Holley mechanical 110GPH #12-289-11

Spark Plugs: Autolite #3923

Spark Plug Wires: 8mm

Engine Info:

Oil: Conventional / Non Synthetic 10W30

Oil Filter: Wix or K and N per application

Timing: 34-36 Degrees

Spark Plug Gap: .035”

Firing Order: 13726548

Octane: 91+

Stall Converter: 2500+

Exhaust: 1 3/4 Headers

Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. ATK reserves the right to substitute parts used in engines if necessary.

Guides & Documents

Warranty (ATK Engines)

Technical Information (ATK Engines)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

ATK Engines HP81 Specifications

KEY SPECS
MFG. Part #	HP81
Brand	ATK Engines
Crate Engine Type	Long Block
Engine Displacement	6.7 liters
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Carburetor Included	No
Intake Manifold Included	No
Distributor Included	No
Valve Covers Included	Yes
Engine Balance	Internal
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Oil Pan Included	Yes
Timing Cover Included	Yes
Water Pump Included	No
Harmonic Balancer Included	No
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	No
Spark Plug Wires Included	No
Computer Included	No
Wiring Harness Included	No

GENERAL
Assembled	Yes
Material Type	Cast Iron
GTIN Code	00653517259593
Sold in Quantity	Each
Crate Engine Family	Ford Windsor
Supercharger Included	No
