ATK HP08C Ford 302 Complete Engine 365HP Fox Body Oil Pan

$275 Shipping

#35020185

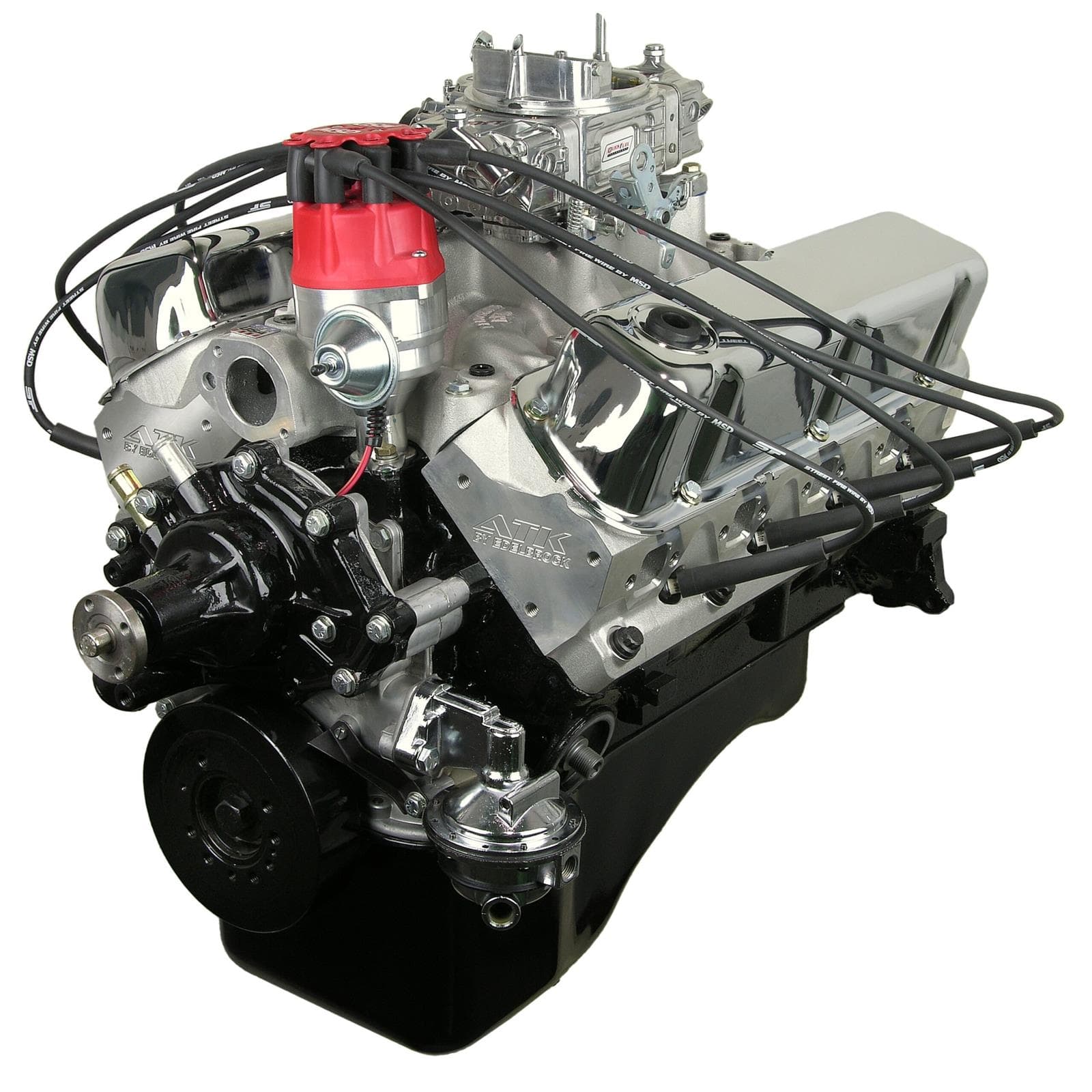

ATK HP08C Ford 302 Complete Engine 365HP Fox Body Oil Pan

Ford 302 370 hp Stage 3 long block
Bore/Stroke: 4.040 in. bore x 3.000 in
OE roller block 1987-1995

Level Of Dress:

#3 Complete Dress

$7,225.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Long Block Crate Engine Type, 375 horsepower Horsepower

Ford 302 370 hp Stage 3 long block
Bore/Stroke: 4.040 in. bore x 3.000 in
OE roller block 1987-1995
Aluminum Cylinder Head.
Crankshaft: Cast steel crankshaft 50oz external balance

See more details

Key Specs

Crate Engine Type	Long Block
Engine Displacement	5 liters
Horsepower	375 horsepower
Compression Ratio	9.5:1
Torque	380 ft./lbs.

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

ATK Engines HP08C Details

Engine Specifications:

HP: 375

TQ: 380

Block: Seasoned OE Roller Block 1987-1995

Bore/Stroke: 4.040 x 3.000

Displacement: 302CI

Crankshaft: OE 1 piece seal external balance 50oz

Rods: OE

Pistons: Hypereutectic 9.5:1 compression

Rings: Moly

Camshaft: Hyd. Roller

Cam Specs: 220/224 @50 .512in/.512ex 112LSA

Timing Chain: Double roller

Cylinder Heads: Dart aluminum 58cc/170cc 2.02/1.60

Rocker Arms: Aluminum 1.6 roller rockers

Oil Pan: Fox body (mustang pan)

Oil Pump: Melling high volume

Balancer: External balance 50oz

Flexplate/Flywheel: TCI external balance 50oz 157 tooth #529610

Intake Manifold: Edelbrock performer RPM dual plane #7121

Water Pump: Late LH inlet reverse rotation

Distributor: Pro Billet (upgraded melonite gear)

Carburetor: Quick Fuel 680CFM vacuum secondary’s electric choke #HR-680cfm

Fuel Pump: Mechanical fuel pump

Spark Plugs: Autolite #3923

Spark Plug Wires: 8mm

Engine Info:

Oil: Conventional / Non Synthetic 10W30

Oil Filter: Wix or K and N

Timing: 34-36 Degrees

Spark Plug Gap: .035”

Firing Order: 13726548

Octane: 91+

Stall Converter: 2400-2800

Exhaust: 1 5/8

Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. . ATK reserves the right to substitute parts used in engines if necessary.

Guides & Documents

Warranty (ATK Engines)

Technical Information (ATK Engines)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

ATK Engines HP08C Specifications

KEY SPECS
MFG. Part #	HP08C
Brand	ATK Engines
Crate Engine Type	Long Block
Engine Displacement	5 liters
Horsepower	375 horsepower
Compression Ratio	9.5:1
Torque	380 ft./lbs.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Camshaft Duration (.050 in)	215° intake / 220° exhaust
Camshaft Lift (in)	.533 Intake / .554 Exhaust
Carburetor Included	Yes
Intake Manifold Included	Yes
Distributor Included	Yes
Connecting Rod Material	OEM Style
Valve Covers Included	Yes
Engine Balance	External
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Oil Pan Included	Yes
Timing Cover Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	Yes
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	No
Wiring Harness Included	No

GENERAL
Assembled	Yes
GTIN Code	00653517259470
Notes	Engine has OE style dual sump Fox Body oil pan.
Sold in Quantity	Each
Crate Engine Family	Ford Windsor
Supercharger Included	No
