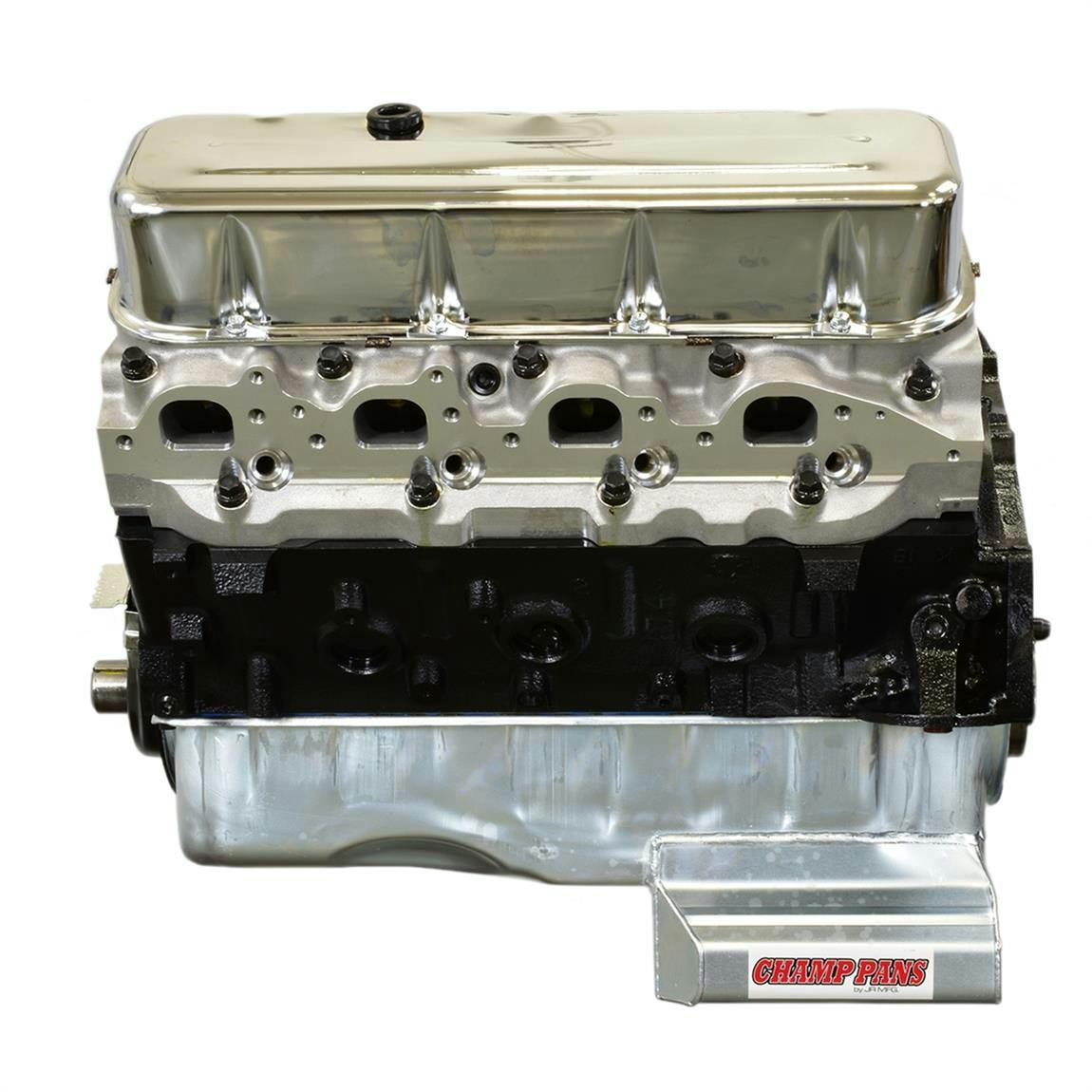

ATK Engines HP451P HP451P Chevy 454 Base Engine, 525HP, 1pc. Seal
- OE Block 1991-1995 Gen V 4 Bolt Main 1pc Seal
- Excellent value for a high-performance upgrade or new build
- Exceptional horsepower and broad torque band
$7,140.99
/each
On Backorder
This part is Backordered. We estimate this item will ship on or before May 25th.
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Universal Fit, Long Block Crate Engine Type
- OE Block 1991-1995 Gen V 4 Bolt Main 1pc Seal
- Excellent value for a high-performance upgrade or new build
- Exceptional horsepower and broad torque band
- Hydraulic roller camshaft/lifter package
- Fuel injection capable
Key Specs
| Crate Engine Type | Long Block |
| Engine Displacement | 454 cu. in. |
| Horsepower | 525 horsepower |
| Compression Ratio | 9.9:1 |
| Torque | 550 ft./lbs. |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyATK Engines HP451P Details
ATK Engines HP451P Details
Engine Specifications:
• HP: 525
• TQ: 550
• Block: OE block 1991-1995 Gen V 4 bolt main 1pc seal (NO MECHANICAL FUEL PUMP PROVISION)
• Bore/Stroke: up to 4.310” x 4.000”
• Displacement: 454
• Crankshaft: OE Reground external balance
• Rods: OE powder metal 6.135”
• Pistons: Forged 9.9:1 compression
• Rings: Moly
• Camshaft: Hyd. roller
• Cam Specs: 225/235 @50 .595in/.601ex 112LSA
• Timing Chain: Double roller
• Cylinder Heads: ATK aluminum
• Rocker Arms: Billet aluminum 1.7 ratio
• Oil Pan: Champ 7qt Street/Strip pan with windage tray
• Oil Pump: Melling high volume
Recommended Components:
• Balancer: PowerBond external balance 8” #PB1451-N
• Flexplate/Flywheel: Pioneer #FRA-321 external balance 168 tooth
• Intake Manifold: Edelbrock performer RPM dual plane #7161
• Distributor: HEI (Iron gear)
• Water Pump: OE long pump
• Carburetor: Quick Fuel 780CFM vacuum secondary’s with electric choke #HR-780
• Fuel Pump: No mechanical fuel pump provision, must run an electric pump
• Spark Plugs: Autolite #3923
• Spark Plug Wires: 8mm
Engine Info:
• Oil: Conventional / Non Synthetic 10W30 with Comp Cam zinc additive #159 for first 3000 miles
• Oil Filter: Wix or K&N per application
• Timing: 34-36 Degrees
• Spark Plug Gap: .035”
• Firing Order: 18436572
• Octane: 91+
• Stall Converter: 2200-2500
• Exhaust: 1 5/8 Headers
Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. . ATK reserves the right to substitute parts used in engines if necessary.
Specs
- Horsepower: 525
- Torque: 550
- Block: OE Block 1991-1995 Gen V 4 Bolt Main 1pc Seal (NO MECHANICAL FUEL PUMP PROVISION)
- Bore/Stroke: up to 4.310 x 4.000
- Displacement: 454 C.I.D.
- Crankshaft: OE Cast 4.000" Stroke Externally Balanced 1pc.
- Connecting Rods: OE Steel 6.135" Stock Bolts
- Pistons: Hyperuetectic
- Piston Rings: Moly Rings
- Compression Ratio: 10.1:1 Compression
- Camshaft: Hyd. Roller Cam
- Camshaft Specifications: 225/235 @050 .595in/.601ex 112LSA
- Camshaft Bearings: Installed And Clocked to OEM Position
- Cylinder Heads: Edelbrock Aluminum E-Street 110cc/290cc 2.19/1.88
- Freeze Plugs: Brass Installed And Sealed
- Rocker Arms: Billet Aluminum 1.7 Full Roller
- Oil Galley Plugs: Installed And Sealed
- Oil Pan: Champ 7qt. with filter
- Weight:510
Warranty Information
Click for details
Warranty Information
Click for details
ATK warrants to the original purchaser that each engine sold by ATK shall be free of defects in materials and workmanship in the Continental 48 states. Subject to the following terms and Conditions:
Award Winning Customer Support
ATK is proud to have been named winner of the Frost & Sullivan North American Remanufactured Engines & Transmissions Aftermarket Customer Service Leadership of the Year Award. We are committed to making your purchase as easy and carefree as possible, and our on-hand service technicians are available to answer any technical questions.
DEFINITIONS:
Long Block: As used in this warranty refers to (basic block, cylinder head, valve train, internal components and sheet metal) as supplied by ATK, including those parts and accessories as supplied by ATK.
Short Block: As used in this warranty refers to (basic block, crankshaft, connecting rods and pistons) as supplied by ATK, including those parts and accessories as supplied by ATK. Short Block’s carry a 90 day warranty from the date of sale with no provision for labor claims.
Engines Built for Forced Induction/Racing Purposes/Elite Series: These engines will be noted as such. They will carry a limited warranty of 6 months against manufactures defects covering PARTS ONLY.
TERMS:
Stage I, II, and Stage III Warranty For Engines: These warranties shall exist for 24 months or unlimited miles. Warranty term begins the day the engine ships (NOT INSTALL DATE). Engines used in marine applications that are not cataloged as such carry no warranty whatsoever. Marine Engines Carry an 18 Month Unlimited Hour Warranty. Please refer to www.atkvege.com for detailed Marine Engine Warranty Documentation.
Standards: Subject to the limitations listed herein. ATK, at its option, shall repair or replace a product within the warranty term after determination by ATK that the product is defective due to parts and/or workmanship. All products are to be returned to ATK for inspection. Products not returned to ATK will not be warranted. All repairs and/or replacements covered by this warranty must be authorized by ATK. Unauthorized repairs will not be paid.
Limitations: This warranty applies to products originally supplied by ATK. This warranty does not apply to or include any of the following:
- Any product used for competition, racing or related purposes.
- Damage as a result to installer error.
- Damage resulting from OVERHEATING, LACK OF LUBRICATION, or CONTAMINATION.
- Damage resulting from PRE-IGNITION or DETONATION. This includes but is not limited to: melted or broken piston, broken piston rings, damaged cylinder heads, leaking head gaskets, etc.
- Foreign objects entering the cylinder creating damage to pistons, cylinder walls, etc.
- Broken crankshafts, broken connecting rods, broken or damaged piston rings, broken valve train resulting from excessive R.P.M.
- A crankshaft thrust surface that is worn due to excessive forward pressure placed on the rear of the crankshaft.
- Repair or replacement required as a result of any accident or misuse.
- Repair or replacement of any accessory or service item, including specifically but not limited to: all components of the cooling, fuel, electrical, and ignition systems including belts, hoses, and filters.
- Replacement of any aftermarket part used in the engine. ATK is not responsible for defective parts supplied by aftermarket companies that may have been used in the build process such as (Distributors, Carburetors, Lifters/Valve Train, Water Pumps, Fuel Pumps, and Oil Pumps etc.) Most of the parts will carry there own warranty through the proper vendor. When an engine is purchased with the optional Dyno Test and Tune session we are able diagnose a defective part at that time and will change it out until the problem no longer occurs. This will not insure a part is not defective and premature failure can still arise after the engine has left our facility.
Disclaimers:
- Applications are not verified and are not legal for pollution controlled vehicles. Computer controlled vehicles may need updated ECM, Chips, Fuel Systems, Etc. Please verify application before ordering.
- HP/TQ Measurements vary slightly from engine to engine. Accordingly, power measurements are typically within +/- 3% on our dyno (your dyno sheets).
- ATK Reserves the right to substitute parts or change specifications on all products offered.
- All images are for illustrative purposes only. Actual engine may vary in color, dress level and components used.
Limited Liability:
ATK’s liability under this warranty is limited solely to the repair or replacement of defective product. ATK shall not be liable for any incidental, special, consequential or exemplary damages including but not limited to freight charges, rental cars, towing fees or for any service not expressly provided for herein, relating or arising from the ATK product.
Limited Warranty:
This warranty is given in lieu of all other warranties, expressed or implied, including any warranty of merchantability, or fitness for a particular purpose, on the part of ATK or the dealer installing the engine. No dealer nor any agent or employee thereof, is authorized to extend or modify this warranty.
Governing Law and Venue:
The terms and provisions of this Limited Warranty shall be governed by and construed according to the laws of the State of Illinois, without reference to its rules relating to the choice of law provisions. Any action at law, suit in equity or judicial proceeding for the enforcement of this Limited Warranty or any provision thereof shall be brought exclusively before the United States District Court for the Northern District of Illinois or any state court sitting in Cook County, Illinois.
Labor for Stage I, II, and III Warranty:
ATK authorized repairs will be compensated at a rate not to exceed the Mitchell Repair Manual’s published applicable flat rate schedule. As of January 1st, 2024, the Hourly rates for all authorized labor claims will be paid in accordance with the original installation rate, not to exceed $95.00 per flat rate hour per Mitchell book time or comparable application. ATK does not pay extra hours due to the type of vehicle or extra work needed due to customization, show cars, etc. Do-it-yourself install/repairs and repairs performed by unlicensed repair facilities DO NOT qualify for labor reimbursements.
Additional Owner/User Obligations:
Initial Startup: Initial Startup: Valves must be re-adjusted to manufacturer’s specifications. Due to various component designs, cylinder head re-torque may or may not be required in your particular application. Refer to factory shop manual for the proper procedure for your engine type. If for any reason you are unsure what action to take, please contact our customer service department via our toll free number at 800-421-3746. First service between 600-1000 miles after installation: Oil and filter must be changed, valves re-adjusted and cylinder heads re-torqued (refer to initial startup instructions). Failures to perform these basic operations may result in a voided warranty.
*Not legal for sale or use on any pollution controlled vehicle*
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
ATK Engines HP451P Specifications
ATK Engines HP451P Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | HP451P |
| Brand | ATK Engines |
| Crate Engine Type | Long Block |
| Engine Displacement | 454 cu. in. |
| Horsepower | 525 horsepower |
| Compression Ratio | 9.9:1 |
| Torque | 550 ft./lbs. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Iron |
| Carburetor Included | No |
| Intake Manifold Included | No |
| Distributor Included | No |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | No |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| Assembled | Yes |
| GTIN Code | 653517517860 |
| Sold in Quantity | Each |
| Supercharger Included | No |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
1970-1975 Chevy Bel Air
454 Chevy Big Block V8
1970-1972 Chevy Biscayne
454 Chevy Big Block V8
1970-1972 Chevy Brookwood
454 Chevy Big Block V8
1973-1979 Chevy C10
454 Chevy Big Block V8
1973-1979 Chevy C10 Suburban
454 Chevy Big Block V8
1988 Chevy C15
454 Chevy Big Block V8
1990 Chevy C1500
454 Chevy Big Block V8
1991 Chevy C1500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Mark IV 454 LS5
1992-1993 Chevy C1500
454 Chevy Big Block V8
1973-1987 Chevy C20
454 Chevy Big Block V8
1973-1986 Chevy C20 Suburban
454 Chevy Big Block V8
1991 Chevy C2500
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1992-1995 Chevy C2500
454 Chevy Big Block V8
1996-1997 Chevy C2500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1992-1995 Chevy C2500 Suburban
454 Chevy Big Block V8
1996-1997 Chevy C2500 Suburban
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1973-1986 Chevy C30
454 Chevy Big Block V8
1988-1990 Chevy C3500
454 Chevy Big Block V8
1991 Chevy C3500
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1992-1995 Chevy C3500
454 Chevy Big Block V8
1996-1997 Chevy C3500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1970-1976 Chevy Caprice
454 Chevy Big Block V8
1970-1973 Chevy Chevelle
454 Chevy Big Block V8
1970-1974 Chevy Corvette
454 Chevy Big Block V8
1970-1975 Chevy El Camino
454 Chevy Big Block V8
1970 Chevy Estate
454 Chevy Big Block V8
1996-2000 Chevy Express 2500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1996-2000 Chevy Express 3500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1988-1990 Chevy G30
454 Chevy Big Block V8
1991 Chevy G30
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1992-1995 Chevy G30
454 Chevy Big Block V8
1996 Chevy G30
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1970-1976 Chevy Impala
454 Chevy Big Block V8
1973-1974 Chevy K10
454 Chevy Big Block V8
1973-1974 Chevy K10 Suburban
454 Chevy Big Block V8
1973-1974 Chevy K20
454 Chevy Big Block V8
1973-1974 Chevy K20 Suburban
454 Chevy Big Block V8
1985 Chevy K20 Suburban
454 Chevy Big Block V8
1991 Chevy K2500
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1992-1995 Chevy K2500
454 Chevy Big Block V8
1996-1997 Chevy K2500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1992-1995 Chevy K2500 Suburban
454 Chevy Big Block V8
1996-1997 Chevy K2500 Suburban
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1977-1986 Chevy K30
454 Chevy Big Block V8
1988-1990 Chevy K3500
454 Chevy Big Block V8
1991 Chevy K3500
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1992-1995 Chevy K3500
454 Chevy Big Block V8
1996-1997 Chevy K3500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1970-1972 Chevy Kingswood
454 Chevy Big Block V8
1973-1975 Chevy Laguna
454 Chevy Big Block V8
1973-1975 Chevy Malibu
454 Chevy Big Block V8
1970-1975 Chevy Monte Carlo
454 Chevy Big Block V8
1975-1990 Chevy P30
454 Chevy Big Block V8
1991 Chevy P30
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Mark IV 454 LS5
1992-1995 Chevy P30
454 Chevy Big Block V8
1996-1997 Chevy P30
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1973-1974 Chevy P30 Van
454 Chevy Big Block V8
1987-1988 Chevy R20
454 Chevy Big Block V8
1987-1988 Chevy R20 Suburban
454 Chevy Big Block V8
1989 Chevy R2500
454 Chevy Big Block V8
1989-1990 Chevy R2500 Suburban
454 Chevy Big Block V8
1991 Chevy R2500 Suburban
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1987-1988 Chevy R30
454 Chevy Big Block V8
1989-1990 Chevy R3500
454 Chevy Big Block V8
1991 Chevy R3500
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1970-1972 Chevy Townsman
454 Chevy Big Block V8
1987-1988 Chevy V20 Suburban
454 Chevy Big Block V8
1990 Chevy V2500 Suburban
454 Chevy Big Block V8
1987-1988 Chevy V30
454 Chevy Big Block V8
1989-1990 Chevy V3500
454 Chevy Big Block V8
1991 Chevy V3500
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1975-1978 GMC C15
454 Chevy Big Block V8
1975-1978 GMC C15 Suburban
454 Chevy Big Block V8
1973-1974 GMC C15/C1500 Pickup
454 Chevy Big Block V8
1973-1974 GMC C15/C1500 Suburban
454 Chevy Big Block V8
1979 GMC C1500
454 Chevy Big Block V8
1979 GMC C1500 Suburban
454 Chevy Big Block V8
1975-1978 GMC C25
454 Chevy Big Block V8
1975-1978 GMC C25 Suburban
454 Chevy Big Block V8
1973-1974 GMC C25/C2500 Pickup
454 Chevy Big Block V8
1973-1974 GMC C25/C2500 Suburban
454 Chevy Big Block V8
1979-1986 GMC C2500
454 Chevy Big Block V8
1988-1990 GMC C2500
454 Chevy Big Block V8
1991 GMC C2500
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1992-1995 GMC C2500
454 Chevy Big Block V8
1996-2000 GMC C2500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1979-1986 GMC C2500 Suburban
454 Chevy Big Block V8
1992-1995 GMC C2500 Suburban
454 Chevy Big Block V8
1996-1999 GMC C2500 Suburban
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1975-1978 GMC C35
454 Chevy Big Block V8
1979-1986 GMC C3500
454 Chevy Big Block V8
1988-1990 GMC C3500
454 Chevy Big Block V8
1991 GMC C3500
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1992-1995 GMC C3500
454 Chevy Big Block V8
1996-2000 GMC C3500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1994-1999 GMC K2500 Suburban
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1977-1978 GMC K35
454 Chevy Big Block V8
1979-1986 GMC K3500
454 Chevy Big Block V8
1988-1990 GMC K3500
454 Chevy Big Block V8
1991 GMC K3500
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1992-1995 GMC K3500
454 Chevy Big Block V8
1996-2000 GMC K3500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1987-1989 GMC R2500
454 Chevy Big Block V8
1987-1990 GMC R2500 Suburban
454 Chevy Big Block V8
1991 GMC R2500 Suburban
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1987-1990 GMC R3500
454 Chevy Big Block V8
1991 GMC R3500
Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19
1996-2000 GMC Savana 2500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1996-2000 GMC Savana 3500
Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454
1971-1977 GMC Sprint
454 Chevy Big Block V8
