AFCO 7250-0100 Ford 9 Inch Axle Brake Kit

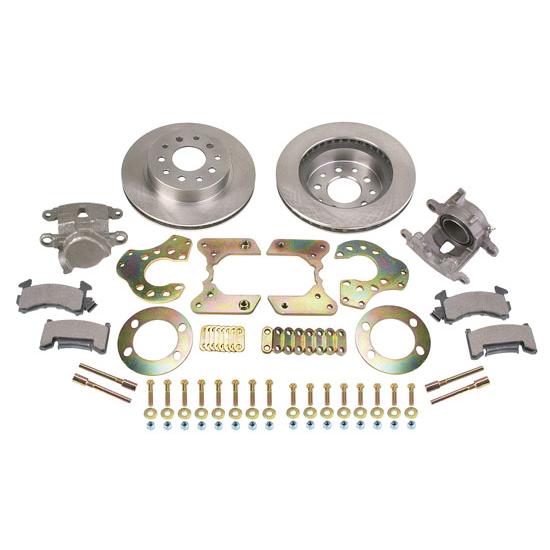

These rear disc brake kits allow you to simply bolt disc brakes on your 9" Ford rearend. Includes two bolt-on caliper brackets, two vented rotors, two new GM Metric calipers and hardware. Has 5 x 4-1/2" bolt pattern.

Minor fitting to axle housing may be required.

Vented Rotors:

These 11-1/4" one-piece, vented iron disc brake rotors are for rear disc brake applications. Features dual bolt patterns for 5 x 4.5" (Ford/Mopar) and 5 x 4.75" (Chevy/GM) wheels.

• Center Hole:  2.78"
• Backspace:  2.30"
• Maximum Axle Flange Diameter:  6-1/4"
• Thickness:  1"
• Thickness @ Center of Rotor:  0.236"

Brake Pads:

The C1 brake pad compound was designed and developed to meet the braking needs of medium to high temperature racing applications. As brake system temperatures quickly increase and decrease, C1 provides consistent performance while remaining fade resistant. C1 has proven to be extremely rotor friendly and provides exceptional pad life without requiring lengthy pad break-in (bedding) procedures.

C1 is widely used in dirt track racing and is the ultimate pad for all medium temperature applications. Recommended temperature use: 400-900 degrees.

• High torque with excellent control qualities
• User friendly/easy break-in
• Exceptional pad and rotor wear
• Made in the U.S.A.

Caliper Brackets:

• For Ford passenger car axles ONLY
• Fits axle with maximum flange diameter of 6-1/4" O.D.
• For 15" and larger wheel applications ONLY
• Includes:
  • 2 Caliper brackets
  • 2 Adapter plates
  • 2 Spacer plates
  • 8 5/16" spacers
  • 8 1/8" spacers

Hardware Kit:

This hardware kit allows you to bolt '78-Up GM Metric disc brakes onto a Ford 9" rearend when used with our GM Metric Disc Brake to 9 Inch Ford Bracket Set. This complete set is made up of Grade 8 bolts, washers, and nylock nuts.

Includes:

• (8) 3/8"-24 x 1-1/2" Grade 8 bolts
• (8) 3/8"-24 x 2" Grade 8 bolts
• (16) 3/8" flat washers
• (16) 3/8" Grade 8 nylock nuts

Caliper Slide Bolt:

The overall length of these slide bolts is 4-3/8".  The underhead length is 3-3/8".  The thread on the bolts is 7/16-20 (US fine).

Brake Calipers:

These right hand 2-1/2" bore steel GM metric calipers from AFCO are designed to be used as a new stock replacement caliper. These GM metric calipers feature a stock appearing virgin plated caliper body, new ground 2-1/2" stainless steel piston, and low drag seals. Each of these GM metric calipers has been assembled and pressure tested.

• Stock appearing virgin plated caliper body
• New 2-1/2" stianless steel piston
• Low drag seals
• Pressure tested
• Steel

Kit includes:

• 11-1/4" one-piece vented iron rotors
• Caliper brackets
• Metric calipers, 2-1/2" pistons
• Brake pad spacers
• AFCO C1 pads
• Slide bolts
• All hardware included

 NOTE: This bolt on brake kit is designed to be used on 8" and 9" housings using 3/8" retaining bolts. If you want to use it on a 9" housing with 1/2" bolts, you will need to use the 3/8" hardware to do so. Fits "old" and "new" style big bearing (3.150" bearing O.D.) Ford housings and with axle offsets of a minimum 2-3/8" to 2-1/2".

• "Old-style" big bearing 9" Ford axle
• "New-style" big bearing 9" Ford axle
• 8" Ford axle
• Axle housings with minimum axle offsets of 2-3/8" to 2-1/2"

106-72500100 Instructions (PDF)

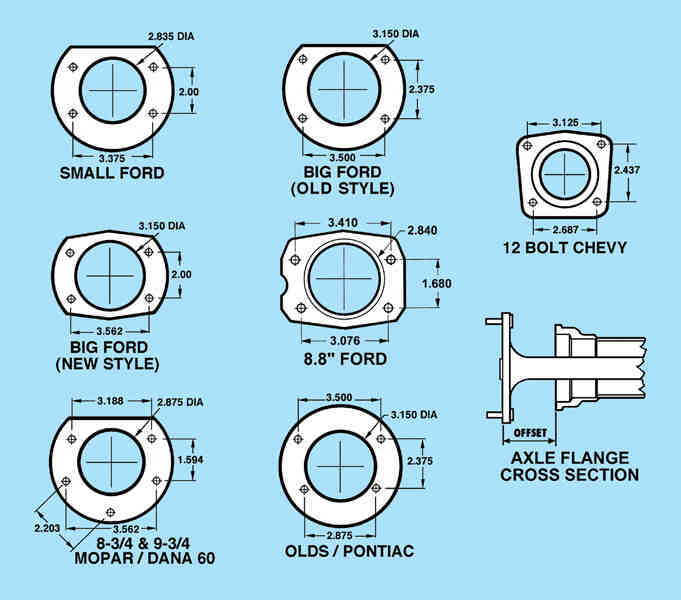

Axle Flange Identification Chart (GIF)
