AFCO 20228XHD Camaro/Nova Multi-Leaf Spring, 238 Lb. Rate

-10%

#10620228XHD

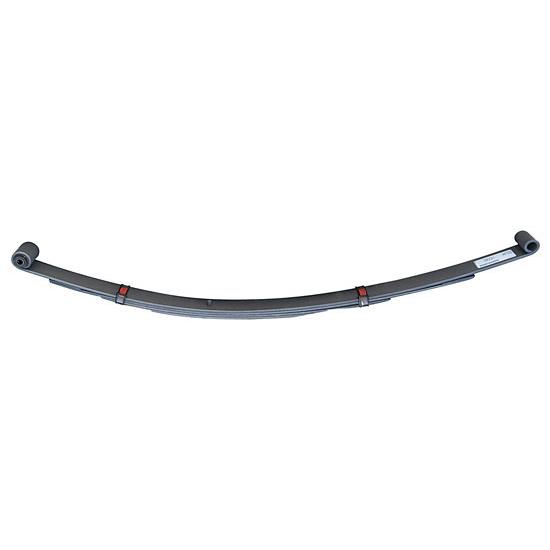

AFCO 20228XHD Camaro/Nova Multi-Leaf Spring, 238 Lb. Rate

Name: AFCO 20228XHD Camaro/Nova Multi-Leaf Spring, 238 Lb. Rate
Brand: AFCO
SKU: 10620228XHD
Price: 268.99 USD
Availability: InStock
Rating: 4 (1 reviews)

1 Review

Ask a Question

The chrome-vanadium alloy spring steel material is superior to others and provides consistent rates over a longer life span
Has Teflon rub block between leafs reduces friction and maintains consistency of rate
Use of tempered leaf's reduce stress by 30-40%, prevents loss of arch

Spring Rate:

238

153 176 205

$268.99

/each

In Stock

$299.99

Save $31.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, Standard Eye Leaf Spring Eye Type

The chrome-vanadium alloy spring steel material is superior to others and provides consistent rates over a longer life span
Has Teflon rub block between leafs reduces friction and maintains consistency of rate
Use of tempered leaf's reduce stress by 30-40%, prevents loss of arch
It is shot-peened after arching to reduce tensile stress
Provides 3-5 times more service life to the spring

See more details

Key Specs

MFG. Part #	20228XHD
Brand	AFCO
Position	Rear
Spring Rate	238 lbs.

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 20228XHD Details

Racers using multi-leaf springs realize the importance of accurate arch, load capacity and durability. This AFCO leaf spring is the highest quality racing spring available and give you features not available in any other leaf spring. This multi-leaf spring is constructed from high-quality chrom-vanadium steel and set to actual arch following the closest standards in the racing industry. This spring is then heat-treated to provide long life. The final process includes shot-peening to relieve stress in the materials.

Front bushing is included.

Chrom-vanadium alloy spring steel material is superior to others and provides consistent rates over a longer life span
Teflon rub blocks between leafs reduces friction and maintains consistency of rate
Tapered leafs reduce stress by 30-40%, prevents loss of arch
Front bushing included
Shot-peened after arching to reduce tensile stress, provides 3-5 times more service life to the spring
Fits 1967-81 cars
Car Weight: 3000-3400 lbs
Arch: 6-3/8"
Nominal Rate: 238
Most popular choice rate for stock replacement are 153 (20228LW) or 176 (20228)

Item Details

Rate: 238, True Arch: 6.375"

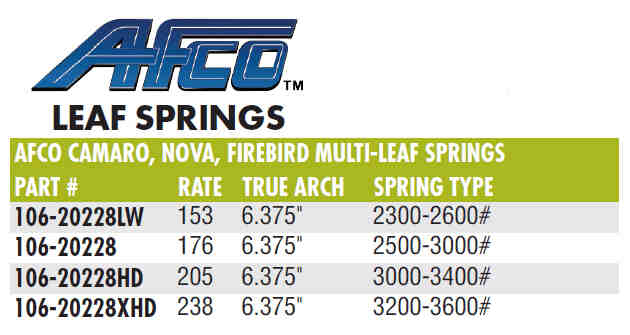

Charts

AFCO Spring Rate Chart (GIF)

Specs

Center of Eye to Center of Eye: 53 ½”
Rear Bushing Center to Pin Hole: 29”
Front Eye to Pin: 24 ½”

Guides & Documents

Front Spring Choices for Traditional Straight Axle Hot Rods

Leaf Springs Technical Information (10620228XHD)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 20228XHD Specifications

KEY SPECS
MFG. Part #	20228XHD
Brand	AFCO
Position	Rear
Spring Rate	238 lbs.

GENERAL
Leaf Spring Eye Type	Standard Eye
Length Eye to Eye	53.5"
Leaf Spring Width	2-1/2 Inch
Suspension Height Adjustment	Stock Height
True Arch	6.38"
Number of Leafs	5
Material Type	Steel
Finish	Natural
Sold in Quantity	Each
Front Eye I.D.	2"
Rear Eye I.D.	1.5"

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Good product at a reasonable price.

4.0

a year ago

Smokey

Sandy, Oregon

Verified

Bolted right into my 1977 Camaro dirt racecar. Using it on the left rear. First practice and the car turned a lot better and never got too loose. Very happy with it.

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

Be the first to ask a question.

Fitment

1967-1981 Chevy Camaro

1968 Chevy Chevy II

1969-1974 Chevy Nova
