AERO 53 Series IMCA Certified 15 Inch Race Wheel, Beadlock, 5 on 5 Pattern

#258531

AERO 53 Series IMCA Certified 15 Inch Race Wheel, Beadlock, 5 on 5 Pattern

Name: AERO 53 Series IMCA Certified 15 Inch Race Wheel, Beadlock, 5 on 5 Pattern
Brand: Aero
SKU: 258531
Rating: 5 (39 reviews)

39 Reviews

2 Questions

All center discs are made out of HSLA steel
It has a 15" diameter and weighs only 23 lbs.
Comes pre drilled with the 5 on 5" bolt pattern

Wheel Type:

Beadlock

Non-Beadlock

Color:

Select a color

Backspace:

Select a backspace

Starting from

$184.99

/each

In Stock

$188.36

Save $3.37

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

All center discs are made out of HSLA steel
It has a 15" diameter and weighs only 23 lbs.
Comes pre drilled with the 5 on 5" bolt pattern
The inner and outer rings are CNC laser cut and use 16 zinc plated flange bolts
Mudcover tabs are incorporated into the inner ring to eliminate the need for welding

See more details

Key Specs

MFG. Part #	Select Wheel Type, Color and Backspace
Wheel Diameter	15 Inch
Width	8"
Wheel Bolt Pattern (in.)	5x5 in.
Wheel Bolt Pattern (mm)	5x127 mm

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

Installation Tips

For off road use only. The following must be considered when using Aero wheels for on highway/street use when the wheel/tire assembly is being balanced. Aero wheels are lug centric, which means they are built off of, and must be balanced using, the bolt circle and NOT the wheel center hole. Improper use of a tire balancer that centers the wheel on the hub bore, not the bolt circle, will result in an incorrect reading for rim runout as the center hole is not in the perfect center of the bolt pattern. The only machine capable of performing a lug centric balance is the Hunter GSP 9700 with the flange plate bolt circle adapter and no centering cone.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Details

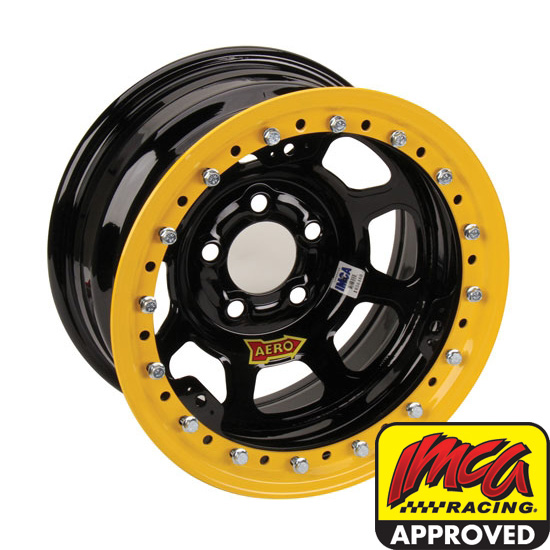

This 5 on 5 bolt pattern, steel beadlock, 15 inch wheel comes with IMCA sticker. All center discs are made out of HSLA steel. The inner and outer rings are CNC laser cut and use 16 zinc plated flange bolts. Mudcover tabs are incorporated into the inner ring to eliminate the need for welding.

All center discs are made out of HSLA steel
Inner and outer rings are CNC laser cut and use 16 zinc plated flange bolts
Mudcover tabs are incorporated into the inner ring to eliminate the need for welding
All beadlocks include mudcover installation kits
IMCA approved
15 inch wheel
23 lbs.
15 x 8"
5 on 5" bolt pattern
2, 3, or 4" backspace
Available in Silver, Black, or Chrome
Beadlock ring color matches wheel color

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article. Racing Wheel Principles.

Guides & Documents

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Specifications

KEY SPECS
MFG. Part #	Select Wheel Type, Color and Backspace to see
Brand	Aero
Wheel Diameter	15 Inch
Width	8"
Wheel Bolt Pattern (in.)	5x5 in.
Wheel Bolt Pattern (mm)	5x127 mm
Wheel Backspace	Select Wheel Type, Color and Backspace to see
Wheel Material Type	Steel
Wheel Offset	Select Wheel Type, Color and Backspace to see
Wheel Backspace Range	Select Wheel Type, Color and Backspace to see
Finish	Select Wheel Type, Color and Backspace to see
Color	Select Wheel Type, Color and Backspace to see
Beadlock Included	Yes
Material Type	Steel
Bolt Pattern	5 on 5"
Diameter	15"

GENERAL
Sold in Quantity	Each
Notes	Beadlock ring color matched to wheel color.
Beadlock Functional	Yes
DOT-Approved	No
Position	Front and Rear
Weight	23 lbs.
Valve Stem Included	No
Lug Nut Seat Style	45 Degree Conical
Center Cap Included	No
Lug Nuts Included	No
Beadlock	Yes
