Product Summary

64-67 Chevy Chevelle, Tubular Control Arm Style

  • Heavy duty tubular design and black powder coated finish is the perfect addition to any resto-mod build
  • New greaseable ball joints come pre-installed and are OEM replacement designs making service parts readily available
  • No welding cutting or modifications to install
  • Springs are made from cold wound, heat treaded chrome silicone steel
  • The threaded aluminum body shocks allows easy ride height adjustment

Comes as a Kit

Key Specs

Control Arm StyleTubular
Spring TypeCoilover
FinishPowder Coated
Shock AdjustabilitySingle Adjustable
Hardware IncludedYes

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Speedway Motors 9100297 Details

Control Arms

If you want a superior set of tubular control arms for your GM A-Body car, including 1964-1972 Chevelle, we've got you covered. These control arms are specifically designed to plant the tires to the ground with improved geometry for modern tire design and increased adjustability for street/track performance. A-arm set comes complete with bushings, ball joints, bump stops, and are powder coated black.

  • Kit includes both upper and lower control arms
  • All new components
  • Heavy duty tubular design with Delrin bushings
  • Additional caster built into upper arms
  • Improved geometry to firmly plant modern radial tires
  • Durable black powder-coated finish
  • Maintains stock ride height
  • Upper Control Arm Shaft Bolts/Nuts
  • Lower Frame Bolt Set


Sway Bar

This front sway bar kit is designed as a performance replacement upgrade for your classic GM A-body muscle car. Features a 1-1/4" diameter solid steel bar and comes with all hardware needed for a successful installation. If your GM A-body came with an anti-sway bar from the factory, chances are this kit will be a direct replacement. If it did not, a small amount of drilling will be required for installation of the sway bar kit.

  • Achieve flatter cornering
  • Complements rear sway bar to reduce understeer and gain more neutral handing
  • Adds to cornering stability at speed
  • Solid steel 1-1/4" diameter bar
  • Includes polyurethane bushings for increased responsiveness
  • Black powder coated finish
  • Corrosion resistant zinc plated hardware included


Shock and Springs

These silver powder coated springs fit perfectly with QA1’s Pro Coil Shock Systems. Made with the highest quality materials, QA1 springs are strong, consistent and have a long life.  Features 3.5" upper i/d, 2.5" lower i/d, and a 10" length.

Chrome Silicon Steel (CrS)
All QA1 springs are manufactured using the highest quality materials for high strength, consistency and long life.

Cold Wound – Heat Treated – Shot Peened
All QA1 springs go through intensive manufacturing processes to ensure consistency, accuracy and durability.

Protective Coated
QA1's GM Pro Coil  springs are silver powder coated for excellent longevity.

High Travel Options
Springs with HT in the part number are high travel springs. The high travel springs have fewer coils and a smaller wire diameter. As a result, they are lighter and have increased travel due to the larger distance between the coils. These lighter springs reduce unsprung weight and react faster, optimizing suspension performance.

Lengths and Rates Marked
All QA1 springs are clearly marked with the free length of the spring and spring rate for quick and easy identification.

All QA1 springs are lifetime guaranteed to remain within 2% of the original free height and rate under normal operating conditions.


Coilover Plates

Speedway tubular coilover plates allow you to reinforce the lower control arm when running coilovers.

  • 5-1/2 inch outside diameter
  • 1/4" thick
  • 3/8" bolt holes, spaced 2-11/16" center to center
  • 2" x 2" square center hole


Kit Includes

(1) 1964-72 GM A Body Chevelle Tubular Upper and Lower Control Arms

(1) Replacement Upper Control Arm Shaft Bolts/Nuts, 1964-74 GM

(1) Classic Headquarters W-547A Lower Frame Bolt Set, Nova/Camaro

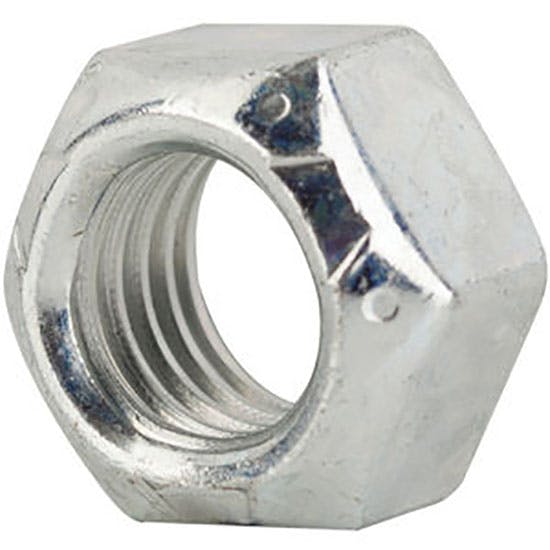

(4) 1/2"-13 Zinc Plated Steel Top Lock Nut

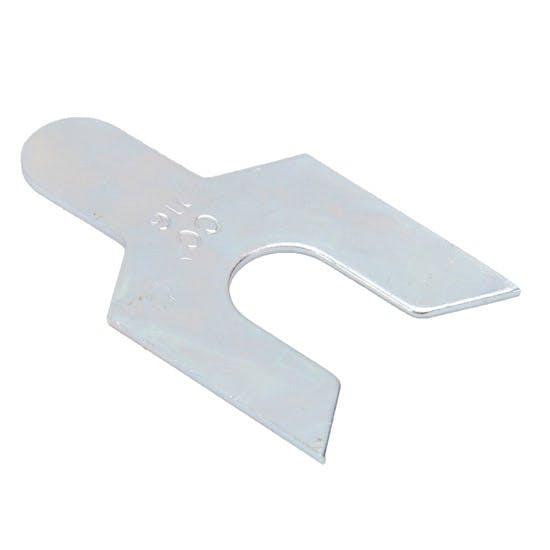

(6) A-Arm Control Arm 1/32 Inch Alignment Shim, 9/16 Slot Size, Zinc

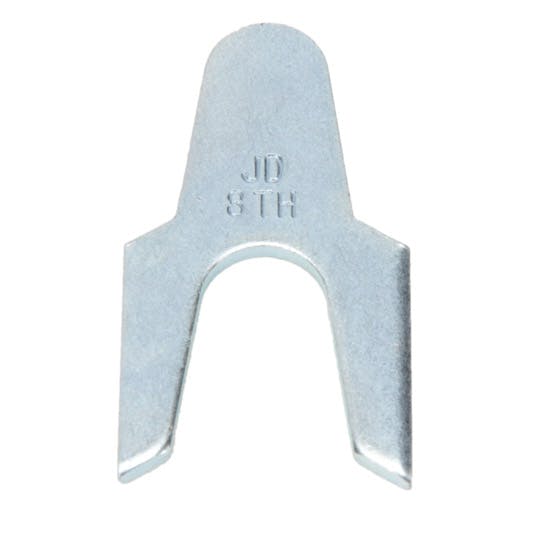

(6) A-Arm Control Arm 1/8 Inch Alignment Shim, Zinc

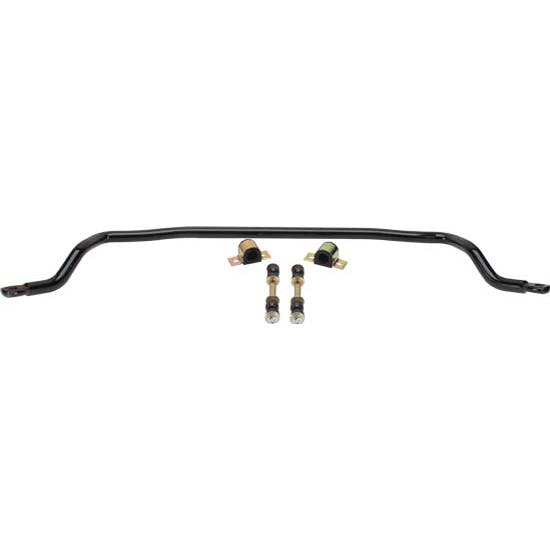

(1) Front Sway Bar Kit, 1.25 Inch, 1964-77 GM A-Body

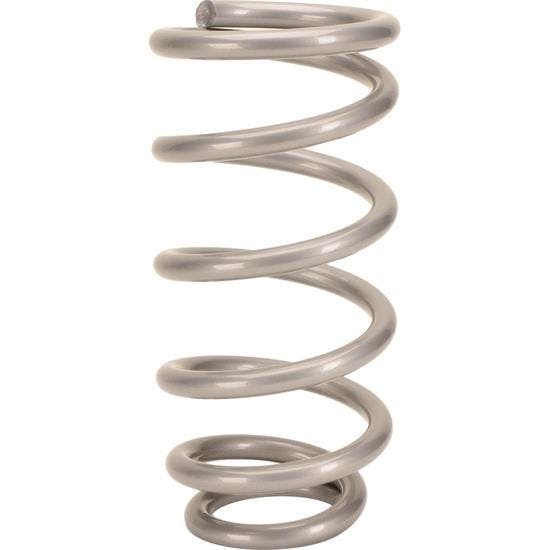

(2) QA1 GMP Coil-Over Spring

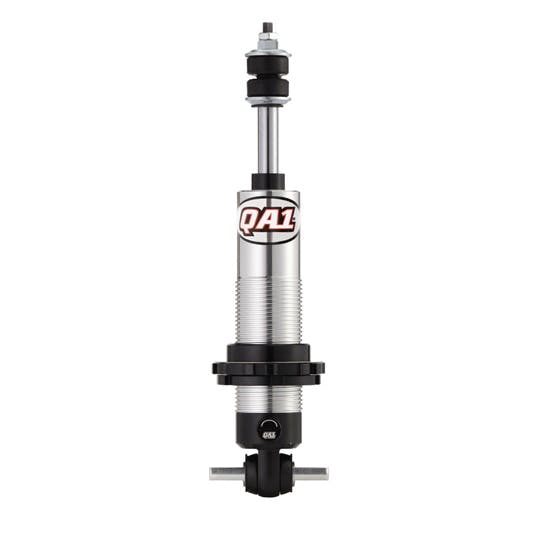

(2) QA1 Adjustable Pro-Coil Shock

(1) Tubular Lower Control Arm Coilover Reinforcement Plate

Speedway Motors 9100297 Specifications

MFG. Part #9100297
BrandSpeedway Motors
Control Arm StyleTubular
Spring TypeCoilover
FinishPowder Coated
Shock AdjustabilitySingle Adjustable
Hardware IncludedYes
Spring FinishPowder Coated
Sold in QuantityKit
