35-40 Ford Chassis Kit w/ MII IFS & Coilover Rear Suspension

#9101940

35-40 Ford Chassis Kit w/ MII IFS & Coilover Rear Suspension

Name: 35-40 Ford Chassis Kit w/ MII IFS & Coilover Rear Suspension
Brand: Speedway Motors
SKU: 9101940
Price: 5914.99 USD
Availability: BackOrder
Rating: 3.8 (4 reviews)

4 Reviews

15 Questions

Build a strong foundation for your '35-'40 Ford with this completely bolt together frame kit
Frame rails are laser cut, 11 gauge steel C-channel, welded on a rail fixture to ensure correct curvature and with all OEM holes pre-drilled for ease of assembly

$5,914.99

/kit

On Backorder

This part is Backordered. We estimate this item will ship on or before November 1st.

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Build a strong foundation for your '35-'40 Ford with this completely bolt together frame kit
Frame rails are laser cut, 11 gauge steel C-channel, welded on a rail fixture to ensure correct curvature and with all OEM holes pre-drilled for ease of assembly
Bolt on front crossmember features proven Mustang II geometry for increased handling and performance and interlocking boxing plates for additional strength, IFS kits sold separately
Speedway exclusive bolt in X-member made of 1-1/2" O.D. .095" wall steel tubing. Includes bolt-in boxing plates, drop-out transmission mount, brake pedal and booster/master cylinder mount and hardware. Accepts standard GM automatic transmission mounting as well other popular transmissions and works with 2" exhaust tubing
New Ford 9" rear housing and triangulated four bar suspension with updated coil over shocks offers adjustability and improved handling over stock leaf springs

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	9101940
Brand	Speedway Motors

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9101940 Details

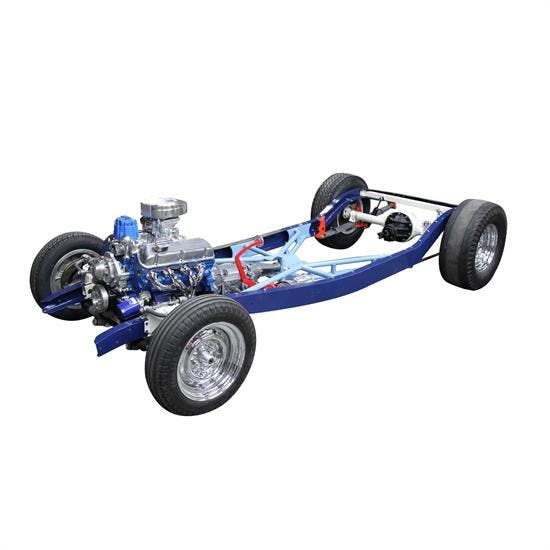

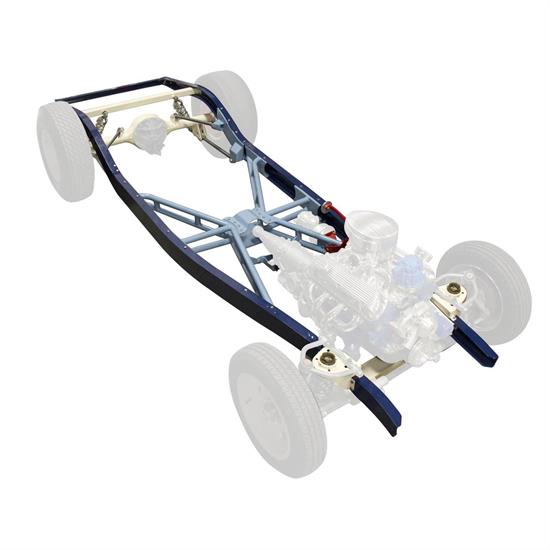

This complete front and rear independent suspension kit contains everything you need to build a great foundation for your fat-fendered 1935-1940 Ford. There is no welding required and all components bolt together.

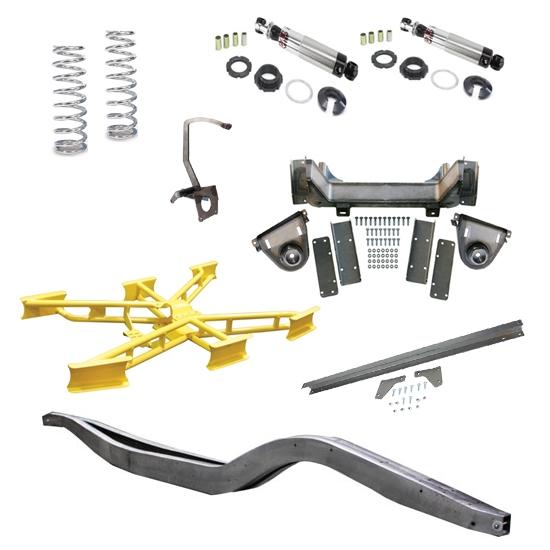

Kit Includes:

Pair of 11 gauge frame rails
Speedway exclusive Bolt together center X-member

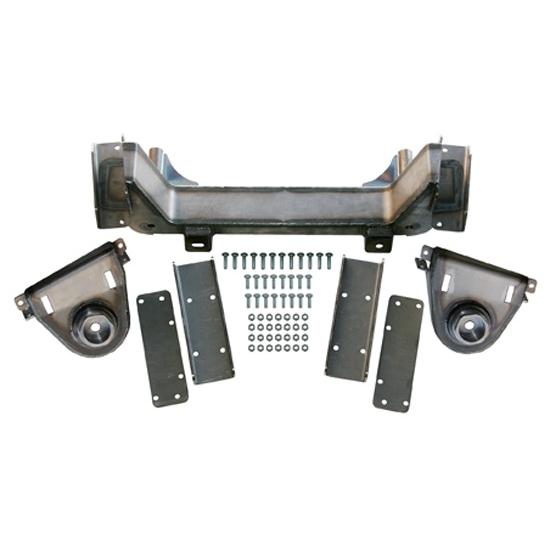

Bolt-On Mustang II Crossmember assembly
Rear frame cross support
Hardware

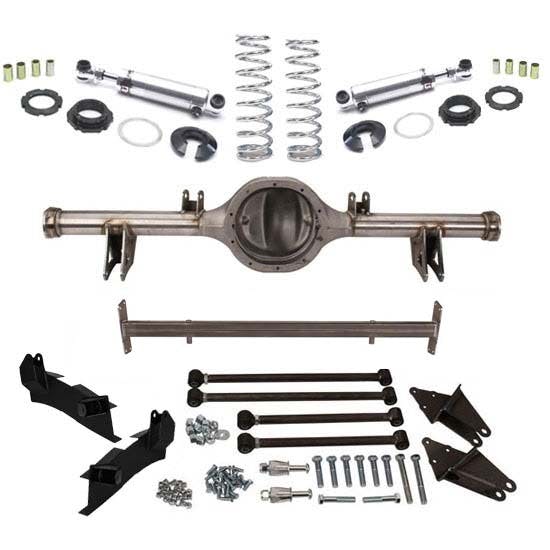

Also Includes - Bolt-On triangulated rear four-bar kit!

Containing:

56"wide 9"Ford housing with all mounts welded
4-link kit
Coil-over assemblies
Crossmember

Component Features:

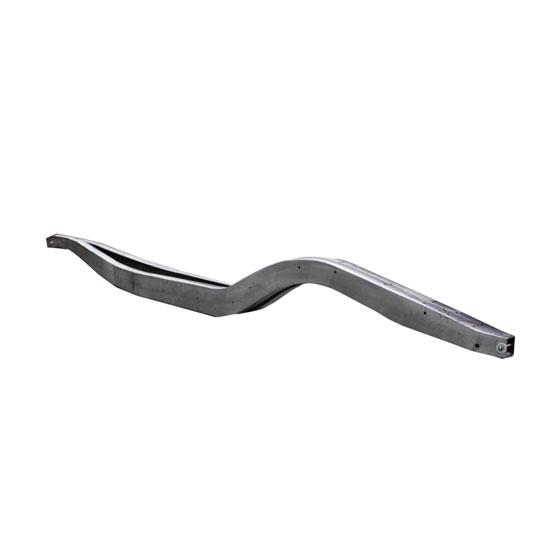

1935-40 Ford Frame Rails (91603540): Laser cut C-channel frame rails welded on a rail fixture to ensure correct curvature with all OEM holes pre-drilled for ease of assembly.

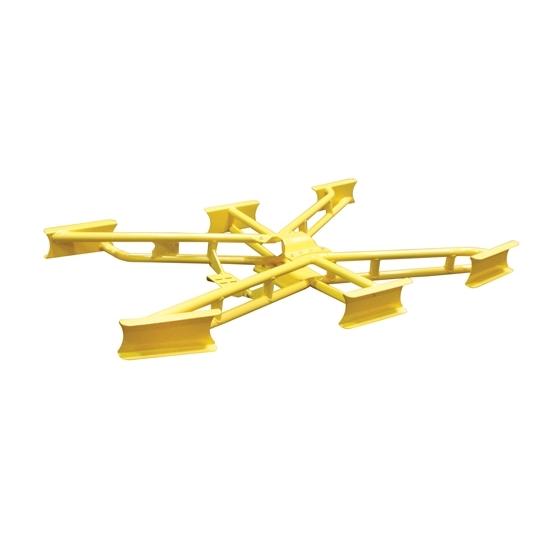

1935-40 Ford Bolt-In Tubular X-member (91063540): Designed for stoc, original 1935-40 Ford frames and made of 1-1/2" O.D. .095" wall steel tubing. Includes bolt-in boxing plates, drop-out transmisson mount, brake pedal and booster/master cylinder mount and hardware. Accepts standard GM automatic transmission mounting as well other popular transmissions and works with 2" exhaust tubing.

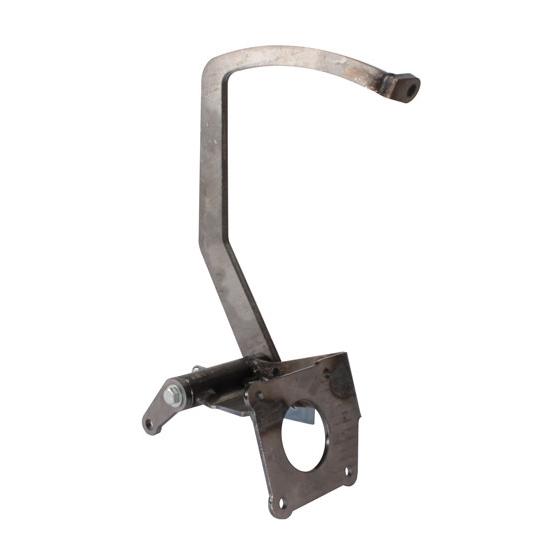

Bolt-in Brake Pedal Kit (91073540): Designed for use with our OEM replacement Tubular X-member for 1935-40 Fords.

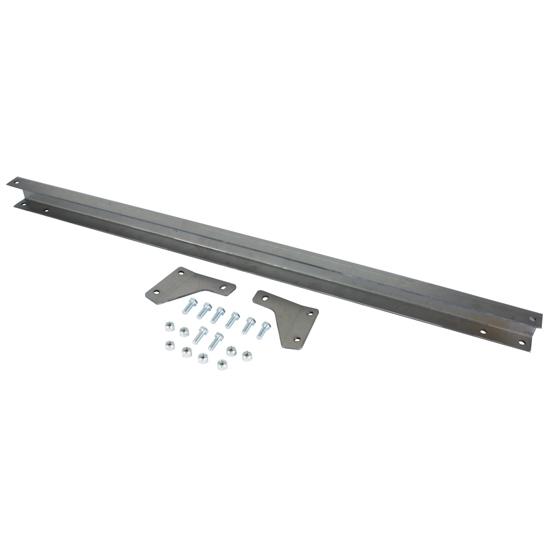

1935-40 Ford Bolt-In Rear Frame Cross Support (91083540): Bolt in channeled rear support and gussets for'35-'40 Ford cars. Includes a crossmember and the bolts to attach it.

Note: This crossmember must be used with the non-strut rod type lower control arms. As designed, it will not work with stock type or the O/E type lower control arms that make use of a strut rod.

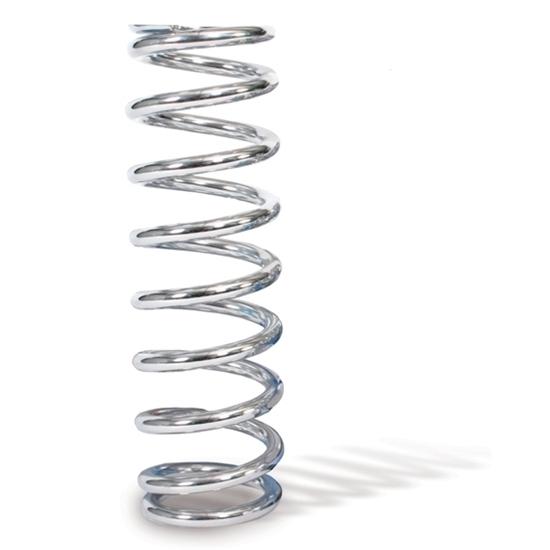

AFCO 23250CR 10 Inch Extreme Chrome Coil-Over Spring, 250 Rate (10623250CR): High quality chrome finish looks great from any angle - not just on the outside edge. Built with industry exlusive 360° polished wire and carries a lifetime warranty to remain within 2% of the original nominal free height.

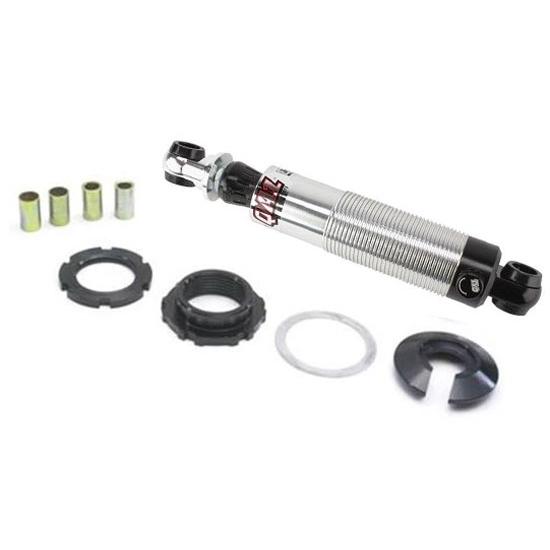

QA1 US402 Adjustable Shock and Coilover Kit w/o Spring, 12 Inch (7214855): These premiumaluminum bodied shocks arenot a revalved race shock - they were built specifically for street rods.QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rod's ride.Comes with steel coilover sleeves for the shock eyes to fit 1/2" boltsor 5/8" bolts. Features: - Billet aluminm body, - 5/8" centerless ground, hard chrome plated solid piston rod, - Deflective Disc Valving, - 3-step sealing system, - 18-position adjuster knob changes the rebound valving, - Allows suspension control in one easy-to-reach location, - 100% dyno tested and serialized, -Revalvalveable and rebuildable by QA1 authorized service centers

Bolt-In 1935-40 Ford Triangulated Four-Bar Rear Suspension Kit (91003540): Allows you to assemble a complete frame and suspension using only basic hand tools and a drill. Will greatly improve both the ride quality and handling. Features: New 9" Currie 56" long housing with welded brackets, Chromoly four bars with urethane bushings, 11" steel bodied coil-over shocks. Allows for a maximum tire width of 8" if used with stock '35-'40 Ford fenders.

Charts

910-43540 Crossmember Instructions (PDF)

91063540 Instructions (PDF)

Guides & Documents

Complete Chassis Kits Installation Instructions (9101940)

Transmission Crossmembers Installation Instructions (91063540)

Crossmembers Installation Instructions (91083540)

Crossmembers Installation Instructions (91043540)

Coil Springs Technical Information (10623250CR)

Coilovers Technical Information (7214855)

Coilovers Installation Instructions (7214855)

Speedway Motors 9101940 Specifications

KEY SPECS
MFG. Part #	9101940
Brand	Speedway Motors

Ratings & Reviews

3.8

4 Reviews

Overall Assessment

Customers generally suggest that our hot rod frame kit is a cost-effective and convenient solution for car rebuilds, despite some assembly challenges. The majority mentioned the high quality of the included bolts, spacers, and fittings; for a few, the need for additional custom work, including slight frame adjustments and drilling, was a surprise. Nevertheless, these customers also expressed satisfaction with the assembly's overall practicality and final outcome, with some planning repeat purchases for future builds. They also underscored our frame kit's superior quality compared to similar kits on the market. However, customers did request more detailed instructions to assist first-time users.

Write A Review

3.8

4 reviews

Filter by Ratings

Sort Reviews

Definately buy again

5.0

6 years ago

Shawn

Fort Smith AR

My first real hot rod undertaking. Previous builds were military jeeps and british. I bought to save money as the car I have had a hacked up frame and weird engine I had to litterally cut out of the car. I spent a lot of time over thinking the assembly. Put the cross assembly in and generally use the measurements on the side frames to locate. Used 2" ratchet straps to pull rails in as tight as possible to the x frame and it squared up to 1/8" diagonally. Only adjustment was fore and aft to get the trans mount to measurements re-cinch done. Then added mustang 2 frame to it. Towers to the mustang 2 had to be returned as the bolt holes didn't line up but Speedway sent a whole assembly!. The front of the frame rails were about an inch wide so I used two angle iron braces ; slit the frame top and bottoms both sides, squared it up and re-welded. It is perfect. The triangulated rear with no instructions was the same. Over thought it. The frame mounts only go in one way. I had to heat up the rear most top pieces and massage them in. There was no way to move them once in but when in they were exactly the same measured location side to side. Put in bars with threaded all the way in and location is exactly 1" too far to the rear. I've heard this is actually better for the look of the vehicle. No issue if I want 112" as I simply will cut off 1". Every bolt, spacer , fitting etc is perfect. I am going back with a 1950 Merc flatty so I had to notch out the front where the radiator goes and make custom motor mounts (no one has them for mustang II) I am going to box in some areas of the frame but I am glad I went this way. love the rear axle assembly. Saved several thousand going this route and i really like how it turned out.

Would Recommend

I would recommend this frame to everyone.

4.0

8 years ago

Tailspinted

Cross Hill, S.C.

Verified

Limited instructions for a first timer...good thing I had a good partner. A lot of holes in sides of frames we're still trying to figure out.

Would Recommend

I would buy this product again when I start my next build.

5.0

9 years ago

Sexy Ralph

Victorville

Verified

This is the second time I have purchased Chassis, this one different than the first as it's a different build. They always nail for me. Thank you.

Would Recommend

I was very disappointed with this assembly

1.0

9 years ago

Ztruckman75

So cal

Verified

I spent 7 grand on this chassis and all the "bolt on accessories " that go with it. The K member that comes with the kit bolts together nicely, but after following the instructions to the letter , the dimensions for the frame are way off the width of the rear is 3.5 inches to wide , none of the holes for the k member are pre drilled in the k member or the frame. the frame rails have no pre drilled holes for the speedway recommended IFS front end i bought for the chassis . Don't have the time to ship back and hope the next one is right, so if you expect to just buy this chassis and bolt it together with all the parts speedway says will bolt right on , your sadly mistaken. If you still purchase this kit be prepared to cut ,drill and lay out the bulk of this project yourself.

Would Not Recommend

Showing 4 of 4 reviews

Questions & Answers

15 Questions • 11 Answers

Sort Questions

I have this frame. I am pleased with it. Now as I am assembling the rest of the car I find I need or want to use a hydraulic clutch and I would like to mount under the floor using the mount. It came with the underfloor brake pedal. Do you have an under floor brake/hydraulic clutch mount for this?

by Shawn

• 6 years ago

1 answer

View Answer

Could this setup be used for a T-bucket instead of 35-40 Ford? If so, would the 2" drop Mustang II front end work on a T? My plan is to use a 4 cyl. engine and 5 spd trans for a T-bucket build, but I would rather use the Must II front end instead of a strait axle. Or, can the Mustang II front end be put on one of your T-bucket frames? Thanks.

by Rick

• 7 years ago

1 answer

View Answer

Do you have a bolt on engine mount for a small block chevy engine that is compatible with this product?

by Mike

• 8 years ago

2 answers

View Answers

Will this set up work with on a 36 ford pick up?

by Ztruckman75

• 9 years ago

1 answer

View Answer

Can you supply motor mounts for a flathead or a small block ford to fit this frame?

by A-A-Ron

• 9 years ago

1 answer

View Answer

can I order this kit without the rear diff. and suspension? I want to use your leaf spring kit in the back?

by the wrench

• 9 years ago

1 answer

View Answer

Hi Will this set up available to run under a coupe? Cheers Steve Allan

by Steve Foose

• 10 years ago

1 answer

View Answer

Can I buy the frame only? So I can use my own suspension

by Jason

• 10 years ago

1 answer

View Answer

Can I get coil over shocks and a power rack and pinion for the 91034202 front suspension? Or would a different kit for this chassis kit be better? Thanks for your previous reply.

by Dave

• 10 years ago

1 answer

View Answer

Which of the Speedway Mustang II front suspension kits will complete the front end of this chassis kit?

by Dave

• 10 years ago

1 answer

View Answer

Load More Questions

10 of 15 questions shown

Fitment

1935-1940 Ford 1/2 Ton Pickup

1939-1940 Ford Deluxe

1935 Ford Model 48

1935 Ford Model 50

1936 Ford Model 67

1936 Ford Model 68

1937 Ford Model 74

1937 Ford Model 78

1938 Ford Model 81 A

1938 Ford Model 82 A

1940 Ford Pickup

1935-1940 Ford Sedan Delivery

1939-1940 Ford Standard
