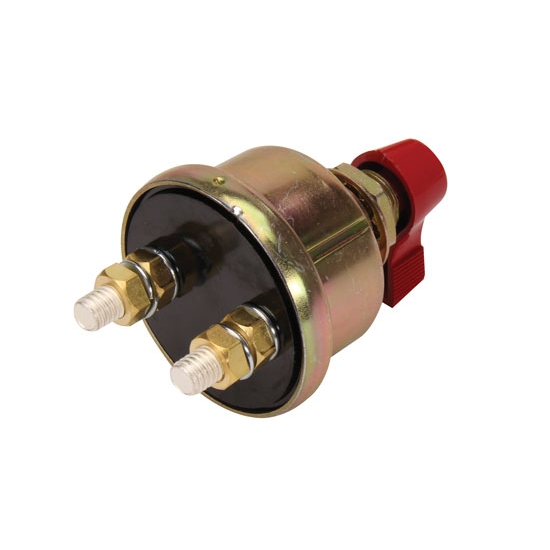

Two Post Battery Disconnect Switch

Specs
Material Type:
Steel
Finish:
Zinc
Hole Diameter:
.75
Mounted Length:
3.50
Positions:
Two
Mounting Thread Material:
Brass
Notes
Two 3/8" copper terminal studs.
Two Post Battery Disconnect Switch
Two Post Battery Disconnect Switch
Two Post Battery Disconnect Switch
Two Post Battery Disconnect Switch

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Remote battery disconnect switch for safety and theft protection. A battery kill switch is required for use with alternators by the NHRA. Battery shut off switch can be remote mounted or where specified for saftey and convenience.
  • 180 amp continuous, 1000 amp instantaneous
  • Die cast lever
  • Fits panel through 3/16" thick

910-64500 Instructions (PDF)

Customer Reviews

Rated 4.8 out of 5 by 22 reviewers.
RATING BREAKDOWN
22 reviews
5 Stars
19
4 Stars
2
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

kips27
Verified Purchaser
Livonia, MI
Product Rating

Good quality

March 03, 2015
I installed the switch on my '27T roadster because the battery is not easily accessible. It serves as a security and safety device. It is well built and heavy duty
Pros:
  • Heavy duty
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

BB the badger
Verified Purchaser
Sellersville,Pa
Product Rating

Battery disconnect

December 20, 2011
received promptly..easy to install...
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dan
Verified Purchaser
Jackson TN
Product Rating

Amazing Switch!

March 02, 2012
Used on race car. Fit well and works well also.
Pros:
  • Easy To Install
  • Works flawlessly
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

t-bucket tim
rochester n.y.
Product Rating

works perfect,small and compact

January 22, 2010
installed in the rear deck of my 1923 ford t-bucket...perfect for cruise nights and car shows with a lot of people around it!!!
Pros:
  • Perfect power disconnect
  • Easy To Use
  • Small
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Leonard
Verified Purchaser
Lynn Haven Fl.
Product Rating

Great item needs bracket

May 23, 2011
Use this product in my 66 Chevelle SS.Not a everyday driving. Use it as a shut off for the power(battery)inside engine bay.Easy to use,only problem it has no mounting bracket.I would pay extra for it, but I just made one.
Pros:
  • Improves Performance
  • Intuitive Controls
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

27 Tudor T
Mpls, MN.
Product Rating

it functions well

January 25, 2010
It works well as a battery disconnect, however, it would be nice if it came with an on/off sticker or plate.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

huntfred1
Verified Purchaser
lorain ohio
Product Rating

works great

May 01, 2011
used to shut off all electrical components when storing my 23 ford model Tbucket.does the job.
Pros:
  • Intuitive Controls
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

challenger3
brainerd mn
Product Rating

many uses for a simple product

August 27, 2010
its a simple instal all parts are included,and can be installed with simple hand tools
Pros:
  • Easly installed
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Butch
Verified Purchaser
Litchfield ,Maine
Product Rating

Works

August 28, 2010
Works perfect,used it mounted on top of battery box cover.(boat style box cover has room enough to drll top and mount switch,(I did shorten two posts on switch to be flush with nuts when tight on cable ends)made neat setup,my battery in bed of 1933 Ford Pickup/streetrod
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Shot Rod
Verified Purchaser
Broken Arrow, OK
Product Rating

Dont let the price fool you

December 11, 2010
Great switch no matter how you interrupt the circuit
Pros:
  • No cheap plastic
  • Heavy duty
  • Foolproof
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 3
91064500

Product Q&A

2 questions : 3 answers

2 answers

Battery Kill switch Can this be used on the negative battery terminal to kill all power on an antique vehicle.

JimmyM
WV
June 19, 2013

Battery Kill switch Can this be used on the negative battery terminal to kill all power on an antique vehicle.

Answers

March 04, 2015
kips27
I used it in my negative lead between the battery terminal and the ground point on the chassis.
June 20, 2013
Jason
Normally the main disconnect switch goes in the positive lead from the battery but on the older positive ground vehicles it would go in the negative lead.
1 answers

I have a one wire alternator hooked directly to the battery positive post. With switch Part no.910-64501 can I just move the direct hook up to the battery to one of the small posts on this switch and have it shut off the alternator as well? I do not have

Chicken soup
Lake Orion, Mi
October 16, 2011

I have a one wire alternator hooked directly to the battery positive post. With switch Part no.910-64501 can I just move the direct hook up to the battery to one of the small posts on this switch and have it shut off the alternator as well? I do not have

Answers

October 18, 2011
John
Part # 91064501 On a two post shut off switch you could hook your alternator lead to the post going to the starter and this way when turned off it would also shut off the alternator. When turned on the alternator would sense the current in the battery and charge as needed.
