IMCA Modified Adj. Upper Control Arms Offset w/ Cross Shaft, 10-1/4 Inch

SAME DAY SHIPPING! Order within the next 4 hours 16 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Zinc
Inside Diameter:
1.83
Outside Diameter:
2.37
Thread Length:
1.82
Thread Pitch:
5/8-18 Right Hand
Garage Sale:
No
IMCA Modified Adj. Upper Control Arms Offset w/ Cross Shaft, 10-1/4 Inch
IMCA Modified Adj. Upper Control Arms Offset w/ Cross Shaft, 10-1/4 Inch

Click image to enlarge

Speeday Motors Logo
X
IMCA Modified Adj. Upper Control Arms Offset w/ Cross Shaft, 10-1/4 Inch

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

Thse IMCA approved upper control arms fit chassis listed and many more.

Item Details

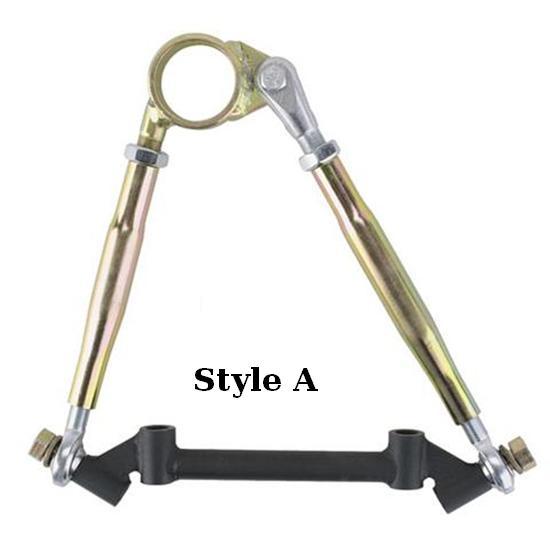

Style A
Speedway chassis
