Adjustable A-Arm with Cross Shaft, Offset Type, 8-3/4 Inch

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Zinc
Overall Width:
10.50
Tube O.D.:
.76
Inside Diameter:
1.83
Outside Diameter:
2.370
Mounting Bolt Center to Center:
6.00
Control Arm Bushing to Ball Joint Center:
8.75
Control Arm Style:
Tubular

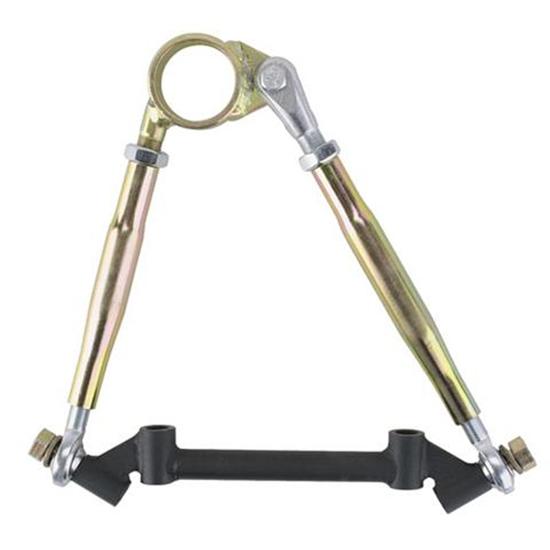

Adjustable A-Arm with Cross Shaft, Offset Type, 8-3/4 Inch

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (1)

Q & A (1)

What's in the Box

Info

Adjustable offset type A-arms with cross shaft allows for easy adjustment of caster/camber, has an IMCA approved cross shaft, and uses a threaded ball joint. For both right hand and left hand side.

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Mod racer 79
Verified Purchaser
Springfield ohio

Easy and quick

August 10, 2016
Was super easy to install very easy to adjust so takes you no time to get your caster and camber exactly where u need it without having to try a bunch of different shims
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

1 answers

How is the 8 3/4 measured from what point to what point is it center of the ball joint to center of the hiem joint? Or center of ball joint to the cross bar mounting flange?

Moose
Champaign il
April 16, 2015

How is the 8 3/4 measured from what point to what point is it center of the ball joint to center of the hiem joint? Or center of ball joint to the cross bar mounting flange?

Answers

April 16, 2015
Eric
Expert
The 8 3/4" length measurement is from the center of the ball joint to the centerline of the front and rear rod ends. If you hold a straight edge at the center of the front and rear rod ends and measure to the center of the ball joint you will come up with 8 3/4" in the middle of the adjustment range of the threaded tubes.
