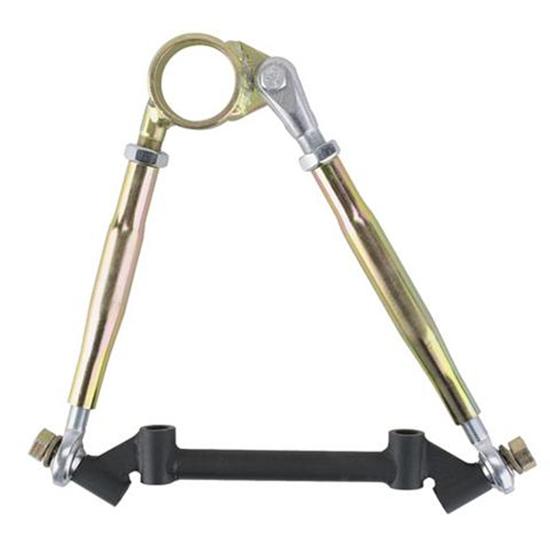

Adjustable A-Arm with Cross Shaft, Offset Type, 7-3/4 Inch

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Zinc
Thread Pitch:
5/8-18 Right Hand
Overall Thickness:
1.00
Inside Diameter:
1.83
Outside Diameter:
2.37
Thread Length:
1.82
Control Arm Style:
Tubular
Adjustable A-Arm with Cross Shaft, Offset Type, 7-3/4 Inch

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (1)

Q & A (2)

What's in the Box

Info

Adjustable offset type A-arms with cross shaft allows for easy adjustment of caster/camber, has an IMCA approved cross shaft, and uses a threaded ball joint. For both right hand and left hand side.

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

midnightexp2002
Petroleum, WV 26180, USA

have to modifie

December 30, 2014
the clevis will not bolt onto the ball joint. the bolt hole will not line up . had to grind the clevis and. the weld on the ball joint holder to make it work
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

This customer was issued a gift card for the modifications that needed to be made in order to make the installation. We apologize for any inconvenience this may have caused and are always happy to help in any way that we can!
Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

how wide is the mounting holes center to center

midnightexp
December 01, 2014

how wide is the mounting holes center to center

Answers

December 02, 2014
EricM
The frame mount holes in the cross shaft are 6" center to center.
1 answers

Where are the measurements drawn from? Center of ball joint to center of cross shaft? Where is center of crosshaft? Assumingly along the outside (Car side) edge of the mounting surface? Thanks -Cam

MrPhotographer
April 02, 2016

Where are the measurements drawn from? Center of ball joint to center of cross shaft? Where is center of crosshaft? Assumingly along the outside (Car side) edge of the mounting surface? Thanks -Cam

Answers

April 04, 2016
Eric
Expert
The length is measured from the center of the ball joint to the far side of the cross shaft where it bolts up to the control arm bracket.
