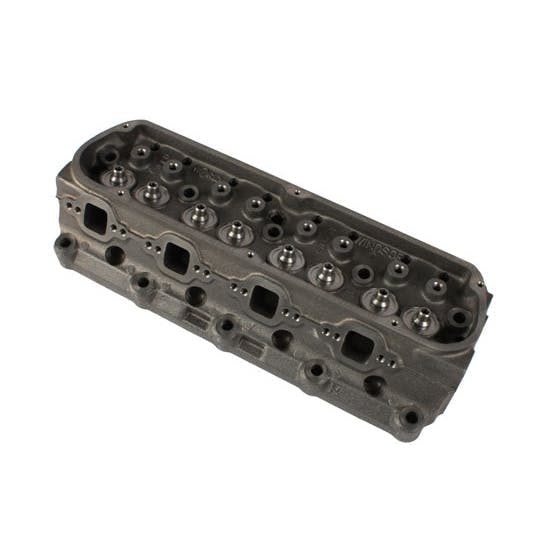

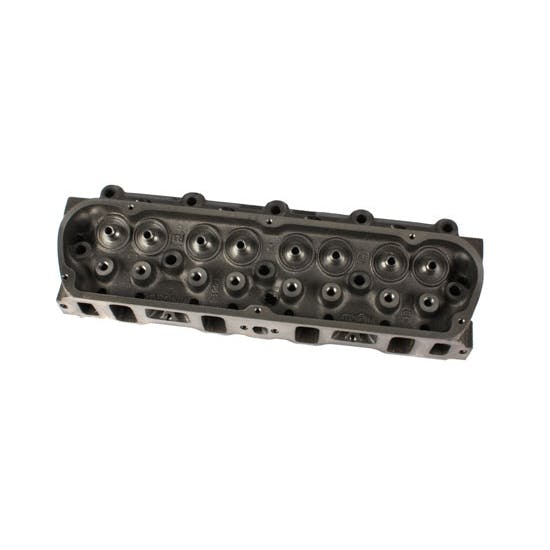

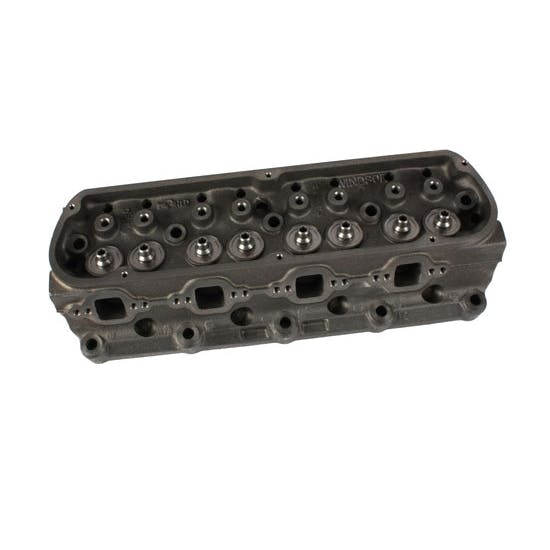

World Products 053040-BARE Ford Windsor Sr. Cylinder Head, Bare
Ford Small Block V8, Bare Cylinder Head Style, Cast Iron, Natural, 200cc Intake Runner Volume
Jack Roush Racing designed this high density cast iron head to be the most powerful head for 5.0 Fords. When it comes to high performance replacements for factory cast iron heads, World’s WINDSOR SR. boasts 200cc ports and 64cc exhausts ports, which flow a substantially larger volume of air than any OEM Ford head. Add a highly efficient combustion chamber design and larger valves, and you have big bolt-on power! This head is also a 50-State emissions legal factory replacement.
- Head is sold individually
- 64cc Combustion Chambers
- Intake Runner: 200cc
- Exhaust Port: 64cc
- Machined for 2.02 Intake & 1.60 Exhaust valves (11/32" stem)
- Valve Seats: Intake (integral), exhaust (hardened)
- Valve Guides: Integral cast iron
- Spring Seats: Machined for 1.560" and 1.250"
- Raised Valve Cover Rail
- Spark Plugs: 14MM, .460" Reach with 5/8" Hex Plugs, Tapered Seat
- Intake Port Dimension 2.00" X 1.12"
- Exhaust Port Dimension 1.30" X 1.22"
Head Flow @ .600" Lift
- 255 intake, 177 exhaust (Super Flow 1050)
- 272 intake, 191 exhaust (Super Flow 600)
All heads flowed with a standard .750" intake plate, without exhaust tube, and 28" of water.
- Head Gasket: Fel Pro 1011 or Speedway 344-1011
- Intake Gasket: Fel Pro 1250
- Exhaust Gasket: Fel Pro 1415 or Speedway 344-1415
Heat Bolt Torque Specs:
- 289-302 Upper row 80 Ft Lbs, Lower row 70 Ft Lbs.
- 351W All Bolts 105 Ft Lbs.
- Rocker Arm Studs 55 Ft Lbs, Using Thread Sealent Upon Installation
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
