Product Summary

Universal Fit, Firewall Position, Brake Pedals Included

    Key Specs

    MFG. Part #340-15079
    BrandWilwood

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

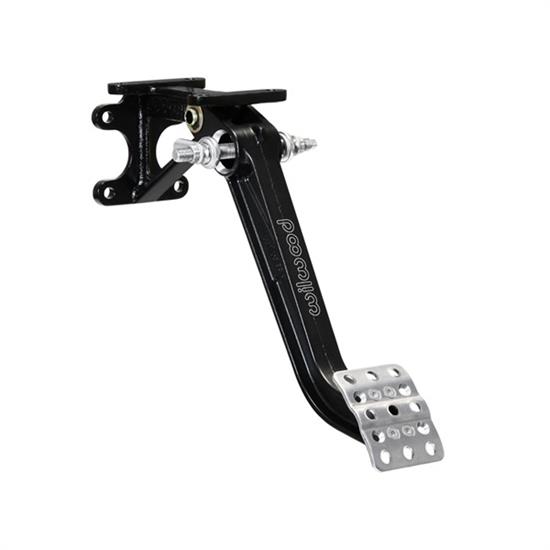

    Wilwood’s Tru-Bar balance bar system is now available in a Forward Swing mount pedal with a 7:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

    • Aluminum Construction
    • Black E-Coat Finish
    • Forward Mount Facing

    Specifications

    KEY SPECS
    MFG. Part #340-15079
    BrandWilwood
    GENERAL
    PositionFirewall
    Master Cylinder Mount TypeForward
    Pedals IncludedBrake
    Material TypeAluminum
    FinishEDP Coated
    ColorBlack
    Hardware IncludedYes
    Sold in QuantityEach
    Mount PositionSwing
    Mount FacingForward
    Balance BarYes
    Pedal 1 Length12.11"
    Pedal 1 Ratio7.0 to 1
    Pedal 2 Ratio
    GTIN Code889545074161
