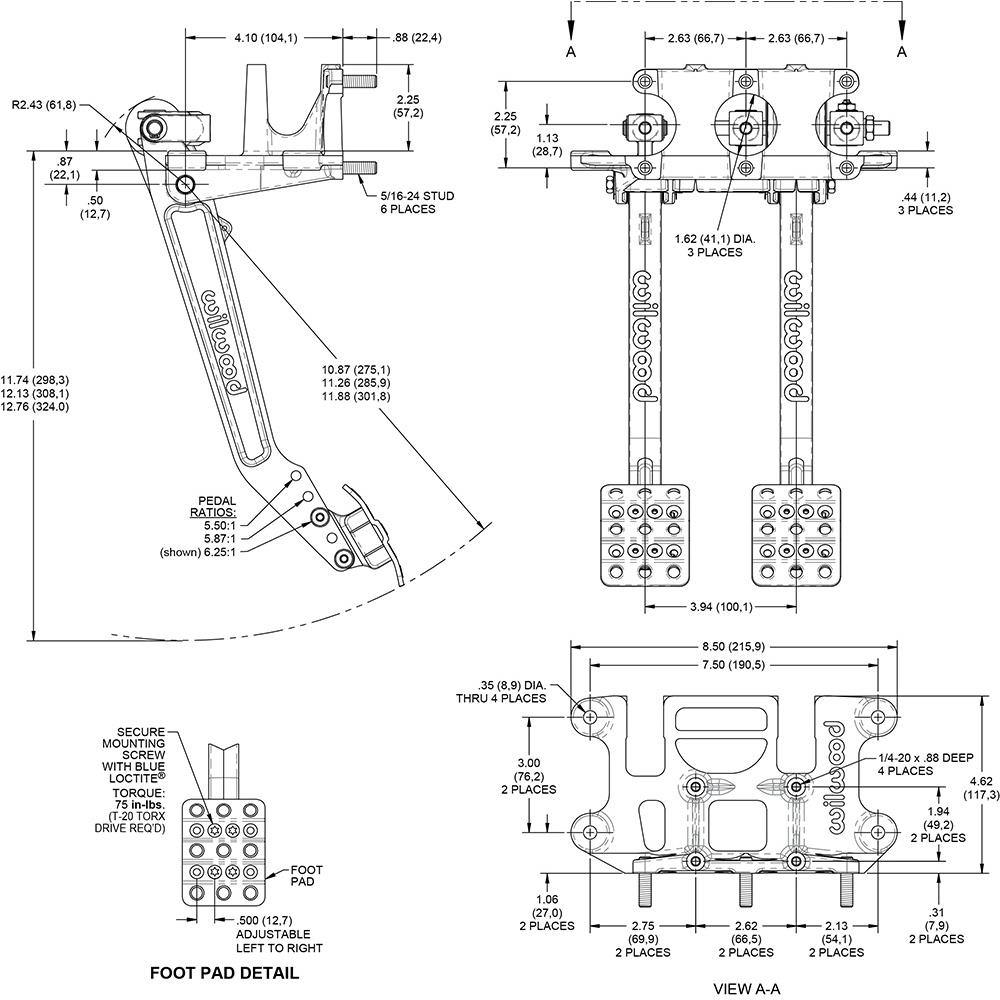

Wilwood 340-16385 Reverse Mount Brake And Clutch Pedal 5.5-6.25:1

#83534016385

Wilwood 340-16385 Reverse Mount Brake And Clutch Pedal 5.5-6.25:1

Adjustable ratio balance bar brake pedal and clutch pedal combo, in a reverse swing hanging assembly
Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort
A clutch master cylinder and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning

$356.87

/each

In Stock

$373.74

Save $16.87

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Clutch/Brake Pedals Included, Aluminum

Adjustable ratio balance bar brake pedal and clutch pedal combo, in a reverse swing hanging assembly
Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort
A clutch master cylinder and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning
The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference
The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms

See more details

Key Specs

MFG. Part #	340-16385
Brand	Wilwood
Material Type	Aluminum
Finish	Black E-Coat

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 340-16385 Details

Reverse Swing Mount Brake and Clutch Pedal-Adj Rt

Adjustable ratio balance bar brake pedal and clutch pedal combo, in a reverse swing hanging assembly
Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort
A clutch master cylinder and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning
The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference
The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms
The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments
A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel
This pedal accepts any three Wilwood 2.25 inch vertical mount flange single outlet master cylinders

Guides & Documents

Brake Pedal Assemblies Installation Instructions (83534016385)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 340-16385 Specifications

KEY SPECS
MFG. Part #	340-16385
Brand	Wilwood
Material Type	Aluminum
Finish	Black E-Coat

GENERAL
Pedals Included	Clutch/Brake
Color	Black
Hardware Included	Yes
Sold in Quantity	Each
Mount Position	Swing
Mount Facing	Reverse
Balance Bar	No
Pedal 1 Ratio	5.5:1
Pedal 2 Ratio	6.25:1
GTIN Code	889545100495
