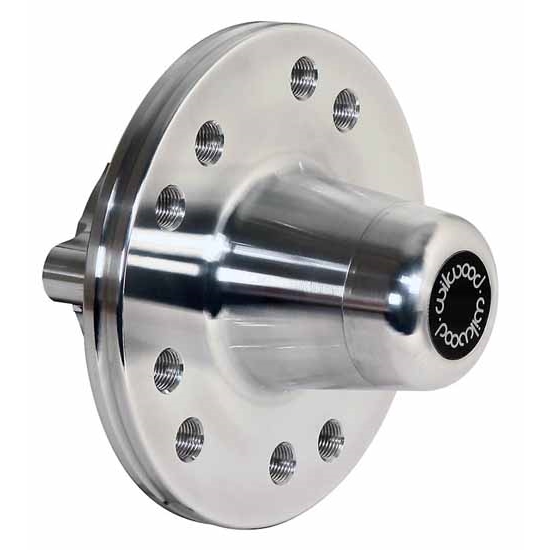

Wilwood 270-7309 Front Hub, Vented Rotor, 80-87 GM G-Body, 5x4.50/4.75

-7%

Wilwood 270-7309 Front Hub, Vented Rotor, 80-87 GM G-Body, 5x4.50/4.75
Wilwood

|

#8352707309

Wilwood 270-7309 Front Hub, Vented Rotor, 80-87 GM G-Body, 5x4.50/4.75

$154.93

/each

In Stock

$167.33

Save $12.40

Order soon, only 3 left in stock!


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Aluminum, Natural, 5 x 4.50" Hub Bolt Circle 1

    See more details

    Key Specs

    MFG. Part #270-7309
    BrandWilwood
    Wheel Bolt Pattern (in.)5x4.5 in. | 5x4.75 in.
    Material TypeAluminum
    FinishNatural
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 270-7309 Details

    Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

    Charts

    Wilwood 270-7309 Specifications

    KEY SPECS
    MFG. Part #270-7309
    BrandWilwood
    Wheel Bolt Pattern (in.)5x4.5 in. | 5x4.75 in.
    Material TypeAluminum
    FinishNatural
    GENERAL
    Hub Bolt Circle 15 x 4.50"
    Hub Bolt Circle 25 x 4.75"
    Adapter Bolt Circles (6-bolt)6 x 6.25
    8-Bolt Type8 x 7.00"
    Mount TypeAdapter
    Stud Diameter1/2-20
    Stud Diameter 21/2-20
    Stud Diameter 31/2-20
    Offset0.81"
    Rotor Compatibility5 x 3.88"
    Weight3.2 lbs.
    GTIN Code889545069167
    Sold in QuantityEach
