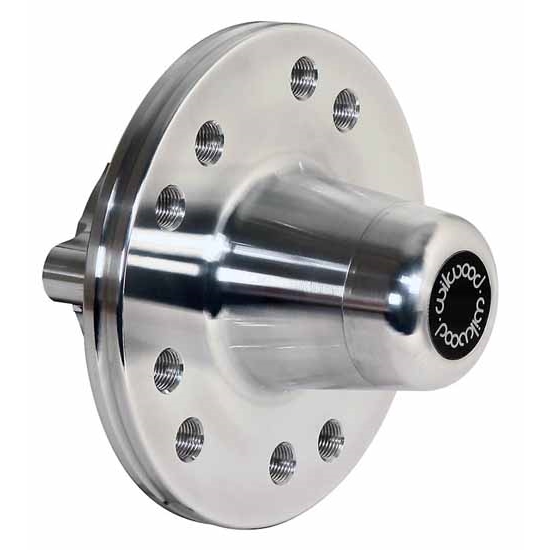

Wilwood 270-12038 Front Drum/Disc Hub, Vented Rotor, 1969-70 Impala
Wilwood 270-12038 Front Drum/Disc Hub, Vented Rotor, 1969-70 Impala

Wilwood 270-12038 Front Drum/Disc Hub, Vented Rotor, 1969-70 Impala

Aluminum, 5 x 4.50" Hub Bolt Circle 1, 5 x 4.75" Hub Bolt Circle 2, 8 x 7.00" 8-Bolt Type

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 270-12038 Front Drum/Disc Hub, Vented Rotor, 1969-70 Impala
Wilwood 270-12038 Front Drum/Disc Hub, Vented Rotor, 1969-70 Impala
Wilwood 270-12038 Front Drum/Disc Hub, Vented Rotor, 1969-70 Impala
Wilwood 270-12038 Front Drum/Disc Hub, Vented Rotor, 1969-70 Impala
X
Wilwood 270-12038 Front Drum/Disc Hub, Vented Rotor, 1969-70 Impala
Wilwood 270-12038 Front Drum/Disc Hub, Vented Rotor, 1969-70 Impala
Zoomed In Image
Part # 83527012038
Save 7%
$124.93
$134.93
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Wheel Bolt Pattern (in.):
5x4.5 in. | 5x4.75 in.
Material Type:
Aluminum
Finish:
Natural
Hub Bolt Circle 1:
5 x 4.50"
Hub Bolt Circle 2:
5 x 4.75"
Adapter Bolt Circles (6-bolt):
6 x 6.25
8-Bolt Type:
8 x 7.00"
Mount Type:
Adapter
Stud Diameter:
1/2-20"
Stud Diameter 2:
1/2-20"
Stud Diameter 3:
1/2-20"
Offset:
0.81"
Rotor Compatibility:
5 x 3.88"
Weight:
3.3 lbs.
MFG. Part #:
270-12038
GTIN Code:
889545068511
Sold in Quantity:
Each

Info

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

Dimensions Sheet (PDF)
