#83527011050

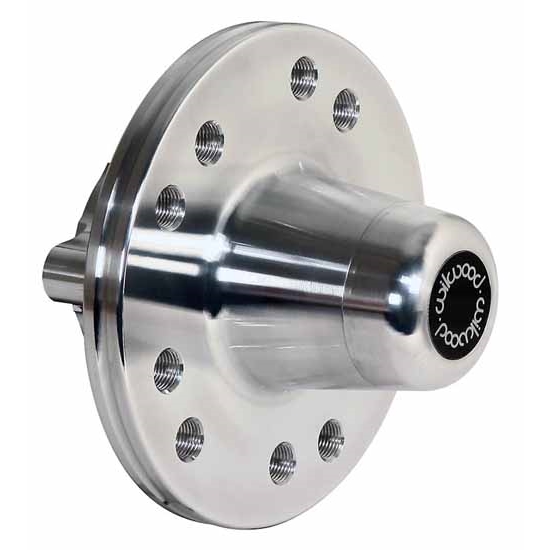

Wilwood 270-11050 Front Hub, Vented Rotor, 70-78 Camaro, 5 x 4.50/4.75
$164.29
/each
Factory Shipped
$171.44
Save $7.15
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| MFG. Part # | 270-11050 |
| Brand | Wilwood |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Material Type | Aluminum |
| Finish | Natural |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 270-11050 Details
Wilwood 270-11050 Details
Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.
Charts
Dimensions Sheet (PDF)
Guides & Documents
Wilwood 270-11050 Specifications
Wilwood 270-11050 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 270-11050 |
| Brand | Wilwood |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Material Type | Aluminum |
| Finish | Natural |
| GENERAL | |
| Hub Bolt Circle 1 | 5 x 4.50" |
| Hub Bolt Circle 2 | 5 x 4.75" |
| Adapter Bolt Circles (6-bolt) | 6 x 6.25 |
| 8-Bolt Type | 8 x 7.00" |
| Mount Type | Adapter |
| Stud Diameter | 1/2-20 |
| Stud Diameter 2 | 1/2-20 |
| Stud Diameter 3 | 1/2-20 |
| Offset | 0.81" |
| Rotor Compatibility | 5 x 3.88" |
| Weight | 3.5 lbs. |
| GTIN Code | 889545068382 |
| Sold in Quantity | Each |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
1 Question • 1 Answer
What rotor is needed to match stock caliper on a 70-78 camaro
by Terry Gentry
• 8 years ago
1 answer
View Answer
1 of 1 questions shown
Fitment
Fitment
1970-1978 Chevy Camaro
