#83527011048

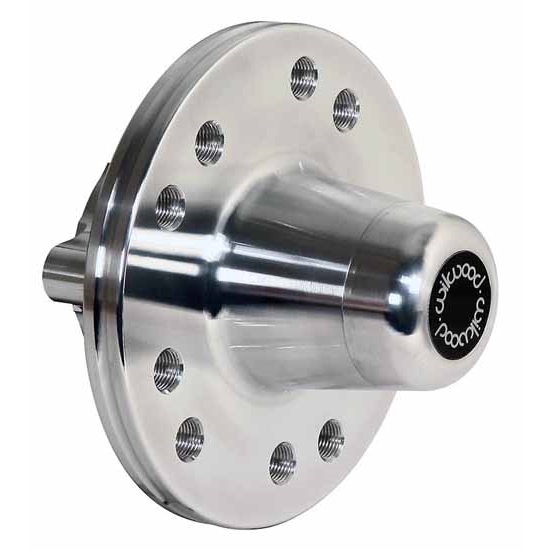

Wilwood 270-11048 Front Hub, Vented Rotor, 79-81 Camaro, 5 x 4.50/4.75
$144.31
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before January 2nd.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Aluminum, Natural, 5 x 4.50" Hub Bolt Circle 1
See more details
Key Specs
| MFG. Part # | 270-11048 |
| Brand | Wilwood |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Material Type | Aluminum |
| Finish | Natural |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 270-11048 Details
Wilwood 270-11048 Details
Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.
Charts
Dimensions Sheet (PDF)
Guides & Documents
Wilwood 270-11048 Specifications
Wilwood 270-11048 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 270-11048 |
| Brand | Wilwood |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Material Type | Aluminum |
| Finish | Natural |
| GENERAL | |
| Hub Bolt Circle 1 | 5 x 4.50" |
| Hub Bolt Circle 2 | 5 x 4.75" |
| Adapter Bolt Circles (6-bolt) | 6 x 6.25 |
| 8-Bolt Type | 8 x 7.00" |
| Mount Type | Adapter |
| Stud Diameter | 1/2-20 |
| Stud Diameter 2 | 1/2-20 |
| Stud Diameter 3 | 1/2-20 |
| Offset | 0.81" |
| Rotor Compatibility | 5 x 3.88" |
| Weight | 3.5 lbs. |
| GTIN Code | 889545068375 |
| Sold in Quantity | Each |
