Wilwood 270-11032 Front Hub, 1955-57 Chevy, 5 x 4.50/4.75
Wilwood 270-11032 Front Hub, 1955-57 Chevy, 5 x 4.50/4.75

Wilwood 270-11032 Front Hub, 1955-57 Chevy, 5 x 4.50/4.75

Aluminum, 5 x 4.50" Hub Bolt Circle 1, 5 x 4.75" Hub Bolt Circle 2, 8 x 7.00" 8-Bolt Type

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 270-11032 Front Hub, 1955-57 Chevy, 5 x 4.50/4.75
Wilwood 270-11032 Front Hub, 1955-57 Chevy, 5 x 4.50/4.75
Wilwood 270-11032 Front Hub, 1955-57 Chevy, 5 x 4.50/4.75
Wilwood 270-11032 Front Hub, 1955-57 Chevy, 5 x 4.50/4.75
X
Wilwood 270-11032 Front Hub, 1955-57 Chevy, 5 x 4.50/4.75
Wilwood 270-11032 Front Hub, 1955-57 Chevy, 5 x 4.50/4.75
Zoomed In Image
Part # 83527011032
Save 7%
$124.93
$134.93
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Wheel Bolt Pattern (in.):
5x4.5 in. | 5x4.75 in.
Material Type:
Aluminum
Finish:
Natural
Hub Bolt Circle 1:
5 x 4.50"
Hub Bolt Circle 2:
5 x 4.75"
Adapter Bolt Circles (6-bolt):
6 x 6.25
8-Bolt Type:
8 x 7.00"
Mount Type:
Adapter
Stud Diameter:
1/2-20"
Stud Diameter 2:
1/2-20"
Stud Diameter 3:
1/2-20"
Offset:
0.81"
Rotor Compatibility:
5 x 3.88"
Weight:
3.5 lbs.
MFG. Part #:
270-11032
GTIN Code:
889545068351
Sold in Quantity:
Each

Info

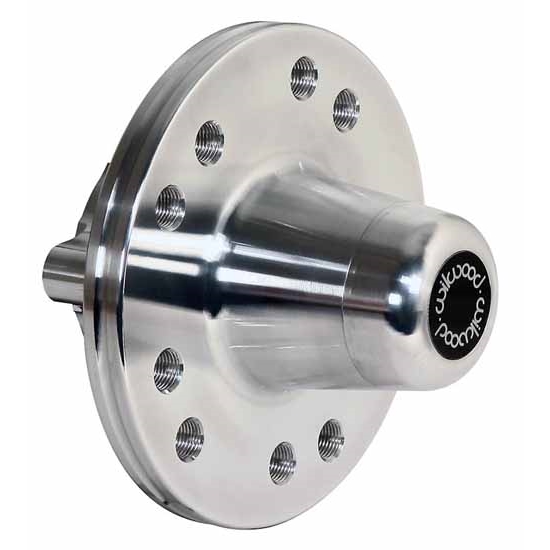

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are double drilled for both 5 on 4.50" up 5 on 4.75" wheel lug patterns. Hubs include bearing races and screw-on aluminum caps.

Dimensions Sheet (PDF)

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
