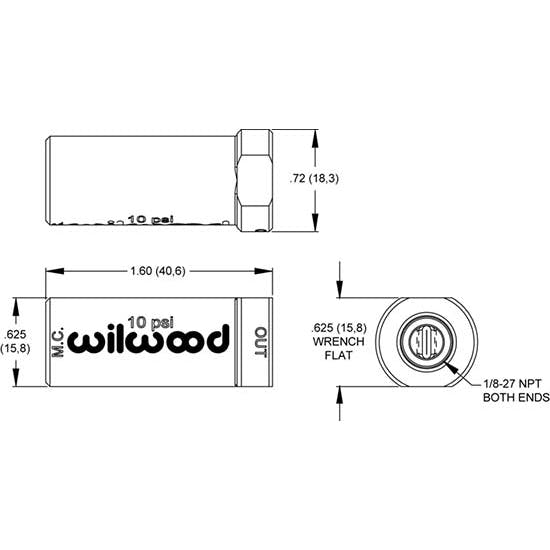

Wilwood 260-13784 Red 10 PSI Residual Pressure Valve with Fittings
- Features a 1/8-27 NPT inlet/outlet
- Made from billet aluminum and red anodized for easy identification
- These valves retain a minimum brake line pressure to help eliminate excessive pedal travel
$25.11
/each
In Stock
$27.12
Save $2.01
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 10 psi Pressure Rating, Red
- Features a 1/8-27 NPT inlet/outlet
- Made from billet aluminum and red anodized for easy identification
- These valves retain a minimum brake line pressure to help eliminate excessive pedal travel
- it is 10 PSI for drum brake systems to compensate for return spring tension and maintain wheel cylinder sealing in the drums
Key Specs
| MFG. Part # | 260-13784 |
| Pressure Rating | 10 psi |
| Inlet Fitting | 3/8"-24 I.F. Female |
| Outlet Fitting | 3/8"-24 I.F. Female |
| Material Type | Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 260-13784 Details
Wilwood 260-13784 Details
Residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel. This residual pressure valve is 10 PSI for drum brake systems to compensate for return spring tension and maintain wheel cylinder sealing in the drums. This residual pressure valve is billet aluminum and red anodized for easy identification.
- 10 PSI
- 1/8-27 NPT Inlet/Outlet
- Red anodized
- Aluminum
- Sold each
Learn more about the proper uses of residual valves by reading our tech article. Brake System Selection.
Charts
Guides & Documents
Wilwood 260-13784 Specifications
Wilwood 260-13784 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 260-13784 |
| Brand | Wilwood |
| Pressure Rating | 10 psi |
| Inlet Fitting | 3/8"-24 I.F. Female |
| Outlet Fitting | 3/8"-24 I.F. Female |
| Material Type | Aluminum |
| GENERAL | |
| Color | Red |
| GTIN Code | 889545074796 |
| Notes | Use 10 PSI for drum brake applications. |
| Sold in Quantity | Each |
Ratings & Reviews
4.9
26 Reviews
Customers highly appreciate the product for its quality, practicality, and simple installation process. They note that it provides a firm pedal feel, particularly effective in vehicles with both front disc and rear drum brakes. A notable benefit is the product's ability to improve the braking system of older vehicles. Customers also emphasize the value of the included fittings, its influential role in a front disc conversion while leaving the rear drums, and how effective it is in keeping the fluid in brake lines. The product has often solved problems for users, outpacing house brands in quality and cost-effectiveness, leading to their intention to purchase it repeatedly. Overall, customers trust this product and appreciate the technical service provided.
Ratings & Reviews
4.9
26 Reviews
Customers highly appreciate the product for its quality, practicality, and simple installation process. They note that it provides a firm pedal feel, particularly effective in vehicles with both front disc and rear drum brakes. A notable benefit is the product's ability to improve the braking system of older vehicles. Customers also emphasize the value of the included fittings, its influential role in a front disc conversion while leaving the rear drums, and how effective it is in keeping the fluid in brake lines. The product has often solved problems for users, outpacing house brands in quality and cost-effectiveness, leading to their intention to purchase it repeatedly. Overall, customers trust this product and appreciate the technical service provided.
4.9
26 reviews
5
24
4
2
3
0
2
0
1
0
Filter by Ratings
Yes
5.0
a month ago
Zinger
Omaha
Verified
Used this keep the fluid from coming back to the master cylinder because it being lower than the wheels
Would Recommend
Yes
5.0
6 months ago
Rocket
Mn
Verified

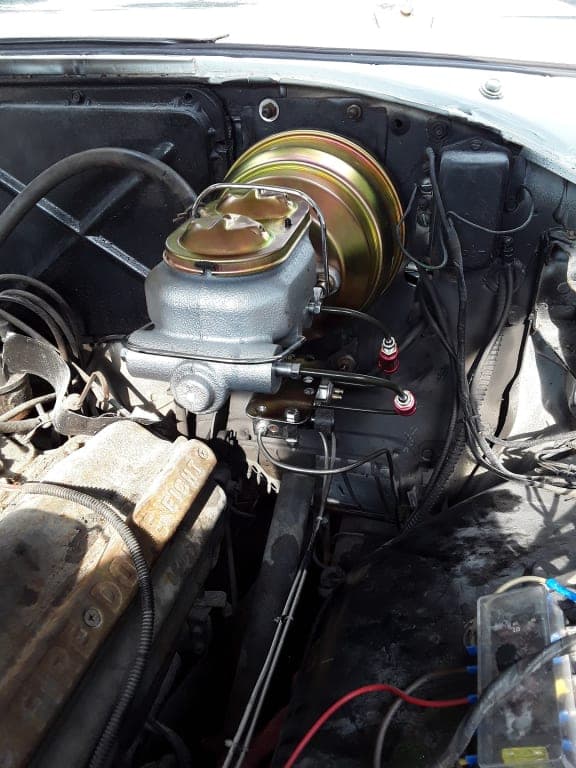

I installed my MC under the floor so I used these to help keep min. Pressure to the drums and keep the fluid from back flowing
Would Recommend
Yes
5.0
a year ago
Sam
San Jose
Verified
Works as intended
Would Recommend
I would buy these again.
5.0
2 years ago
Artie
Bristol,Tn.
Verified
Seems like a good valve. Time will tell.
Would Recommend
Worked great.
5.0
2 years ago
None
None
Verified
Add additional fittings in case your brake line is larger or smaller.
Would Recommend
Works great on my Model A Speedster
5.0
3 years ago
777 Driver
Madison, MS
Verified
Simple to install
Would Recommend
Its a Residual pressure valve
5.0
3 years ago
John
Gilbert AZ
Verified
Its a valve that goes in a brake line. Nothing fancy.
Would Recommend
worked out perfect
5.0
3 years ago
td
nebraska
Verified
fit perfect quality piece
Would Recommend
BRAKE BOOSTER
5.0
4 years ago
FRANK
WORCESTER,MA
Verified
NO ISSUES AND WORKS FINE ON 1955 DESOTO FIREDOME
Would Recommend

Will buy again
5.0
4 years ago
Bob
Ia
Verified
They have always worked great. Will buy again
