#8351709493

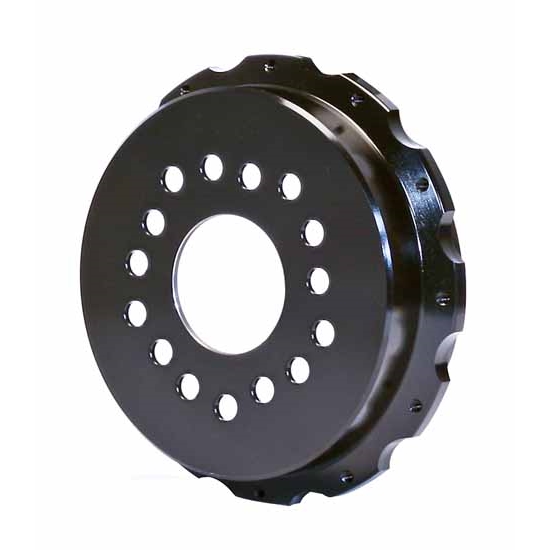

Wilwood 170-9493 Parking Brake Hat, 1.95 Inch Offset, 5-Lug
$207.74
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 14th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 1.95" Offset, 6.85" Outside Diameter
See more details
Key Specs
| Brand | Wilwood |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
These premium grade cast iron hats are used with Wilwood's internal shoe parking brake kits. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.
Specifications
Specifications
| KEY SPECS | |
|---|---|
| Brand | Wilwood |
| GENERAL | |
| Offset | 1.95" |
| Outside Diameter | 6.85" |
| Inside Diameter | 3.06" |
| Rotor Hat Bolt Pattern | 12 x 8.75" |
| Weight | 10.00 lbs. |
| Material Type | Iron |
| Finish | EDP Coated |
| Hat Mount Style | Fixed Mount |
| Hat Mount Hole Type | Threaded |
| Hat Bolt Circle 2 | 5 x 4.75 |
| Hat Bolt Circle 3 | 5 x 5.00 |
| Hat Bolt Circle 1 | 5 x 4.50 |
| Mount Hole Size | 1/4-28 |
| Shoe Inside Dimension | 7.23" |
| Face Thickness | 0.18" |
| Stud Diameter | 0.52" |
| Stud Diameter 2 | 0.52" |
| Stud Diameter 3 | 0.52" |
| GTIN Code | 889545042818 |
| Color | Black |
