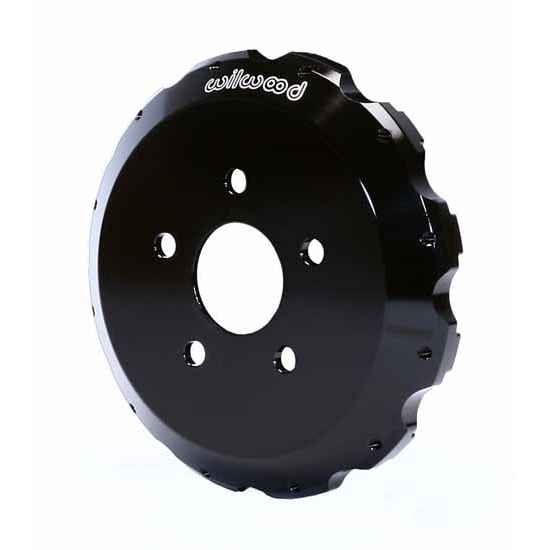

Wilwood 170-6990 Front Big Brake Hat, Subaru WRX, Flared Bell
Wilwood 170-6990 Front Big Brake Hat, Subaru WRX, Flared Bell

Wilwood 170-6990 Front Big Brake Hat, Subaru WRX, Flared Bell

Universal Fit, 1.10" Offset, 7.02" Outside Diameter, 2.29" Inside Diameter, 2.10 lbs. Weight

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 170-6990 Front Big Brake Hat, Subaru WRX, Flared Bell
Wilwood 170-6990 Front Big Brake Hat, Subaru WRX, Flared Bell
Wilwood 170-6990 Front Big Brake Hat, Subaru WRX, Flared Bell
Wilwood 170-6990 Front Big Brake Hat, Subaru WRX, Flared Bell
X
Wilwood 170-6990 Front Big Brake Hat, Subaru WRX, Flared Bell
Wilwood 170-6990 Front Big Brake Hat, Subaru WRX, Flared Bell
Zoomed In Image
We estimate this item will ship on or before September 22nd.
Part # 8351706990
Save 7%
$157.95
$170.58
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Offset:
1.10"
Outside Diameter:
7.02"
Inside Diameter:
2.29"
Rotor Hat Bolt Pattern:
12 x 8.75"
Weight:
2.10 lbs.
Material Type:
Aluminum
Finish:
EDP Coated
Hat Mount Style:
Fixed Mount
Hat Mount Hole Type:
Threaded
Hat Bolt Circle 1:
5 x 3.93
Mount Hole Size:
1/4-20"
Face Thickness:
0.27"
Stud Diameter:
0.52"
GTIN Code:
889545042436
Color:
Black

Info

GT Series Big Brake Flared Bell hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions.Flared Bell Hats are generally used with rotor mount bolt circles of 8.38" and larger. Offsets range from 1.88" to 3.00" for rotor diameters 12.19" and up.

Flared Bell Hats are generally used with rotor mount bolt circles of 8.38" and larger. Offsets range from 1.88" to 3.00" for rotor diameters 12.19" and up.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
