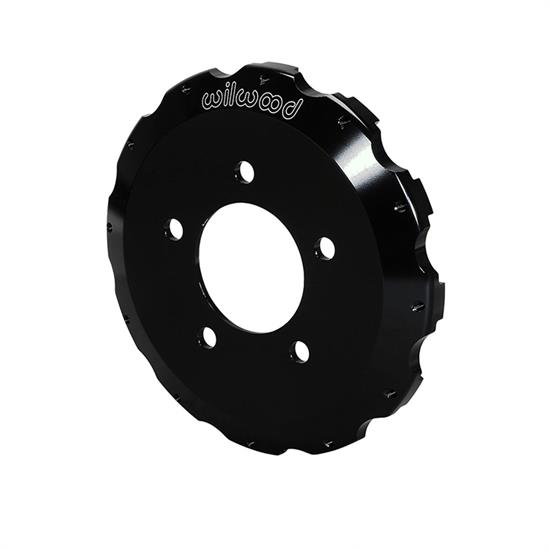

Wilwood 170-13066 Big Brake Hat - Short Offset
Wilwood 170-13066 Big Brake Hat - Short Offset

Wilwood 170-13066 Big Brake Hat - Short Offset

Universal Fit, 0.58" Offset, 12 x 8.25" Rotor Hat Bolt Pattern, 2.01 lbs. Weight, Aluminum

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 170-13066 Big Brake Hat - Short Offset
Wilwood 170-13066 Big Brake Hat - Short Offset
Wilwood 170-13066 Big Brake Hat - Short Offset
X
Wilwood 170-13066 Big Brake Hat - Short Offset
Zoomed In Image
We estimate this item will ship on or before October 29th.
Part # 83517013066
$277.09
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

MFG. Part #:
170-13066
Offset:
0.58"
Internal Clearance:
7.37"
Center Hole ID:
2.80"
Rotor Hat Bolt Pattern:
12 x 8.25"
Weight:
2.01 lbs.
Material Type:
Aluminum
Finish:
Black E-Coat
Hat Mount Style:
Fixed Mount
Hat Mount Hole Type:
Threaded
Hat Bolt Circle 1:
5 x 4.50
Face Thickness:
0.25"
Stud Diameter:
0.59"
GTIN Code:
889545042115

Info

GT Series Big Brake Short Offset hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions. Short Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.

Shallow Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
