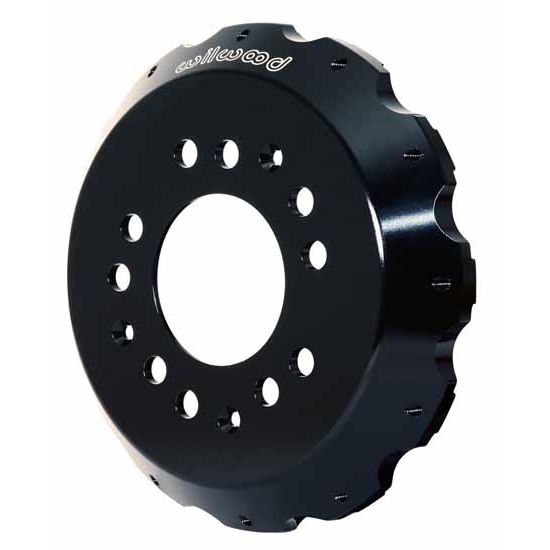

Wilwood 170-10231 Front Brake Hat, 1.20 Inch Offset, Flared Bell
$182.42
each
Factory Shipped
$182.43
Save $0.01
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 13th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 1.20" Offset, 6.86" Outside Diameter
See more details
Key Specs
| Brand | Wilwood |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
GT Series Big Brake Flared Bell hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions.Flared Bell Hats are generally used with rotor mount bolt circles of 8.38" and larger. Offsets range from 1.88" to 3.00" for rotor diameters 12.19" and up.
Flared Bell Hats are generally used with rotor mount bolt circles of 8.38" and larger. Offsets range from 1.88" to 3.00" for rotor diameters 12.19" and up.
Specifications
Specifications
| KEY SPECS | |
|---|---|
| Brand | Wilwood |
| GENERAL | |
| Offset | 1.20" |
| Outside Diameter | 6.86" |
| Inside Diameter | 3.06" |
| Rotor Hat Bolt Pattern | 12 x 8.75" |
| Weight | 1.90 lbs. |
| Material Type | Aluminum |
| Finish | EDP Coated |
| Hat Mount Style | Fixed Mount |
| Hat Mount Hole Type | Threaded |
| Hat Bolt Circle 2 | 5 x 4.75 |
| Hat Bolt Circle 1 | 5 x 4.50 |
| Mount Hole Size | 1/4-20 |
| Face Thickness | 0.25" |
| Stud Diameter | 0.52" |
| Stud Diameter 2 | 0.52" |
| GTIN Code | 889545041378 |
| Color | Black |
