#83517010040

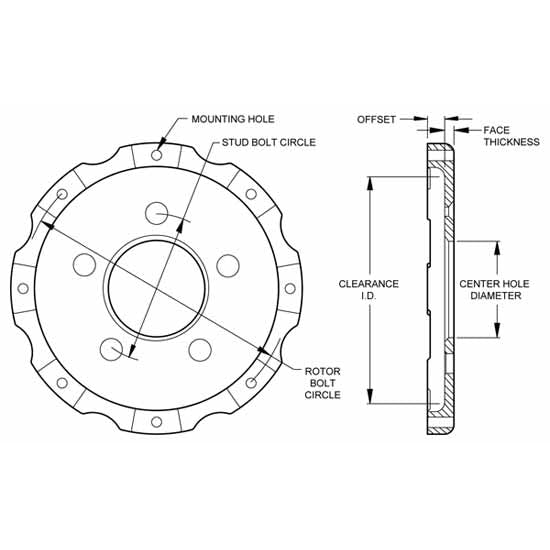

Wilwood 170-10040 Front Brake Drag Hat, .790 Inch Offset, 5 x 4.50
$173.42
/each
Factory Shipped
$180.96
Save $7.54
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#83517010040
$173.42
/each
Factory Shipped
$180.96
Save $7.54
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 170-10040 |
| Outside Diameter | 5.90" |
| Inside Diameter | 2.80" |
| Rotor Hat Bolt Pattern | 8 x 7.00" |
| Weight | 1.70 lbs. |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyShallow Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.
| KEY SPECS | |
|---|---|
| MFG. Part # | 170-10040 |
| Brand | Wilwood |
| Outside Diameter | 5.90" |
| Inside Diameter | 2.80" |
| Rotor Hat Bolt Pattern | 8 x 7.00" |
| Weight | 1.70 lbs. |
| Mount Hole Size | 5/16-18 |
| Material Type | Aluminum |
| Finish | EDP Coated |
| Color | Black |
| GENERAL | |
| Offset | 0.79" |
| Hat Mount Style | Fixed Mount |
| Hat Mount Hole Type | Threaded |
| Face Thickness | 0.25" |
| Sold in Quantity | Each |
| GTIN Code | 889545041316 |
