Product Summary

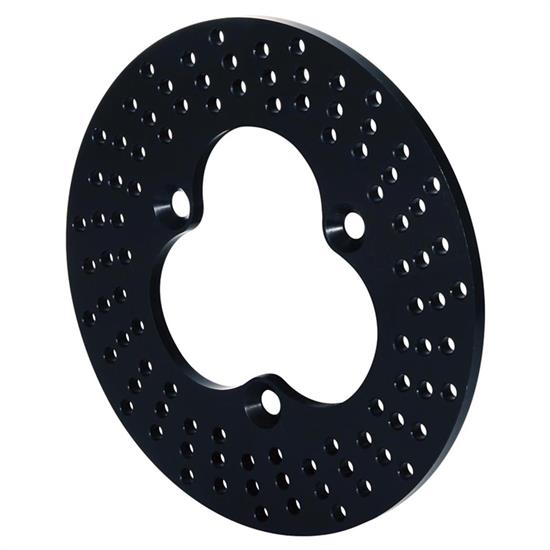

Front Position, Round Rotor Shape, Solid Rotor Type

  • Made from lightweight, yet durable aluminum with a black E-coat finish for added protection
  • Designed specifically for Dirt Sprint & Midget applications
  • The drill slot pattern combines the highest degree of weight reduction and resistance to thermal distortion
  • Engineered to give you smooth engagement and a consistent full pedal feel
  • A full symmetrical machining provides perfect balance, perfect flatness and truest rotation

Key Specs

PositionFront
Rotor ShapeRound
Rotor Diameter10.20 Inch
Rotor TypeSolid
Rotor StyleDrilled

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Wilwoods 3 hole mount rotors are precision CNC machined from high strength billet plate. Full symmetrical machining provides perfect balance, perfect flatness and the truest rotation of any rotor being built. These rotors fit the popular 3 x 5.00" mount bolt circle found on most sprint and midget front hubs. Wilwoods engineered drill slot pattern combines the highest degree of weight reduction with the highest resistance to thermal distortion in the contact faces. You get smooth engagement and a consistent full pedal from the low knock-back characteristics of this design. A durable black anodized finish prevents corrosion and simplifies the visual inspection of the contact faces. The best results are always achieved using PolyMatrix Q compound brake pads with these rotors.
  • Unsafe for street use & unsuitable for most forms of Racing.
  • Special racing application only. IE. Dirt Sprint & Midget.
  • Can result in catastrophic failure when misused.

Item Details

0.32 x 10.20
3 x 5" B.C.

Application

Note: Unsafe for street use & unsuitable for most forms of racing except dirt Sprints & Midgets.

Specs

  • Solid aluminum
  • Front mounted
  • Threads:  Thru
  • Face: drilled

Rotor Dimensions Diagram

Specifications

KEY SPECS
MFG. Part #160-3411
BrandWilwood
PositionFront
Rotor ShapeRound
Rotor Diameter10.20 Inch
Rotor TypeSolid
Rotor StyleDrilled
Rotor Material TypeAluminum
GENERAL
Rotor FinishBlack E-Coat
ColorBlack
Rotor Thickness0.31"
Vane CountNone
Rotor Hat Bolt Pattern3 x 5.00"
BeddedNo
BalancedNo
Lug ID3.88"
Weight1.6 lbs.
Sold in QuantityEach
GTIN Code889545039467
