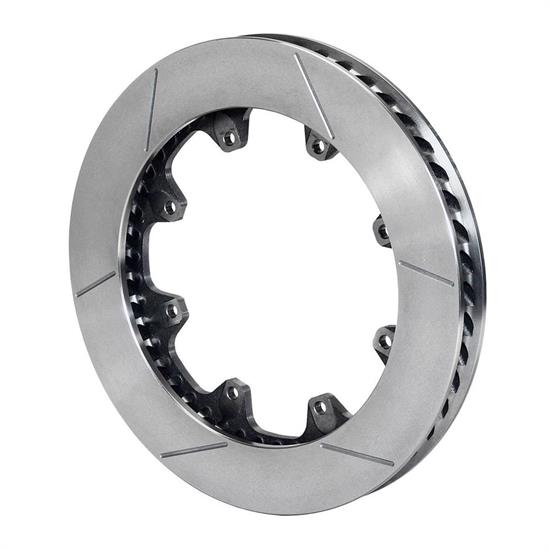

Wilwood 160-13499 GT 48 LW SPC 37 Curved Vane RH Rotor, 11.75 x 1.21
$138.58
each
Factory Shipped
$138.59
Save $0.01
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 19th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Right Position, Round Rotor Shape, Plain
See more details
Key Specs
Position | Right |
Rotor Shape | Round |
Rotor Diameter | 11.75 Inch |
Rotor Type | Vented |
Rotor Style | Slotted |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 160-13499 Details
Wilwood 160-13499 Details
Wilwood's GT 48 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.
- Spec-37 Castings
- Suitable for high temperature racing to street use.
Wilwood 160-13499 Specifications
Wilwood 160-13499 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 160-13499 |
Brand | Wilwood |
Position | Right |
Rotor Shape | Round |
Rotor Diameter | 11.75 Inch |
Rotor Type | Vented |
Rotor Style | Slotted |
Rotor Material Type | Spec-37 Iron |
GENERAL | |
Speedway Motors Catalog Part # | 835-16013499 |
Rotor Finish | Plain |
Rotor Thickness | 1.21" |
Vane Count | 48 Curved Vane |
Rotor Hat Bolt Pattern | 8 x 7.00" |
Bedded | No |
Balanced | Yes |
Lug ID | 6.38" |
Inside Diameter | 8.34" |
Weight | 10.4 lbs. |
Sold in Quantity | Each |
GTIN Code | 889545039047 |
