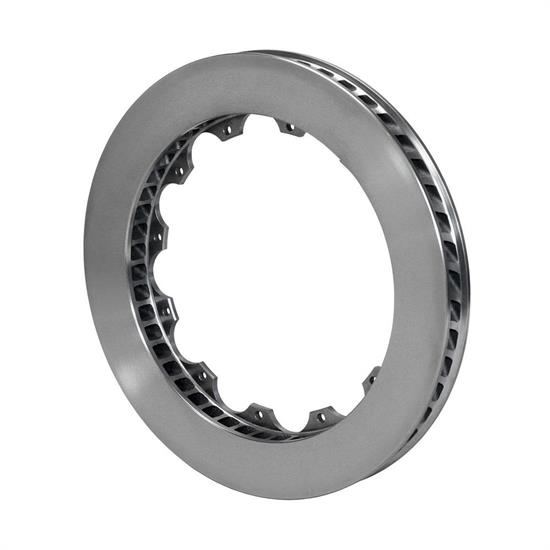

Wilwood 160-12785 HD 48 Curved Vane Spec 37 Iron Rotor, 12.88 Inch
Wilwood 160-12785 HD 48 Curved Vane Spec 37 Iron Rotor, 12.88 Inch
Universal Fit, Left Position, Round Rotor Shape, 12.88 Inch Rotor Diameter, Vented Rotor Type
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 160-12785 HD 48 Curved Vane Spec 37 Iron Rotor, 12.88 Inch
X
We estimate this item will ship on or before September 22nd.
Part # 83516012785
$202.74
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Position:
Left
Rotor Shape:
Round
Rotor Diameter:
12.88 Inch
Rotor Type:
Vented
Rotor Style:
Plain Face
Rotor Material Type:
Spec-37 Iron
Rotor Finish:
Plain
Rotor Thickness:
1.25"
Vane Count:
48 Curved Vane
Rotor Hat Bolt Pattern:
12 x 8.75"
Bedded:
No
Balanced:
Yes
Lug ID:
8.25"
Inside Diameter:
9.46"
Weight:
11.7 lbs.
MFG. Part #:
160-12785
Sold in Quantity:
Each
GTIN Code:
889545038651
Info
Wilwood's HD 48 Curved Vane Spec-37 rotors are are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.
- Spec-37 Heavy wall Castings
- Suitable for high temperature racing to street use.
Important Messages:
- This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
